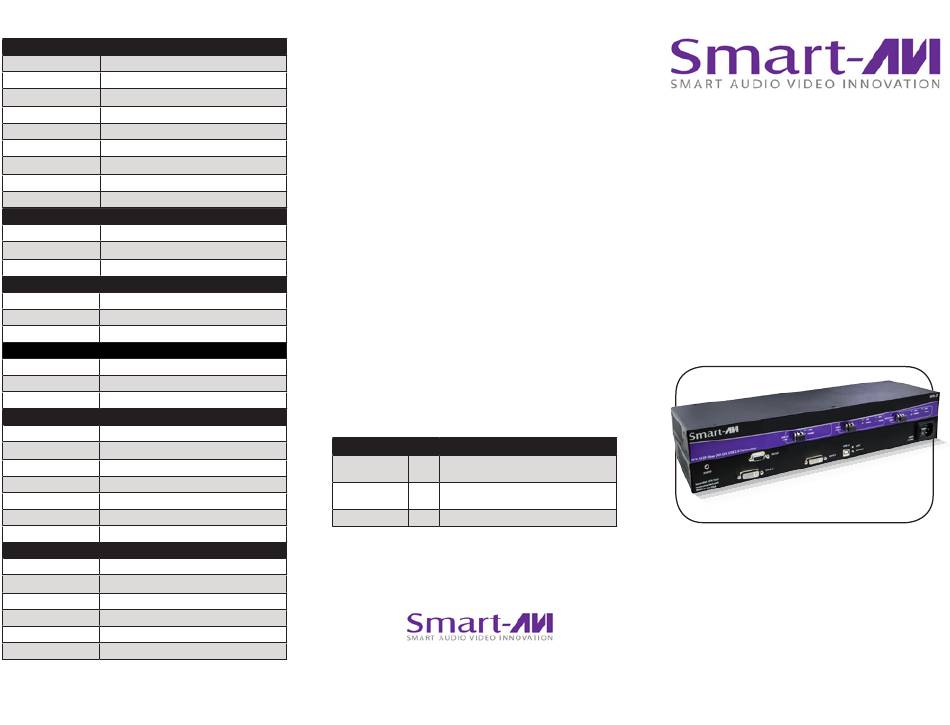

SMART-AVI SFX-2P-TX Installation Manual

Technical Specifications

DVI-D VIDEO
Format DVI-D Single Link
Maximum Pixel Clock 165 MHz
Input Interface (TX) (2) DVI-D 29-pin (Female)
Output Interface (RX) (2) DVI-D 29-pin (Female)
Resolution Up to 1920 x 1200 @60Hz
DDC 5 volts p-p(TTL)
Input Equalization Automatic
Input Cable Length Up to 20 ft.
Output Cable Length Up to 20 ft.
USB
Signal Type EHCI (USB 2.0) and OHCI/UHCI (USB 1.1)
Input Interface (TX) (1) USB Type B (Female)
Output Interface (RX) (4) USB Type A (Female)
AUDIO
Signal Type Stereo Unbalanced
Input Interface (TX) 3.5 mm Jack Socket (Female)
Output Interface (RX) 3.5 mm Jack Socket (Female)
RS232
Input Interface (TX) DB9 (Female)
Input Interface (RX) DB9 (Male)
Speed Up to 115 Kbps
OPTICAL
Fiber Type Duplex, multi mode
Connector Type Duplex LC
Wavelength 1310 nm/1550 nm (Dual wavelength)
Data Rate 2x2.5 Gbps (2.5 Gbps per single wavelength)
Transmission Power -5 dB Min.
Receiver Sensitivity -21 dB Max
Distance 500 m Max.
OTHER
Power Internal 100-240 VAC
Dimensions 17 in W x 1.75 in H x 7 in D
Weight 8 lbs.
Operating Temp. 0-55 °C (32-131°F)
Storage Temp. -20-85 °C (-4-185 °F)
Humidity Up to 95%
© Copyright 2012 Smart-AVI, All Rights Reserved
NOTICE
T h e i n f o r m a t i o n c o n t a i n e d i n t h i s d o c u m e n t
is subject to change without notice. Smart-AVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for any particular purpose.
Smart-AVI will not be liable for errors contained herein or for
incidental or consequential damages in connection with the
furnishing, performance or use of this material.
No part of this document may be photocopied, reproduced or
translated into another language without prior written consent
from Smart-AVI.
For more information, visit www.smartavi.com.
What's in the Box?
PART NO. QTY DESCRIPTION
SFX-2P-TX 1 2-Port DVI-D + USB2.0 + Audio + RS232 Ex-
tender Transmitter
SFX-2P-RX 1 2-Port DVI-D + USB2.0 + Audio + RS232 Ex-
tender Receiver
CCPWR06USA 2 6 ft. Power Cable
SmartAVI, Inc. / Twitter: smartavi
11651 Vanowen St. North Hollywood, CA 91605
Tel: (818) 503-6200 Fax: (818) 503-6208
http://www.SmartAVI.com
Installation
Manual
SFX-2P
2-Port DVI-D, USB 2.0, Audio and
RS232 Fiber Extender
