Sage the Smart Grinder Pro BCG820/SCG820 - Electric Coffee Grinder Manual

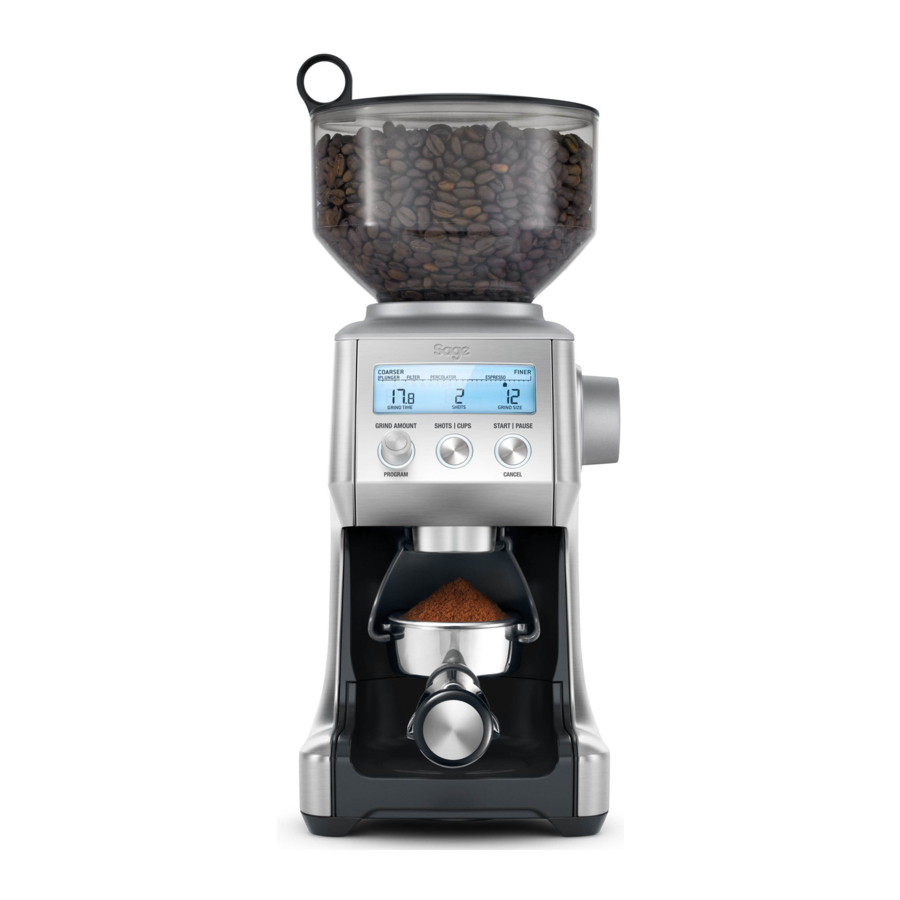

GETTING TO KNOW YOUR NEW APPLIANCE

1. Bean Hopper Lid
2. Bean Hopper
3. Hardened Stainless Steel Conical Burrs
4. Backlit LCD Screen
5. GRIND AMOUNT / PROGRAM Dial
6. SHOTS / CUPS Button
7. Grind Outlet
8. Grind Tray
9. Grind Size Dial
10. START / PAUSE / CANCEL Button
11. Portafilter Activation Switch

ACCESSORIES

12. Portafilter Cradle 50–54mm
13. Portafilter Cradle 58mm
14. Conical Burr Cleaning Brush
15. Grinds Container Oi - Container Cap Oii - Container Lid

BEFORE FIRST USE

Remove and safely discard all promotional labels and packing materials attached to your Sage^® product.

Wash hopper, cradles, grind container, container lid and cleaning brush in warm soapy water and dry thoroughly. Wipe exterior of grinder with a soft damp cloth and dry thoroughly. Place grinder on flat level surface and plug power cord into 220–240V outlet and switch Power 'ON'.

ENERGY SAVING FEATURE
The grinder will automatically switch off if not used after 5 minutes.

ASSEMBLING YOUR SAGE SMART GRINDER^™ PRO

Bean Hopper
Align tabs on the base of the bean hopper and insert hopper into position. Turn the bean hopper dial 90° to lock into position. Fill with fresh coffee beans and secure lid on top of bean hopper.

GRINDING FOR ESPRESSO COFFEE

Use single wall filter baskets when grinding fresh coffee beans. Use the finer 1–30 settings in the ESPRESSO range.

STEP 1:
Insert the appropriate portafilter cradle size. Insert your portafilter into the cradle.

NOTE
Maximum number of shots with the cradle inserted is 2.

COFFEE CHART

STEP 2:
Selecting your SHOTS / CUPS
Select the desired amount of ground coffee required by pressing the SHOTS / CUPS button.

Rotate the Grind Amount Dial to adjust the grinding time to achieve the correct amount of coffee.

STEP 3:
Select your grind size
For espresso, we recommend selecting Grind Size setting 12 as a starting point and moving the Grind Size dial Coarser or Finer to adjust the flow of espresso as required.

NOTE
If the Grind Size Dial is tight, run the grinder by pressing the START / PAUSE / CANCEL button while turning the Grind Size Dial. This will release coffee grounds caught between the burrs.

GRINDING INTO GRINDS CONTAINER OR COFFEE FILTER

STEP 1:
Remove cradle by sliding out from under the grind outlet.

Slide in grinds container with cap open or coffee filter directly under grind outlet.

• Select the required amount of ground coffee by pressing the SHOTS / CUPS button.
• Press the START / PAUSE / CANCEL button to start grinding operation.


FEATURES OF YOUR SAGE SMART GRINDER™ PRO

Automatic Grinding

Grinding automatically allows you to grind hands-free.

• Press and release either the START / PAUSE / CANCEL button or push the handle of your portafilter once. This will activate the PORTAFILTER SWITCH.
• Grinding will automatically stop when the preset amount is dispensed.


PRESS & RELEASE

NOTE
Programming a custom grind amount/time only sets it for that particular brew method. This will not change the other Shots or Cups settings.

Pause Function
You can pause the grinder during operation allowing you to collapse or settle the coffee in the portafilter.

• Press and release the START / PAUSE / CANCEL button to start the grinding operation.
• During grinding, press the START / PAUSE / CANCEL button again to pause the operation for 10 seconds.
• Press again within this time to resume grinding the remaining dose.


Program Function
Once you have set your required dose, you can program this time into the number of shot(s) currently displayed on the LCD. Press and hold the PROGRAM button, grinder will beep twice to confirm. Only the shot displayed will be programmed, all other shots will remain unchanged.

Manual Grinding

Grinding manually allows you to have complete control over how much coffee is dispensed.

• Press and hold either the START / PAUSE / CANCEL button or push the handle of your portafilter to activate the PORTAFILTER SWITCH for as long as you require.
• Release START / PAUSE / CANCEL button or PORTAFILTER SWITCH and grinding will stop.


ADJUSTING YOUR GRIND AMOUNT

Increasing the Grind Amount
To increase the grind amount selected, turn the GRIND AMOUNT dial to the right.

Decreasing the Grind Amount
To decrease grind amount selected, turn the Grind Amount Dial to the left.

NOTE
To RESET the grind amount/time to the default settings, press and hold the SHOTS / CUPS button until a long beep sounds.

OPERATING YOUR NEW APPLIANCE

ADJUSTING CONICAL BURRS

Some types of coffee may require a wider grind range to achieve an ideal extraction or brew.
A feature of your Smart Grinder™ Pro is the ability to extend this range with an adjustable upper burr. We recommend making only one adjustment at a time.

CARE, CLEANING & STORAGE

1. Empty beans from the hopper and grind out any excess beans (see below).
2. Unplug power cord from power outlet before cleaning.
3. Wash the grind container and lid, bean hopper and lid in warm soapy water, rinse and dry thoroughly.
4. Wipe and polish exterior of appliance with a soft damp cloth.

NOTE
Do not use alkaline or abrasive cleaning agents, steel wool or scouring pads, as these can damage the surface.

NOTE
Please do not clean any grinder parts or accessories in the dishwasher.

CLEANING CONICAL BURRS

Regular cleaning helps the burrs achieve consistent grinding results which is especially important when grinding for espresso coffee.

TROUBLESHOOTING
