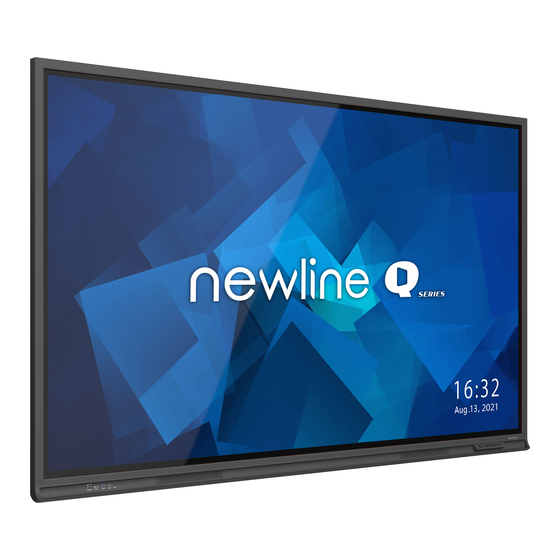

NewLine Q Series Cheat Sheet

Turning On the Display
1. Press the Power button on the bottom right side of the display.
2. The button will change color from red to blue once the display is powered on.
The Front Ports
There are five ports located on the bottom left-hand side of the front of the panel:
USB Touch, HDMI, USB 3.0, USB Type-C with 65 watts power delivery, and mic-in.
Switching Sources
1. Any device currently connected to the display will light up in white in the Source
Preview window on the home screen.
2. Tap the icon of the Source you want to switch to.
3. The Source Preview window will show a preview of what is currently on the screen
of that connected device.
4. Tap the icon of the Source a second time or tap the Preview window and you will
be taken to that source.
5. Plugging your device into the front ports will automatically bring up the device on
screen.
Q Series Cheat Sheet
Connecting a Computer
Connecting a Computer with USB-C
1. You will need a USB Type-C cable to connect a computer.
2. Plug in one end of the USB-C cable into the front or side USB-C port.
3. Take the other end of the USB-C port and plug it into the USB-C port on your
computer.
4. Once both cables have been plugged into the display and the computer, the
matching port should turn white on the Source Preview on the Home Screen.
Front Ports with USB Type-C cable connected.
Connecting a Computer with USB & HDMI
1. You will need an HDMI cable and a USB A to B cable to connect a computer.
2. On the front or side ports of the Q Series, plug in one end of the HDMI cable into
one of the HDMI ports.
3. Take the other end of the HDMI port and plug it into the HDMI port on your
computer.
4. Plug in the USB-B end of the USB cable into one of the front or side ports labeled
"USB Touch."
5. Take the USB-A end of the USB cable and plug it into the USB port on your
computer.
6. Once both cables have been plugged into the display and the computer, the
matching port should turn white on the Source Preview on the Home Screen.
Front Ports with USB Type-B and HMDI cable
connected.
