- Page 1 Support > Downloads > Q series to download National Service Hotline: +1 888 233 0868 User Manual for detailed instruction manual. Newline Assistant Please visit our website (https://newline-interactive.com) and choose Support > Downloads > Q series to download the Newline Assistant installation package.

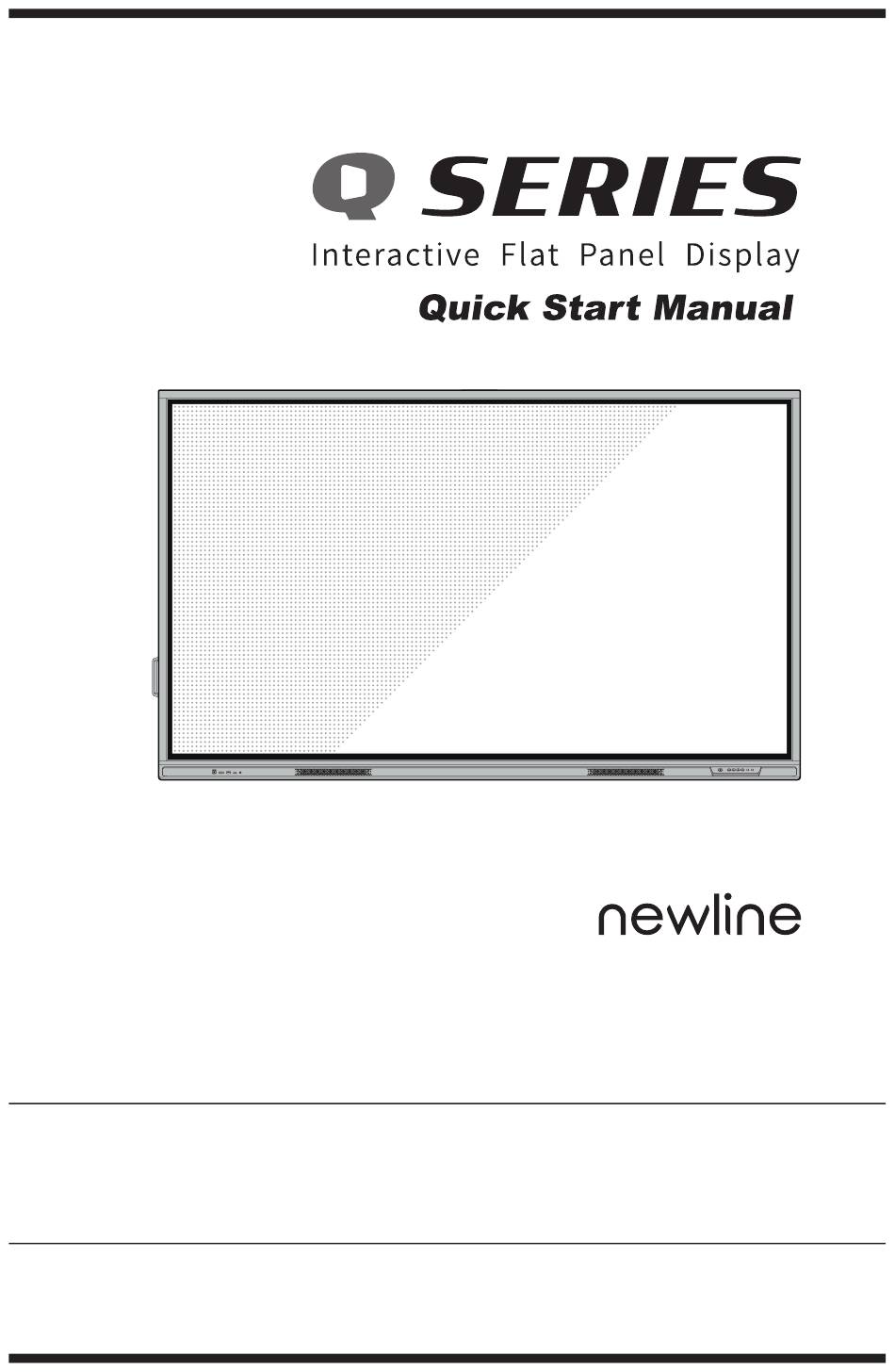

- Page 2 Welcome to the world of NEWLINE. Safety Instruction Thank you for choosing the NEWLINE Q series Interactive For your safety, please read the following instruction before Flat Panel Display. Please use this document to get the most you use the product. Serious injury or property damage may out of your screen.
- Page 3 Keep the product away from the radio. Do not put items on the top of the product. The product complies with the international EMI Do not put items, such as a container for liquid standard to prevent radio interference. However, (a vase, flowerpot, cosmetics or liquid medicine) interference may still exists and causes noise on the top of the product.
- Page 4 Parts and Functions ront View Rear View Power Switch Note The product images shown are for illustration purposes only and may not be an exact representation of the product. Ports CAUTION Front USB ports and rear USB 3.0/USB 2.0 ports switch connections based on signal sources. If the current signal source is reading the data from an external product connecting to the port, please switch the signal source after the data reading is complete.
- Page 5 WARNING The rear power output port is supplies 5 V/2 A (maximum) Go to the Home Page power. Please contact Newline to purchase the power AC adapter for powering external devices. Please do not Directional Pad connect any products which require power than listed.
- Page 6 Installation Guide Safety Precautions When using the wall-mount bracket, ensure that the wall 1.Installation Environment can support the weight of the product. We recommend that the wall surface be reinforced and have a loading capacity 4 times of the weight of the product. Consult a professional installer for wall-mount installation.
- Page 7 Installing the Wi-Fi Module 65": 600 mm (23.62 in) CAUTION Wi-Fi Module does not support hot plugging. Therefore, you must insert or remove the Wi-Fi Module when the display is powered off. Otherwise, the display or Wi-Fi Module may be damaged. Perform the following steps to install the Wi-Fi Module.
- Page 8 Power On/Off Operating Power On Profile Logon Step 1: Ensure the power cable is fully seated into the panel When the panel is powered on, system will show all the and wall outlet before powering on the panel. registered accounts, tap the icon to enter the 6 digits Please confirm your wall outlet supports a power range of passkey which is set when you first time operating the...
