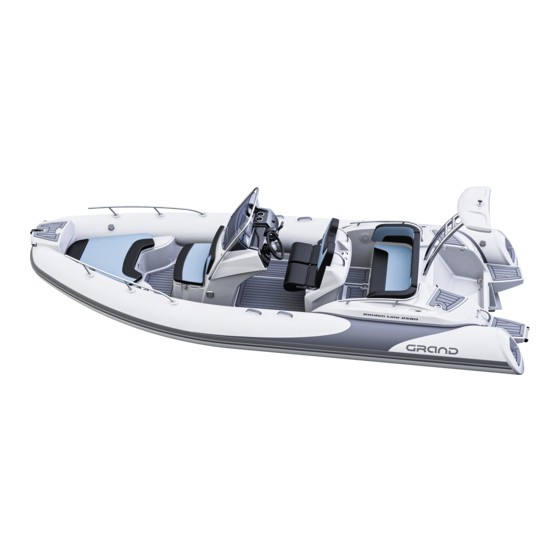

Summary of Contents for Grand Golden Line G580

  • Page 2 CONTENTS...
  • Page 4 CONTENTS Edition 8/April 2023...

  • Page 5: Table Of Contents

    Stability and buoyancy ....................18 Engine information ....................18 Risk of flooding and stability ..................19 Risk of fire or explosion .................... 23 Fire prevention ......................23 Fuel system ......................24 Before fueling ......................26 While fueling ......................27 Golden Line G580 Owner’s Manual...
  • Page 6 TABLE OF CONTENTS Fire-fighting equipment .................... 28 Electrical systems - safety rules ................. 30 Battery ........................31 Man-overboard prevention and recovery ..............32 Means of reboarding ....................33 Safety equipment ..................... 34 Safety driving rules ....................36 BOAT IDENTIFICATION ................40 Boat’s identification number ..................
  • Page 7 Battery isolator switch ....................57 Lifting eyes ......................62 Components of a boat ....................63 Anchoring, mooring and towing ................. 78 Anchoring ........................ 78 Mooring. Bow cleats ....................79 Mooring. Rear cleats....................80 Towing ........................81 Beaching ......................... 83 Golden Line G580 Owner’s Manual...
  • Page 8 TABLE OF CONTENTS TECHNICAL INFORMATION ............... 84 Technical specification ....................84 Standard and optional equipment ................86 Compartment chart ....................88 General arrangement of a boat ................. 89 Steering console components ..................91 General view of a boat ..................... 93 Electrical schematic diagrams ..................
  • Page 9 Boat towing ......................111 RESPECTING THE ENVIRONMENT ............112 GRAND’S WARRANTY ................113 General ......................... 113 Warranty period ..................... 113 Warranty coverage ....................114 Warranty exclusions ....................115 Warranty certificate ....................116 FOR YOUR NOTES ................... 117 Golden Line G580 Owner’s Manual...

  • Page 10: Safety Information

    INTRODUCTION Thank you for choosing a Grand boat. If you need assistance or advice please contact your Grand Dealer or Distributor who has qualified specialists, special tools, original spare parts and accessories and will be happy to assist. and is not intended...

  • Page 11: Precautionary Symbols

    Please note that in some countries a boat operating license or other form of authorization may be required. We strongly recommend that your boat is inspected at least once a year by an authorized Grand agent. Golden Line G580 Owner’s Manual...
  • Page 12 Data sheets and specifications given in this manual relate to the boat's characteristics at the time of publishing. Grand reserve the right to introduce changes in specifications and equipment without notice and without obligation. We continually work with our customers to improve quality and to ensure you will be completely satisfied with your Grand boat.

  • Page 13: General Information

    SAFETY GENERAL INFORMATION Name of craft Manufacture: GRAND MARINE. Model: G580. According to the Recreational Craft Directive 2013/53/EU of the European Parliament and of the Council of 20 November 2013, which is in force, your boat has design category: C, i.e., the craft is designed to operate in the following conditions: Wind (Beaufort scale) up to and including Force 6.

  • Page 14: Maximum Number Of Persons

    SAFETY MAXIMUM NUMBER OF PERSONS The Maximum number of people (adults + children) authorized to be on board according to design standards ISO 14946 and ISO 12217 is given in the technical data sheet in the “TECHNICAL INFORMATION” section. DO NOT EXCEED THE MAXIMUM RECOMMENDED NUMBER OF PEOPLE. REGARDLESS OF THE NUMBER OF PEOPLE ON BOARD, THE TOTAL WEIGHT OF PEOPLE AND EQUIPMENT MUST NEVER EXCEED THE MAXIMUM RECOMMENDED LOAD.

  • Page 15: Distribution Of Load

    2. THE CRAFT’S HANDLING WILL CHANGE SIGNIFICANTLY DEPENDING ON THE LOAD CARRIED. 3. BE PARTICULARLY CAREFUL WHEN ACCELERATING OR CHANGING DIRECTION. IT MAY BE NECESSARY TO ADJUST LOAD DISTRIBUTION AND TRIM WHEN NAVIGATION CONDITIONS OR THE CRAFT’S DIRECTION THROUGH WAVES CHANGE. Golden Line G580 Owner’s Manual...

  • Page 16: Loading Passengers

    SAFETY LOADING PASSENGERS Fig. 1. Recommended seating arrangement for 11 passengers.
  • Page 17 Following an accident and before using the craft again, make sure that it is examined by your dealer or a qualified technician and any defects are repaired. NEGLECTING REGULAR INSPECTIONS AND REPAIRS MAY LEAD TO A SERIOUS INJURY OR DAMAGE AND WILL REDUCE THE LIFE OF YOUR BOAT. Golden Line G580 Owner’s Manual...

  • Page 18: Stability And Buoyancy

    SAFETY STABILITY AND BUOYANCY The stability and buoyancy of the craft have been thoroughly assessed by the builder in compliance with the requirements of the Recreational Craft Directive 2013/53/EU. The craft builder guarantees that the boat meets all safety criteria during normal operating conditions. However, the person responsible for operating the craft must always keep in mind that the safety of the craft and crew should be their priority at all times and that conditions on the water can change suddenly with little prior notice.

  • Page 19: Risk Of Flooding And Stability

    The drainage system consists of cockpit drainage (two hoses with plugs + valves) and hull drainage (drain plug + bilge pump, which can operate in manual/automatic mode). Cockpit through- hull valves Fig. 2. The cockpit drain valves. Golden Line G580 Owner’s Manual...
  • Page 20 SAFETY COCKPIT DRAINAGE Cockpit drain plugs Fig. 3. Cockpit drain plugs. In water at rest In water in motion Out of water Cockpit drain plugs Closed Open Open WHEN THE BOAT IS ON LAND/DAVIT OR TRAILER, OPEN THE COCKPIT DRAIN PLUGS SO THAT WATER (RAINWATER, FOR INSTANCE) CAN EASILY DRAIN OUT OF THE BOAT THROUGH THE VALVES AND NO DAMAGE TO THE INTERNAL COMPONENTS (E.G.
  • Page 21 To drain the hull unscrew the plug (fig. 4). After removal refit and re-tighten (do not over- tighten) the plug before using the boat. WHEN THE BOAT IS ON LAND/DAVIT OR TRAILER, OPEN THE HULL DRAIN PLUG SO THAT WATER CAN EASILY DRAIN OUT OF THE BOAT. Golden Line G580 Owner’s Manual...
  • Page 22 SAFETY AUTOMATIC HULL DRAINAGE The automatic bilge pump serves to pump water out of the bilge area of the boat. The access to the bilge pump is provided through the opening panel of rear locker. THE BILGE PUMP SYSTEM IS NOT DESIGNED FOR DAMAGE CONTROL. BILGE PUMP SPECIFICATIONS Capacity 2.3 m /h (with zero head).

  • Page 23: Risk Of Fire Or Explosion

    − Check firefighting equipment at the intervals indicated on each item. Replace any used extinguisher with one of same type and rating − NEVER MODIFY ANY OF THE CRAFT’S SYSTEM UNLESS COMPETENT TO DO SO. Golden Line G580 Owner’s Manual...

  • Page 24: Fuel System

    SAFETY FUEL SYSTEM The fuel system consists of a fuel tank (the volume is given in the technical data sheet), sender and fuel level gauge (optional), filler neck, fuel cap with built-in air vent. Fuel filler cap Access to the top part of the fuel tanks, as well to the connections and fuel sensor is provided through the hatch located on the deck and fixed by the screws.
  • Page 25 These openings are located at the bow locker and rear storage compartments. Fig. 6. Ventilation opening on the bow Fig. 7. Ventilation openings on the rear locker. storage. DO NOT OBSTRUCT OR MODIFY THE VENTILATION SYSTEM AND VENTILATION OPENINGS. KEEP VENTILATION OPENINGS UNOBSTRUCTED AT ALL TIMES. Golden Line G580 Owner’s Manual...

  • Page 26: Before Fueling

    SAFETY BEFORE FUELING Check the engine manufacturer’s manual for information about the correct type of fuel be ▪ used for proper and long-term trouble-free operation. Turn off the engine. ▪ Turn off the ignition. ▪ Be sure to extinguish any open flames. ▪...

  • Page 27: While Fueling

    80% of its maximum capacity. If fuel is spilt on the hull, use an ordinary, non-abrasive cleaner then wipe with a damp cloth and rinse the area with clean water. NEVER FILL ANY FUEL TANK WHEN ENGINE IS RUNNING. Golden Line G580 Owner’s Manual...

  • Page 28: Fire-Fighting Equipment

    SAFETY FIRE-FIGHTING EQUIPMENT Most fires are caused by electrical problems or careless fueling. In case of fire, we recommend to stop the motor and turn off the battery switch. It is the owner/helmsman’s responsibility to have appropriate fire extinguishers in serviceable condition and readily accessible on board as prescribed by local requirements.
  • Page 29 BEFORE ALL PASSENGERS ARE FORCED TO LEAVE THE BOAT, CHECK THAT EVERYONE IS WEARING A LIFEJACKET. DUE TO THE FACT THAT BURNING FUEL MAY SPREAD OVER THE SURFACE OF THE WATER AND THE RISK OF EXPLOSION, TRY TO SWIM A SAFE DISTANCE AWAY FROM THE BOAT. Golden Line G580 Owner’s Manual...

  • Page 30: Electrical Systems - Safety Rules

    SAFETY ELECTRICAL SYSTEMS - SAFETY RULES Check condition of battery and charging system before departure. ▪ When the electrical system is in use check that individual components are working ▪ satisfactorily. Disconnect and remove the battery when the craft is in winter storage (cold weather areas) ▪...

  • Page 31: Battery

    1. AVOID SPARKS AND EXPOSED FLAMES NEAR BATTERY. IT MAY EXPLODE. 2. TURN OFF THE ENGINE WHEN INSPECTING OR SERVICING THE BATTERY. 3. NEVER KEEP THE BATTERY CLOSE TO A FUEL TANK, FILLER OR FUEL SYSTEM COMPONENTS. Golden Line G580 Owner’s Manual...

  • Page 32: Man-Overboard Prevention And Recovery

    SAFETY MAN-OVERBOARD PREVENTION AND RECOVERY Man-overboard prevention. The working deck has an anti slip surface. When the boat is underway, the helmsman and passengers should always occupy designated seating areas, using handles when necessary. Other parts such as seat backs, cleats, windscreen tops and rails can be used as handholds to reduce the risk of falling overboard.

  • Page 33: Means Of Reboarding

    COULD RESULT IN INJURY OR DEATH! Even in neutral, engine's propeller may rotate and may cause injury. If a person is in the water near the boat, immediately switch off the engine to avoid injury from the propeller rotation. Golden Line G580 Owner’s Manual...

  • Page 34: Safety Equipment

    SAFETY SAFETY EQUIPMENT The owner/helmsman is responsible for ensuring that appropriate safety equipment is onboard and is in proper working condition. The type of safety equipment and quantity will depend on the conditions expected and length of trip. The type of safety equipment required will depend on local or national regulations. In most countries, safety equipment of the following type is required: ▪...
  • Page 35 A whistle or non-electric horn. ▪ Mooring lines and fenders. ▪ Extra engine oil. ▪ A tool kit. ▪ A portable AM/FM radio or weather radio. ▪ Cell Phone with waterproof container. ▪ Binoculars. ▪ Golden Line G580 Owner’s Manual...

  • Page 36: Safety Driving Rules

    SAFETY SAFETY DRIVING RULES NOT USE ALCOHOL/DRUGS BEFORE OR WHILE OPERATING YOUR BOAT. ▪ AVOID BOW RIDING AS IT MAY BE ILLEGAL AND IS EXTREMELY DANGEROUS. ▪ KEEP CLEAR SWIMMERS DIVERS: ALWAYS AVOID AREAS WHERE ▪ DIVERS/SWIMMERS ARE PRESENT. KEEP A SHARP LOOKOUT ESPECIALLY WHEN OPERATING NEAR BEACHES AND BRIDGES. ▪...
  • Page 37 THE BOAT IS DESIGNED FOR RECREATIONAL PURPOSED ONLY, NOT FOR COMPETITIONS. Please remember also that the is not designed to jump through the waves. The builder is not responsible for any damage from excessive loads resulting in neglect of the precautions outlined in this manual. Golden Line G580 Owner’s Manual...
  • Page 38 SAFETY SAFETY LABELS...
  • Page 39 SAFETY Golden Line G580 Owner’s Manual...

  • Page 40: Boat Identification

    BOAT IDENTIFICATION 2. BOAT IDENTIFICATION BOAT’S IDENTIFICATION NUMBER Every boat has “Watercraft Identification Number” (WIN), which uniquely identifies your boat and is important for safety and identification purposes. The WIN is marked on a non-removable metal plate, which is fixed to the transom area of your boat (fig. 11). Fig.

  • Page 41: Builder's Plate

    HP. 6 - Maximum weight of outboard motor allowed by the builder expressed in kilograms and lbs. 7 – Nominal Pressure of the buoyancy tubes in Bar and Psi. Fig. 12. Builder’s plate. Golden Line G580 Owner’s Manual...
  • Page 42 BOAT IDENTIFICATION Always refer to local regulations for information on additional requirements. *Design category (European Directive 2013/53/EU): Category Navigation "Inshore" "Protected water" Up to and including F6 Up to and including F4 Wind speed (Beaufort scale) Significant height of wave to Up to and including 2m Up to and including 0.3m consider (in meters)

  • Page 43: Location Of The Builder's Plate

    BOAT IDENTIFICATION LOCATION OF THE BUILDER’S PLATE Builder’s plate Fig. 13. Location of the Builder’s plate. Golden Line G580 Owner’s Manual...

  • Page 44: Before Operating Your Craft

    BEFORE OPERATING YOUR CRAFT 3. BEFORE OPERATING YOUR CRAFT CHECKLIST BEFORE DEPARTURE Using a pressure gauge (not supplied), check inflation pressure in each section of the tube. ▪ Check the tightness of the outboard motor clamps or bolts. ▪ Inspect the steering system: an improperly maintained system may fail, causing sudden loss of ▪...

  • Page 45: Weather

    6. LEARN how to estimate the distance you can cover with a full tank of fuel. Always be sure you have enough fuel to reach your destination or a place of safety. 7. CHECK you have all necessary documentation and licenses. Golden Line G580 Owner’s Manual...

  • Page 46: Rules To Observe When Afloat

    BEFORE OPERATING YOUR CRAFT RULES TO OBSERVE WHEN AFLOAT Be responsible: do not ignore safety rules. ▪ Make sure that you are always in control of your boat. ▪ Always operate your boat with courtesy and respect for others. ▪ Respect local regulations and practices.

  • Page 47: Operating The Craft

    To inflate the tube chamber, first open the valve cap by turning it about half a turn counter clockwise (fig. 15). The spindle should be in the upper (closed) position. “O” ring and cap seals of the valve can wear out overtime and can be subject to change. Golden Line G580 Owner’s Manual...
  • Page 48 OPERATING THE CRAFT Valve cap Strap Spindle a) The valve is closed b) The valve is open Fig. 15. Design of the inflation valve. When the spindle is in the normal (closed) position, the valve operates as a check valve and opens when air is pumped into the tube.
  • Page 49 Make sure the adaptor makes an air-tight connection with the valve and inflate using foot pump. To inflate the tube, you can also use a small electric boat pump. IF YOU USE A SMALL ELECTRIC PUMP, COMPLETE THE PROCEDURE BY USING THE FOOT PUMP TO REACH THE REQUIRED NOMINAL PRESSURE. Golden Line G580 Owner’s Manual...
  • Page 50 OPERATING THE CRAFT Begin the inflation procedure according to the sequence shown in figure 17. Initially, partially inflate each chamber (approx. 0.1 bar (1.45 psi) then repeat the procedure inflating each chamber to its nominal pressure, 0.15 bar (2.15 psi). The nominal pressure is 0,15 bar (2,15 psi).
  • Page 51 DO NOT USE SOURCES OF HIGH PRESSURE COMPRESSED AIR FOR INFLATING THE TUBE. EXCESSIVE PRESSURE CAN DAMAGE THE GLUED SEAMS AND THE INTERNAL WALLS. Golden Line G580 Owner’s Manual...

  • Page 52: Overpressure Valve (If Fitted)

    OPERATING THE CRAFT OVERPRESSURE VALVE (IF FITTED) Overpressure valves can be fitted to buoyancy tubes as shown in fig. 18. It serves to protect the tube from over inflation and excess pressure build up due to solar heat. Without strainer With filter cap Fig.

  • Page 53: Motor Installation

    The engine manufacturer’s dealer or authorized agent should undertake installation of the motor on your boat. The optimum position is with the propeller axis parallel with the water. CORRECT Fig. 19. Optimum trim. Golden Line G580 Owner’s Manual...
  • Page 54 OPERATING THE CRAFT If the motor is tilted too far outwards from the transom the boat will tend to porpoise. INCORRECT Fig. 20. Trim up. If the motor is tilted too far inwards towards the transom the boat will travel bow down.

  • Page 55: Motor Start&Stop

    SUPPLY. ENSURE ALL AIR INTAKES ARE CLEAR BEFORE FUEL- BURNING EQUIPMENT IS USED. Fig. 22. Motor. Routine maintenance should be carried out in strict conformity with the instructions given in the appropriate motor owner's manual. Golden Line G580 Owner’s Manual...
  • Page 56 OPERATING THE CRAFT ENGINE KILL SWITCH LANYARD Kill switch lanyard Fig. 23. Engine kill switch lanyard. For safety reasons always use the engine kill switch lanyard. The purpose of the engine kill switch lanyard is to turn off the engine if for any reason the helmsman is removed from the steering position.

  • Page 57: Electrics

    The battery isolator switch is located on the external/internal side of the rear compartment in an accessible place for the helmsman. It should be accessible at all times for disconnecting all devices from the battery. THE BATTERY MUST NEVER BE DISCONNECTED FROM THE ENGINE WHEN IT IS RUNNING! Golden Line G580 Owner’s Manual...
  • Page 58 OPERATING THE CRAFT SWITCH PANEL Use the following switches located on the steering console to switch on/off a horn, navigation lights, anchor/all-round light, bilge pump and shower. Navigation Horn lights Anchor/all Bilge round Shower pump light Fig. 24. Switch panel.
  • Page 59 Be sure to always have a spare set of appropriate fuses on board. Circuit Fuse rating, A Fuse box Horn Navigation lights Anchor/top light Bilge pump Shower pump USB socket Fig. 25. Location of the fuse box. Golden Line G580 Owner’s Manual...
  • Page 60 OPERATING THE CRAFT ELECTRICAL HORN (IF APPLICABLE) The horn serves as a warning to other craft and individuals when setting off, mooring or in other safety related situations. The horn is mounted on the steering console. The horn is switched on/off by means of a switch located on the steering console. To use the horn press and hold the switch.
  • Page 61 Navigation lights are located on the bow step plate (side lights) and on the mast/arch (all-round) light. Use the switch on the steering console to turn the navigation lights on and off when needed. Red left (port) Bow green All-round light navigation light (starboard) navigation light Fig. 27. Navigation lights. Golden Line G580 Owner’s Manual...

  • Page 62: Lifting Eyes

    OPERATING THE CRAFT LIFTING EYES To lift the boat and place it on davits, use the factory fitted lifting eyes only (fig. 28, 29). Use only certified and rated lifting slings, appropriate for your boat and motor weight. Fig. 28. Bow lifting eyes, 2 positions. Fig.

  • Page 63: Components Of A Boat

    COMPONENTS OF A BOAT BOW ANCHOR STORAGE/BOW LOCKER Soft cushions Cup holders Fig. 30. Bow anchor compartment with hatch and soft cushion and bow locker. BE CAREFUL WHEN OPENING/CLOSING THE HATCHES. THEIR ACCIDENTAL CLOSING COULD INJURE YOU. Golden Line G580 Owner’s Manual...
  • Page 64 OPERATING THE CRAFT REAR LOCKER WITH SOFT SEAT AND SEAT BACK Fig. 31. Rear locker with access panel, lifters, soft seat and seat back. We recommend to have all lockers, storage boxes, hatched compartments are closed securely. IMPORTANT NOTICE Before make a trip, check that all cushions are fastened well. Always remove the cushions carefully.
  • Page 65 OPERATING THE CRAFT TWO REAR ROPE HATCHES Rear rope hatches Fig. 32. Two rear rope hatches. Golden Line G580 Owner’s Manual...
  • Page 66 OPERATING THE CRAFT HELM AND PASSENGER DOUBLE SEAT Fig. 33. Helm and passenger double seat with foldable seats.
  • Page 67 ASSEMBLE A TUBULAR PYLON AND A TABLETOP, AND THEN INSERT IT INTO THE TABLE HOLDER. Fig. 34 Removable table. ALWAYS STORE A REMOVABLE TABLE INSIDE THE STORAGE COMPARTMENT IF YOU INTEND TO CRUISE AT MORE THAN 15 KNOTS. Golden Line G580 Owner’s Manual...
  • Page 68 OPERATING THE CRAFT BOW REMOVABLE SUNDECK AND SUNDECK EXTENSION WITH CUSHION (IF APPLICABLE) Removable sundeck NEVER SUNDECK WHEN THE BOAT IS UNDERWAY. THERE IS A RISK TO FALL OVERBOARD. ALWAYS STORE REMOVABLE BOW SUNDEC INSIDE THE STORAGE COMPARTMENT Removable sundeck extension PLANNING TO CRUISE AT MORE THAN 15 KNOTS.
  • Page 69 OPERATING THE CRAFT STAINLSESS STEEL RAILS (IF APPLICABLE) Stainless steel bow rails Fig. 36. Stainless steel bow rails. NEVER USE THE RAILS FOR MOORING. TIE-UP ONLY TO THE CLEATS AND BOW TOWING EYE. Golden Line G580 Owner’s Manual...
  • Page 70 OPERATING THE CRAFT COLLAPSIBLE BIMINI TOP (IF APPLICABLE) Collapsible bimini top Fig. 37. Collapsible bimini top. USE A BIMINI TOP WHEN YOUR BOAT IS NOT IN MOTION. KEEP BIMINI TOP IN STOWED POSITION IF YOU PLANNING TO CRUISE AT MORE THAN 20-25 KNOTS.
  • Page 71 3. The same procedure should be repeated on the opposite side. 4. а) Unfold the Bimini Top together with canvas, fasten the support poles being mounted to the rear handrails or dedicated fastenings. Fix the adjustable straps to the attachment structures located on the bow. Golden Line G580 Owner’s Manual...
  • Page 72 OPERATING THE CRAFT To install the Bimini Top on a boat with inverted U-shaped arch (fig. 39) follow steps 1-3. Adjustable strap Inverted-U- shaped arch Fig. 39. Installation of Bimini Top on a boat with inverted U-shaped arch. 4. b) Unfold the Bimini Top together with canvas, fix the adjustable straps to the arch, then the other straps to the bow fastening.
  • Page 73 CHECK THAT THE FOLD-DOWN SECURING LATCH IS IN PLACE BEFORE BEGINNING A TRIP OR TRAILERING THE BOAT. THE JOINTS OF TELESCOPIC LADDER CAN INJURE YOUR HANDS. PLEASE BE CAREFUL. DO NOT USE SWIMMING PLATFORMS WHEN ENGINE IS RUNNING! Golden Line G580 Owner’s Manual...
  • Page 74 OPERATING THE CRAFT WATER SHOWER SET (IF APPLICABLE) A pump and 50-liter tank available. Water shower Hatch with shower head filler cap good practice rinse periodically the water supply system and fill up the water tank with freshwater after each use. A usual household cleaner can be used for system cleaning.
  • Page 75 NEVER ALLOW PASSENGERS TO SIT ON REAR SOFA WHEN TOWING A SKIER. SHOULD THE TOWROPE PART IT COULD BACKLASH INTO THE COCKPIT. DO NOT USE THE TOWING ARCH TO PULL A BANANA TUBE. Fig. 42. Waterski towing arch. Golden Line G580 Owner’s Manual...
  • Page 76 OPERATING THE CRAFT WATERSKI TOWING ARCH WITH GRP TOP (OPTION 2) (IF APPLICABLE) Always observe safe driving procedures when towing a water skier. For information about waterski towing procedures contact your local power boat school or yacht club. Waterski THE SAFE WORKING LOAD OF THE towing arch TOWING MAST IS INDICATED ON A LABEL ATTACHED TO THE ARCH.
  • Page 77 Shock absorption, which decreases fatigue. ▪ Protection for boat surfaces against scratches, chips ▪ DO NOT USE ACID-BASED and dents. CLEANERS. AVOID TO USE HIGH Noise reduction characteristics – ideal for fishermen. ▪ PRESSURE WASHERS Golden Line G580 Owner’s Manual...

  • Page 78: Anchoring, Mooring And Towing

    OPERATING THE CRAFT ANCHORING, MOORING AND TOWING ANCHORING Please make sure your craft is equipped with an appropriate anchor and line. If you are not sure, ask your Dealer who will be happy to advise. Setting-up a securing anchorage requires knowledge and practice so it is important that properly trained persons undertake this procedure.

  • Page 79: Mooring. Bow Cleats

    Anchor roller Bow cleat THE BREAKING STRENGTH OF LINES SHALL IN GENERAL NOT EXCEED BREAKING STRENGTH OF THE RESPECTIVE STRONG POINT. Towing eye Fig. 45. Bow cleats. Breaking strength of bow cleat is 14 kN. Golden Line G580 Owner’s Manual...

  • Page 80: Mooring. Rear Cleats

    OPERATING THE CRAFT MOORING. REAR CLEATS BE VERY CAREFUL WHEN Right rear cleat MOORING: ARMS AND LEGS MAY BE INJURED IF THEY ARE Left rear cleat OUTSIDE THE BOAT. DON’T USE SAFETY HANDS, RAILS, HANDRAILS, STEERING WHEEL FOR MOORING. Fig. 46. Rear cleats. Breaking strength of rear cleat is 12 kN.

  • Page 81: Towing

    A towed boat should always be observed. Tenders should not to be towed over long distances. Do not use a tow line with signs of damage or wear. Check tow lines for wear and damage prior to use. Always keep hands and feet clear of tow lines. Golden Line G580 Owner’s Manual...
  • Page 82 OPERATING THE CRAFT Be prepared to cast loose or cut the tow line if necessary. Towing should be done at low speed. Breaking strength of bow towing eye is 17 kN. Towing eye Fig. 47. Bow towing eye. 1. TOWING MUST BE DONE AT LOW SPEED (NOT MORE THAN 10 KM/H) AND IN GOOD WEATER CONDITIONS WITH NO WAVES.

  • Page 83: Beaching

    Do not power the boat onto land as serious damage to the hull and tube may occur. Do not drag the boat across rough or abrasive surfaces (rocks, concrete etc.). The hull and tube can be damaged. Golden Line G580 Owner’s Manual...

  • Page 84: Technical Information

    TECHNICAL ETAILS 5. TECHNICAL INFORMATION TECHNICAL SPECIFICATION See the table below for technical specifications of G580. Model G580LF Specification Unit Length overall ft/inches 19’2” Length internal ft/inches 14’0” Beam width ft/inches 8’0” Width internal ft/inches 4’9” Chambers Number Tube diameter inches 20”...
  • Page 85 Built in fuel tank capacity Water tank capacity (option) Note: * - The bare boat weight is just a weight of the boat without any removable accessories. ** - Mass of the craft in the fully loaded condition (m Golden Line G580 Owner’s Manual...

  • Page 86: Standard And Optional Equipment

    TECHNICAL DETAILS STANDARD AND OPTIONAL EQUIPMENT STANDARD FEATURES: Deep-V fiberglass hull with transom extensions, ▪ bow towing eye and self-bailing cockpit Inflatable tube with fiberglass step ends ▪ Bow step plate with navigation lights, anchor ▪ roller and cleat Steering console CL-22 with front seat, windshield, ▪...
  • Page 87 Steering wheel PERFORMANCE (black) ▪ Stainless steel bimini top ▪ Overall cover, consoles and rear seat covers ▪ Two overpressure valves ▪ Keel and tube protector packages ▪ SILVERTEX upholstery upgrade ▪ SeaDek antiskid set ▪ Golden Line G580 Owner’s Manual...

  • Page 88: Compartment Chart

    TECHNICAL DETAILS COMPARTMENT CHART 1. Bow anchor storage 5. Fuel tank compartment 2. Bow locker 6. Double seat storage 3. Console storage 7. Lower rear storage 4. Glove box with hatch 8. Main rear storage 9. Rear rope storages (left and right) Fig.

  • Page 89: General Arrangement Of A Boat

    TECHNICAL DETAILS GENERAL ARRANGEMENT OF A BOAT Fig. 50. General arrangement of a boat. Golden Line G580 Owner’s Manual...
  • Page 90 TECHNICAL DETAILS General arrangement of a boat (see fig. 50 on the previous page): 1. Reinforced buoyancy tube 12. Fuel filler neck 2. Rubbing strake with splash guard 13. Waterski towing arch 3. Safety handle 14. Double seat SD-22 4. Fiberglass hull 15.

  • Page 91: Steering Console Components

    TECHNICAL DETAILS STEERING CONSOLE COMPONENTS Fig. 51. Steering console components (see the list on the next page). Golden Line G580 Owner’s Manual...
  • Page 92 TECHNICAL DETAILS Steering console components (see fig. 51 on the previous page): Ignition key (1) Fuel indicator (8) Steering system Switches (9): − Navigation lights Steering cable − Anchor/top light Steering wheel (2) − Horn − Bilge pump Windshield (3) −...

  • Page 93: General View Of A Boat

    TECHNICAL DETAILS GENERAL VIEW OF A BOAT Fig. 52. General view of a boat. Golden Line G580 Owner’s Manual...

  • Page 94: Electrical Schematic Diagrams

    TECHNICAL DETAILS ELECTRICAL SCHEMATIC DIAGRAMS Fig. 53. Electrical schematic diagram for a boat with all navigation lights on the arch.
  • Page 95 TECHNICAL DETAILS Fig. 54. Electrical schematic diagram for a boat with nav. lights on the arch and bow step plate. Golden Line G580 Owner’s Manual...

  • Page 96: Service And Maintenance

    SERVICE AND MAINTENANCE 6. SERVICE AND MAINTENANCE Only high-quality materials suited for marine environments are used in production of our boats. Nevertheless, without a regular and proper maintenance, the moisture and saltiness inherent to this environment can reduce their service life. A dedicated cover for the whole boat is the best protection against UV degradation of gelcoat and fabric of the tube.

  • Page 97: Cleaning

    Use cleaning agents specifically formulated for cleaning inflatable boats and RIBs. A high-pressure washer can be used for cleaning the hull. DON’T USE A HIGH-PRESSURE WASHER FOR TUBE WASHING. Golden Line G580 Owner’s Manual...

  • Page 98: Cleaning Of Tube

    SERVICE AND MAINTENANCE CLEANING OF TUBE An important factor for the long life of tube fabric is regular adequate cleaning. The subsequent cleaning procedure is recommended: Rinse off with clear, tap water (approx. 20 °C). ▪ Use gentle soapy water (pH value neutral to slightly alkaline) to wash the tube by means of a ▪...
  • Page 99 Solvent based cleaning agents (e. g. based on ester, ketone, ether, furan or benzol). ▪ Petrol, diesel, kerosene. ▪ Self-made cleaning agents. ▪ Bleaching or oxidizing cleaning agents (e.g. containing hydrogen peroxide, sodium ▪ hypochlorite, chlorine dioxide or sodium dithionite). Golden Line G580 Owner’s Manual...

  • Page 100: Plastic Preservation

    SERVICE AND MAINTENANCE PLASTIC PRESERVATION Surface quality may degrade by solar exposure, heat, salt deposits, anthropogenic pollution and vehicle exhaust gases. The gelcoat surfaces will last a long time if regularly and properly cared for. Keeping the surface clean and periodic waxing are key points in gelcoat care. In the marine environment, protection of plastic surfaces must be applied more regularly than on your car because the sun is stronger and the horizon is longer than on shore.

  • Page 101: Salt Removal

    Be sure to read the instructions before application. Preferably choose the time to work or position the boat so you can work in the shade, both to keep the surface cool and to keep from going blind. Golden Line G580 Owner’s Manual...
  • Page 102 SERVICE AND MAINTENANCE CLEANING OF THE UNDERWATER PART OF THE HULL FROM DEPOSITS Cleaning with a high-pressure washer The best means for removing stubborn deposits is a high-pressure washer. However, when using a high-pressure washer, use it carefully so that the jet does not hit the tube. THE USE OF A HIGH-PRESSURE WASHER TO CLEAN THE TUBE IS PROHIBITED.

  • Page 103: Upholstery Care

    Do not use solvents, acetone, whiteners, waxes, silicones and other harsh chemicals ▪ STORAGE If you don’t use the boat, take care to cover all upholstery to protect it from environment hazards. During the storage, be sure about free air circulation around the cushions. Golden Line G580 Owner’s Manual...

  • Page 104: Acrylic Glass Windshield Care

    SERVICE AND MAINTENANCE ACRYLIC GLASS WINDSHIELD CARE Only clean water and soft microfiber, cotton or flannel cloth should be used for acrylic glass windshield cleaning. To remove stubborn stains, use only cleaners formulated specifically for cleaning acrylic surfaces. TO PREVENT SCRATCHES, DAMAGE, TURBIDITY AND OTHER DEFECTS: Do not make dry cleaning ▪...

  • Page 105: Airtightness Of The Inflatable Tube

    NEVER USE HIGH-PRESSURE EQUIPMENT TO INFLATE YOUR BOAT Changes in ambient temperature have a significant influence on air pressure within the tube. A variation of 1°C results in a variation in pressure of about +/- 4 mb (0,06 psi). Golden Line G580 Owner’s Manual...
  • Page 106 SERVICE AND MAINTENANCE IN CASE OF AN AIR LEAKAGE If a significant drop of pressure has occurred, make a visual check of the tube: if there is no o Step 1 - check the inflation/deflation valves and overpressure valves - contamination and all seals are in good state.

  • Page 107: Maintenance Of Stainless Steel

    Grease all metal moving parts and connections, including steering. o Properly close the fuel system to avoid any vapour leaks. o If possible allow air to circulate within the boat, a breathable canvas cover will help. Golden Line G580 Owner’s Manual...

  • Page 108: Regular Inspections

    SERVICE AND MAINTENANCE Winterize the motor, following the manufacturer’s instructions. 1. WHEN THE BOAT IS IN STORAGE MAKE SURE IT IS COVERED. 2. STORE THE BOAT AWAY FROM RODENTS. 3. AVOID SHARP FOLDS IN THE TUBE MATERIAL. REGULAR INSPECTIONS Check frequently all navigation lights, horn, VHF radio (if fitted), safety handles, handrails and ▪...

  • Page 109: Trailering

    Reference dimensions are indicated on the figure 55. The boat is designed to be transported with an inflated tube. Fig. 54. Trailer. DO NOT USE A ROLLER TRAILERS AS ROLLERS DO NOT PROVIDE ADEQUATE SUPPORT FOR THE HULL. Golden Line G580 Owner’s Manual...
  • Page 110 TRAILERING Note. All dimensions are in mm. Fig. 55. Measurements for a correct trailer.

  • Page 111: Boat Towing

    Close and secure all hatches and openings on the boat. Cushions must be placed in lockers ▪ or removed to prevent loss during transit. IMPORTANT NOTICE Do not trailer the boat with the overall cover in place, it is not designed for transportation. Golden Line G580 Owner’s Manual...

  • Page 112: Respecting The Environment

    ENVIRONMENT 8. RESPECTING THE ENVIRONMENT REMEMBER THAT RESPONSIBLE BOATING BEGINS WITH YOU! Respect your environment by applying the following basic rules: • AVOID CREATING EXCESSIVE WASH. • KEEP OUT OF DESIGNATED SWIMMING AREAS. • RESPECT ALL ANIMAL LIFE. • BE CAREFUL NOT TO OVERFILL THE FUEL TANK. •...

  • Page 113: Grand's Warranty

    This warranty applies to new Grand Inflatable Boats purchased from an Authorised Grand Marine Reseller. By using the Grand Inflatable Boats, the owner and helmsman understands and agree to undertake all instructions in the Grand Owner’s Manual, and agrees to all warranty and liability terms and conditions contained in this warranty. WARRANTY PERIOD Grand warrants Grand branded components from the date of purchase for a period of: 24 consecutive months for normal personal recreational use*.

  • Page 114: Warranty Coverage

    Inflatable tubes. ▪ This warranty is limited to repair, or at Grand option, replacement of parts suffering from any of the defects described above during the warranty period. The judgment of Grand is final concerning the extent of items covered under above warranty.

  • Page 115: Warranty Exclusions

    ▪ requirements, oil and lubrication, replacement of fuses or bulbs, linkage adjustments, filters and spark plugs, tyres, and other consumable items. Damage caused by not following procedures and recommendations in the Grand Owner’s ▪ Manual. Operating the craft beyond the design category.

  • Page 116: Warranty Certificate

    WARRANTY WARRANTY CERTIFICATE Name of Customer: __________________________________ Address: ___________________________________________ City: ______________ Post code: _______________________ E-mail_____________ Phone number: ___________________ WIN (Serial number):__________________________________ Signature: __________________________________________ Dealer address: _____________________________________ City: ______________ Post code: _______________________ Date of purchase: ____________________________________ Seller and customer acknowledge by signing that seller handed and customer received hereinbefore boat including standard (optional, if relevant) equipment and manual in English and that the boat is without evident defects.

  • Page 117: For Your Notes

    FOR YOUR NOTES...
