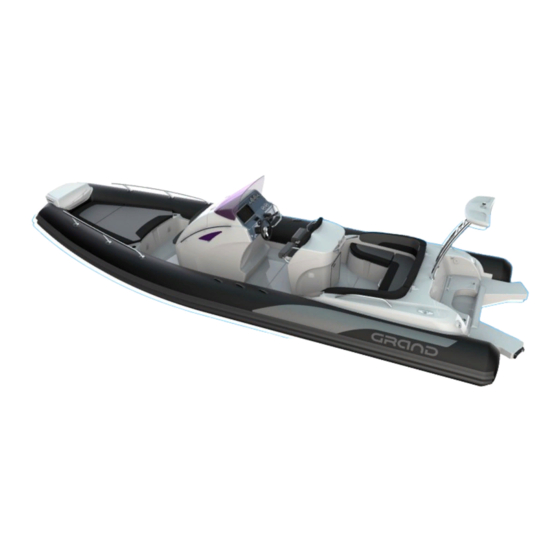

- Page 1 GRAND Golden Line G850 UM18500 Rigid Inflatable Boat GOLDEN LINE Models: G850 User’s Manual...
-
Page 2: Table Of Contents
GRAND Golden Line G850 UM18500 CONTENTS page INTRODUCTION PURPOSE TECHNICAL DATA SPECIFICATION COMPLETE SET INFLATION / DEFLATION VALVES OPERATION PREPARATION FOR EXPLOITATIONN STEERING CONSOLE INSTALLATION CONTAINER INSTALATION MAINTENANCE OPERATING REGULATIONS ANNEX Wiring diagram Water sypply system WC and severage diagram... -
Page 3: Introduction
UM18500 INTRODUCTION. "GRAND" inflatable motor boat of the "GOLDEN LINE" series G850 has been designed under requirements of Directive 2013/53/EU and manufactured by Grand Marine Corporation. This manual has been complied to help you to operate your craft with safety and pleasure. It contains details of the craft;... -
Page 4: Technical Data Specification
GRAND Golden Line G850 UM18500 TECHNICAL DATA SPECIFICATION Model Unit G850 Length overall ft-inches 27'11" Length inside ft-inches Width overall 2.95 ft-inches 9'8" Width inside 1.75 ft-inches 5'9" Tube diameter max ft-inches 24" Number of chambers Passenger capacity pers. Load capacity... -
Page 5: Complete Set
GRAND Golden Line G850 UM18500 COMPLETE SET Description Description STANDART FEATURES OPTIONAL EQUIPMENT Heavy-duty Deep-V handlaid polyester hull. Keel protection package. Bow lockers with anchor compartment and hatches. Tube protection package. Bow step plate with nav. lights and 2 cleats. - Page 6 GRAND Golden Line G850 UM18500 19 20 G850GL 16 17 24 25...
- Page 7 GRAND Golden Line G850 UM18500 Item Fiberglass hull Rainforced buoyancy tube Inflation / deflation valve Anchor hatch with cushion Bow hatch with cushion Drain valve Sump plug 20mm Rear lifting eye Bow lifting eye Rubbing strake with splash guard Safety handle Motor plate external Pull-up cleat 8’...
-
Page 8: Inflation / Deflation Valves Operation
GRAND Golden Line G850 UM18500 INFLATION / DEFLATION VALVES OPERATION The inflation/deflation valve is intended for: Fig.1 —filling the compartment with air from a standart pump or filling system and maintaining pressure in the tube for prolonged time, —adjustable drop of pressure in compartment. -
Page 9: Preparation For Exploitationn
GRAND Golden Line G850 UM18500 PREPARATION FOR EXPLOITATION. In order to set the boat in operation condition perform as follows: unfold the inflatable tube; mount outboard engine on the transom in accordance with it`s own installation instruction. extend engine remote control cables and steering cable from engine mounting place to steering console mounting place through holes on the deck and helm stowage. -
Page 10: Container Instalation
GRAND Golden Line G850 UM18500 MAINTENANCE CONTAINER INSTALATION Main conditions of long service life is right and careful service. In order to install container onto deck perform the next operations Avoid excessive increasing of pressure in the board, ( Fig. 3): especially from heating by the sun rays. -
Page 11: Operating Regulations
GRAND Golden Line G850 UM18500 OPERATING REGULATIONS Proper usage of boat equipment and accessories Dear user, Use the boat equipment and accessories only on their direct We thank your for your purchase and do hope that you will purpose to ensure reliable service. - Page 12 Towing The "GRAND" Company employees would like to wish you a At towing the towing rope length should not be at least 3 pleasant and safe leisure time! lengths of the boat, the rope being secured to both boats in a manner ensuring its immediately, single-motion release.
-
Page 13: Wiring Diagram
GRAND Golden Line G850 UM18500 WIRING DIAGRAM Port light (red) Starboard light (green) Navigation White White arch CONSOLE GREEN2 GREEN1 GREEN -12v НL1 НL1 to indicator to indicator to indicator Horn waste water water fuel Black Black Gray Masthead light white... - Page 14 GRAND Golden Line G850 UM18500 Water supply system Item Item Pos. Water tank Dump valve Water pump Water tap Shower container Wash-bowl output Deck filler Surplus valve...
- Page 15 GRAND Golden Line G850 UM18500 WC and sewerage system A (schematic) Siphon break hull Waste output tap Water input tap Pos. Pos. Item Item Pump-out deck fitting Waste retention tank Water input tap Overboard discharge valve Drainage filter Dump valve...
