- Page 1 GRAND Golden Line G340, G340L, G340GL UM13400 Rigid Inflatable Boat GOLDEN LINE Models: G340, G340L, G340GL Users Manual...

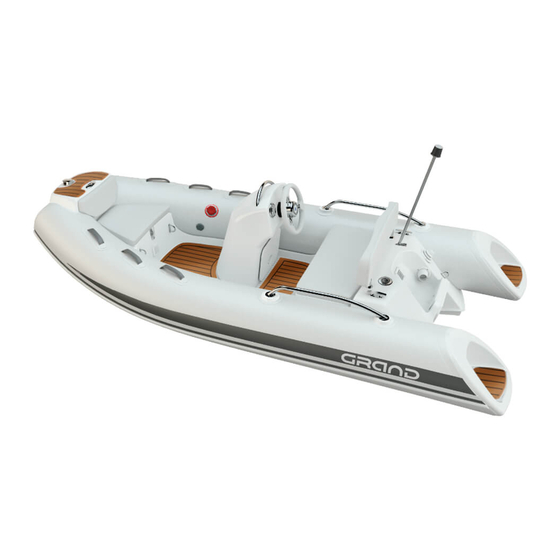

- Page 2 GRAND Golden Line G340, G340L, G340GL UM13400 The rigid inflatable motor boat of the "GOLDEN LINE" series relates to the category of pleasure boats and is intended for water sports, tourism, the use as a floating means on board of launches, yachts and other vessels.
- Page 3 GRAND Golden Line G340, G340L, G340GL UM13400 Item Fiberglass hull Buoyancy tube Inflation / deflation valve Tube towing eye Hull towing eye Front lifting eyes 5 1 10 13 12 Rear lifting eyes Rear bollards Antiskid deck surface Rubrail Safety grab handles...
-
Page 4: Preparation For Exploitation
GRAND Golden Line G340, G340L, G340GL UM13400 PREPARATION FOR EXPLOITATION - install the steering mechanism case on available fastener holes; - fix steering mechanism by means of the accompanying fasteners. 1 Unpack the boat and unfold the inflatable tube. 5 In order to install the steering console, perfom the next operations 2 Set all valves in the operation condition (look below). - Page 5 GRAND Golden Line G340, G340L, G340GL UM13400 - fix windscreen by means of the shaped bolts M6x40 from the complete set (see Fig. 2); - install the steering console (see Fig. 3) , before installation put weather stripping along the edges of the console, then install the console on regular places in a deck and fix it by means of the bolts M8x25 from the complete set.
- Page 6 GRAND Golden Line G340, G340L, G340GL UM13400 CONSOLE EQUIPMENT Console equipment included(Fig.4): - steering system; - steering cable; - steering wheel; - compass (3) (optional equipment); - tachometer (1)(optional equipment); - speedometer (2)(optional equipment); - electric accessory socket(7); - switches: - horn(6);...
-
Page 7: Inflation / Deflation Valves Operation
GRAND Golden Line G340, G340L, G340GL UM13400 INFLATION / DEFLATION VALVES OPERATION The inflation/deflation valve is intended for: —filling the compartment with air from a standart pump or filling system and maintaining pressure in the tube for prolonged time, —adjustable drop of pressure in compartment. - Page 8 GRAND Golden Line G340, G340L, G340GL UM13400 Wiring diagram...
-
Page 9: Maintenance
GRAND Golden Line G340, G340L, G340GL UM13400 MAINTENANCE OPERATING REGULATIONS Main conditions of long service life is right and careful service. Dear user, Avoid excessive increasing of pressure in the board, We thank your for your purchase and do hope that you will especially from heating by the sun rays. - Page 10 GRAND Golden Line G340, G340L, G340GL UM13400 items being reliable secured on the bottom of the boat. All are in force. You may apply for information to the appropriate passengers should be accommodated inside the boat. The water transport and shipping directorate, as well as to the...
- Page 11 At towing the towing rope length should not be at least 3 lengths of the boat, the rope being secured to both boats in a The "GRAND" Company employees would like to wish you a manner ensuring its immediately, single-motion release. The...
- Page 12 GRAND Silver Line S300, S330 UM13400...
- Page 13 GRAND Golden Line G340, G340L, G340GL UM13400 MODEL SERIAL No. Date of manufacture Quality inspection stamp...
