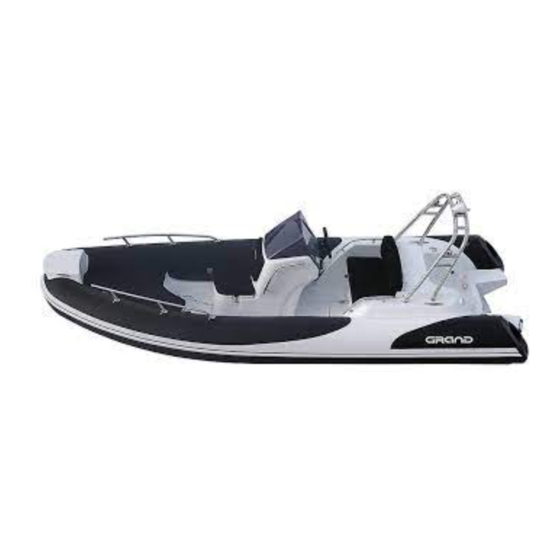

- Page 1 GRAND Golden Line G500LF,G500GLF UM15000 Rigid Inflatable Boat GOLDEN LINE Models: G500LF,G500GLF User’s Manual...
- Page 2 GRAND Golden Line G500LF,G500GLF UM15000 INTRODUCTION. "GRAND" inflatable motor boat of the "GOLDEN LINE" series: G500 has been designed under requirements of ISO 6185 "Plastomer and Elastomer Inflatable Boats" and DIN 7870 "Inflatable Boats with Reinforced Shells". PURPOSE. The rigid inflatable motor boat of the "GOLDEN LINE" series relates to the category of pleasure boats and is intended for...
-
Page 3: Technical Data Specification
GRAND Golden Line G500LF,G500GLF UM15000 TECHNICAL DATA SPECIFICATION Model Unit G5000LF/G500GLF Length overall ft-inches 16'5" Length inside 3.32 ft-inches 10'11" Width overall ft-inches 7'7" Width inside 1.28 ft-inches 4'2" Tube diameter max ft-inches 20" Number of chambers Passenger capacity pers. -
Page 4: Complete Set
GRAND Golden Line G500LF,G500GLF UM15000 COMPLETE SET Model G500LF G500GLF Description availability availability STANDART FEATURES Heavy-duty Deep-V handlaid polyester hull. “DART” system inflatable tube with fiberglass step ends. Bow locker with anchor compartment and hatch. Bow step plate with nav. lights, anchor rollers and cleat. -
Page 5: Optional Equipment
GRAND Golden Line G500LF,G500GLF UM15000 COMPLETE SET (continuation) Model G500LF G500GLF Description availability availability OPTIONAL EQUIPMENT Keel and tube protection packages. Overal cover. Console cover. Collapsible stainless steel bimini top . Waterski towing arch with towing eye and GRP top. - Page 6 GRAND Golden Line G500LF,G500GLF UM15000 G500LF...
- Page 7 GRAND Golden Line G500LF,G500GLF UM15000 Item Fiberglass hull Rainforced buoyancy tube Inflation / deflation valve Bow cushion №1 Bow cushion №2 and hatch Bow sundeck with cushion Expanded drain plug Rear seat with cushion Pull-up cleat 8’ Rear waterski towing eye...
-
Page 8: Inflation / Deflation Valves Operation
GRAND Golden Line G500LF,G500GLF UM15000 INFLATION / DEFLATION VALVES OPERATION The inflation/deflation valve is intended for: Fig.1 —filling the compartment with air from a standart pump or filling system and maintaining pressure in the tube for prolonged time, —adjustable drop of pressure in compartment. -
Page 9: Preparation For Exploitation
GRAND Golden Line G500LF,G500GLF UM15000 PREPARATION FOR EXPLOITATION. In order to set the boat in operation condition perform as follows: unfold the inflatable tube; mount outboard engine on the transom in accordance with it`s own installation instruction. extend engine remote control cables... -
Page 10: Maintenance
GRAND Golden Line G500LF,G500GLF UM15000 MAINTENANCE OPERATING REGULATIONS Dear user, Main conditions of long service life is right and careful service. W e thank your for your purchase and do hope that you will Avoid excessive increasing of pressure in the board, have a great fun of it. - Page 11 GRAND Golden Line G500LF,G500GLF UM15000 acceleration to prevent the boat forebody from raising under Proper usage of boat equipment and accessories the force of upthrust waves. Use the boat equipment and accessories only on their direct Presence of sharp and pricking objects on board purpose to ensure reliable service.
- Page 12 Should the boat become partially f looded throw heavy objects (batteries, f uel tank, engine) overboard to ensure additional floatability. The "GRAND" Company employees would like to wish you a pleasant and safe leisure time!
-
Page 13: Fuel Tank
GRAND Golden Line G500LF,G500GLF UM15000 WIRING DIAGRAM CONSOLE +12 panel light ( white) Fuel meter Speedometer +12v on ignition switch Signal Tachometer Green Black +12v on ignition switch White Black Blue Brown Orange Gray White White White Running lights Gray...
