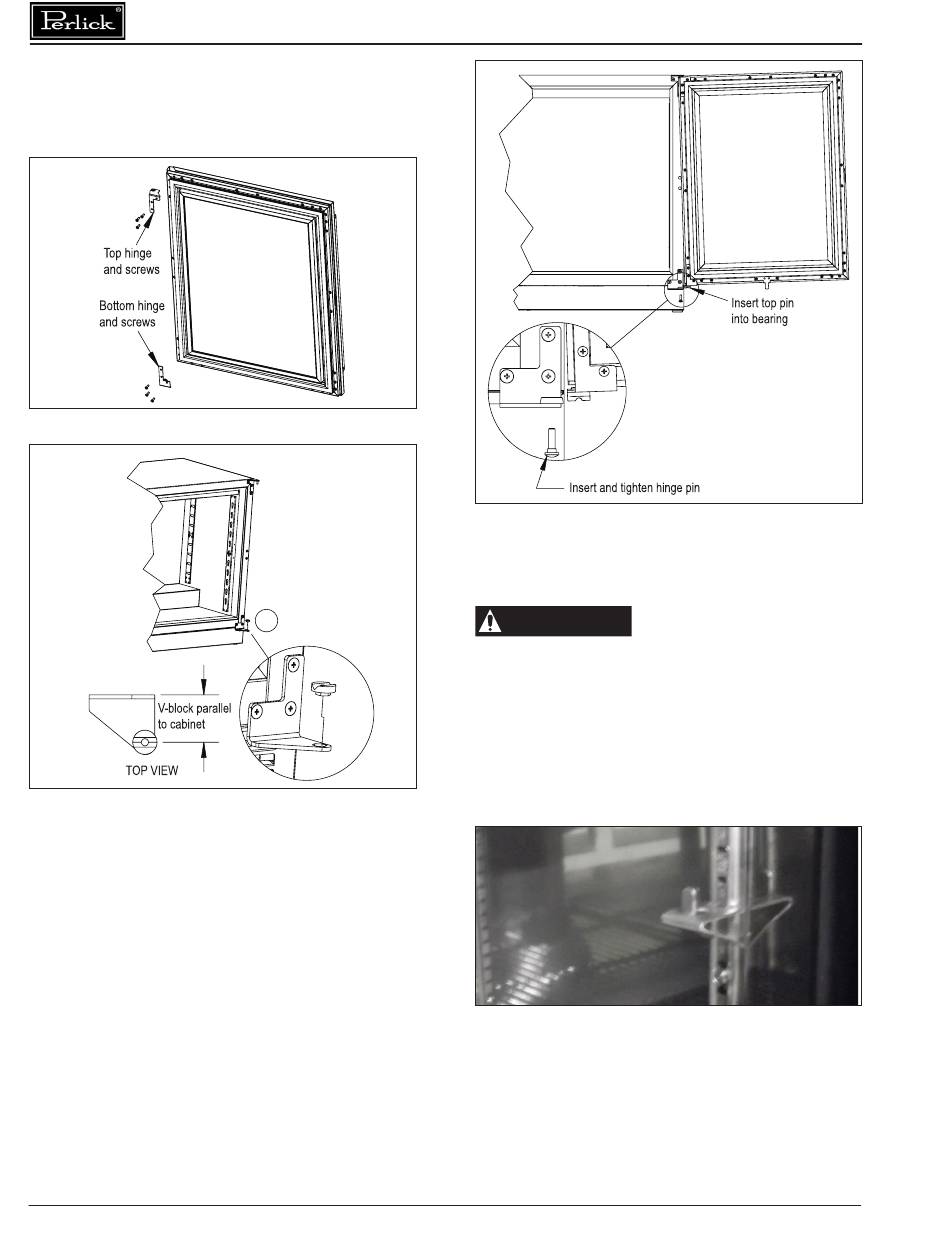

Perlick PTR Series Installation & Operation Manual page 8

10. Attach the top and bottom door hinges using
screws removed in step 6 (Figure 9).
11. Place lower V-block into lower cabinet hinge
with notch parallel to cabinet (Figure 10).
Figure 9. Door Hinges
Figure 10. Installing V-Block
12. Lift door assembly and insert top pin into
bearing. Move door toward cabinet and align
V-blocks (Figure 11).
13. Insert and tighten lower hinge pin to complete
assembly.
Printed in USA
Models PTR/PTS Installation & Operation Manual
Figure 11. Installing Door
Shelving Adjustment
See Figure 12.
CAUTION
1. Open the door. Tilt the shelf and remove it
from the unit
2. Reposition each bracket separately. Grasp
the middle of the bracket, pull the front end
up and out, then forward to remove it.
3. Place brackets at desired location and reinstall
shelf(s).
Figure 12. Shelf Bracket
8
Completely empty shelf or
drawer before removing.
