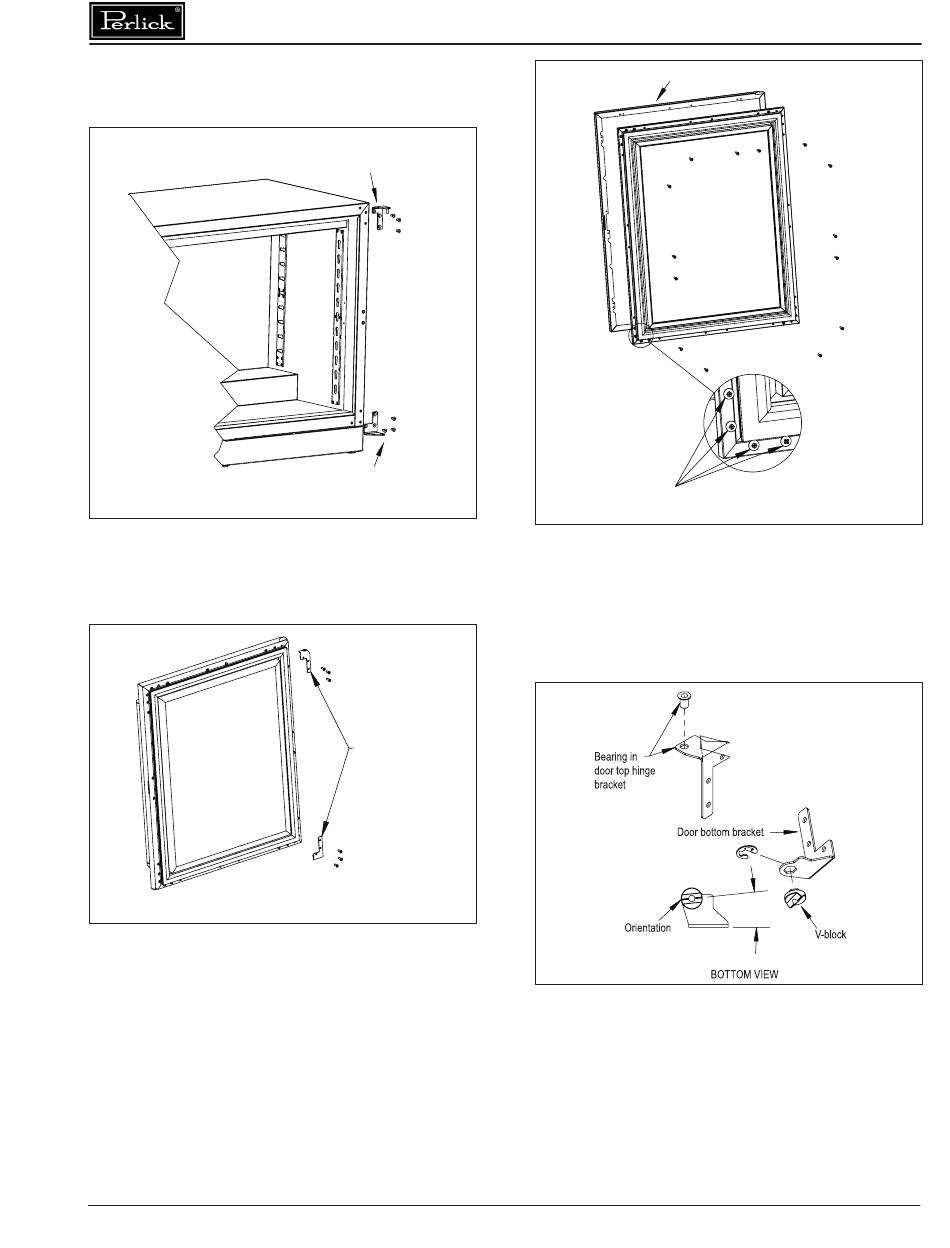

5. Using the screws removed in step 3, install
the top and bottom hinge brackets from kit
(Figure 5).
Figure 5. Hinge Installation
6. Remove the top and bottom hinge brackets
from the door (Figure 6). Retain the screws
for later use.
Figure 6. Door Brackets
7. Remove the front panel from the door assembly
by removing the inner mounting screws, 4 per
side, from the perimeter of the door assembly
(Figure 7). Rotate the front panel 180°. The
top becomes the bottom. Reattach using the
same screws and mounting holes.
Printed in USA
Hinge brackets
and mounting
screws
Hinge brackets
and mounting
screws
Hinge brackets
and mounting
screws
Models PTR/PTS Installation & Operation Manual
Front panel
Corner screws need not be
removed to remove front panel
Figure 7. Removing Front Panel
8. Insert bearing into door top hinge bracket
(Figure 8).
9. Insert V-block into door bottom hinge bracket
and attach with e-clip (Figure 8). Note the
orientation of the V-block.
Figure 8. Bearing and V-Block
