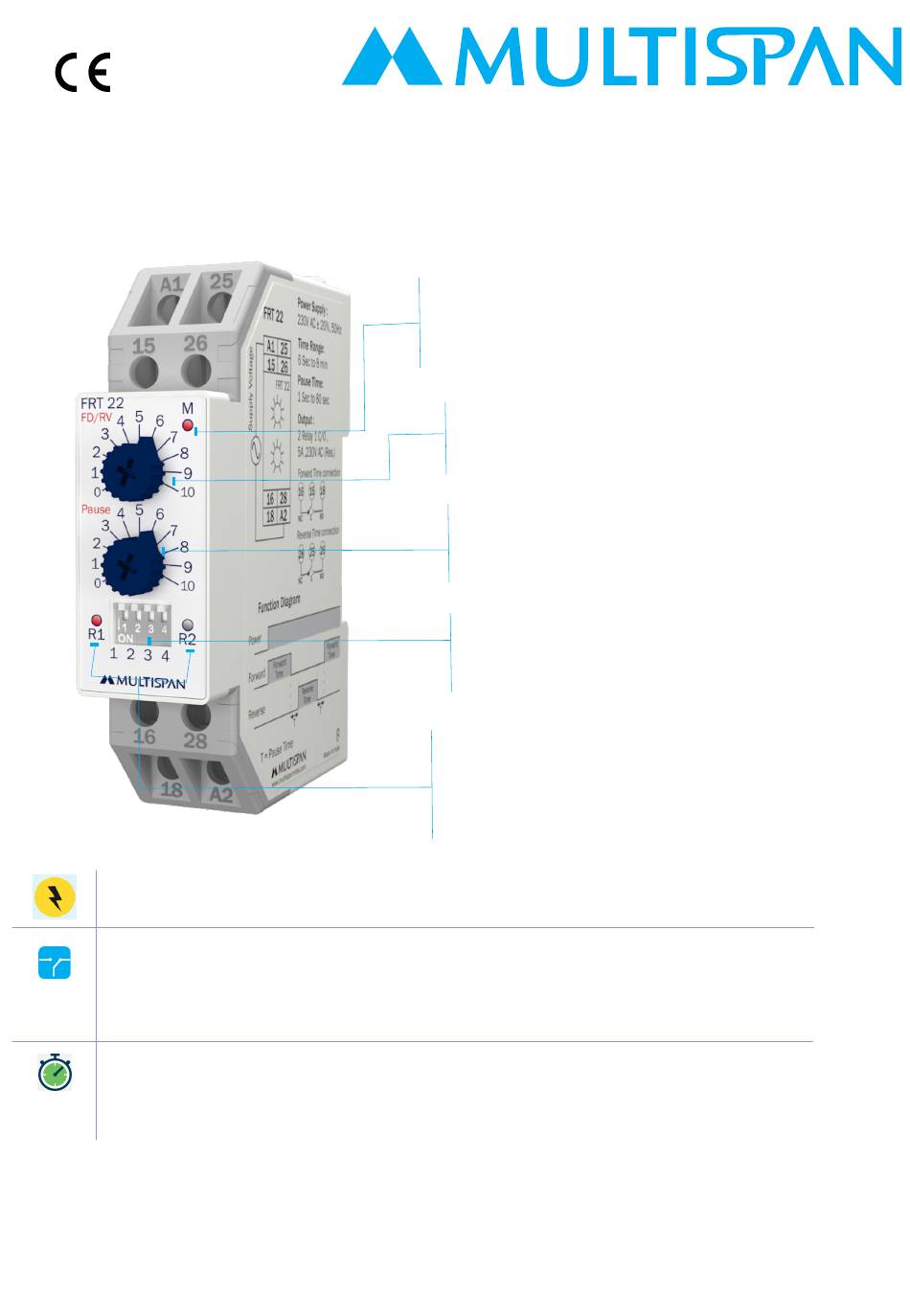

Forward Reverse Timer
FRT 22

Power Supply :

Output:

Forward & Reverse Time Range :

Pause Time :

230 V AC ±20%,50 Hz
2 Relay O/P, 1 C/O, 5A 230 VAC
1st Relay for forward time &
2nd Relay for reverse time
1 sec to 100 sec
MAIN LED
for visualisation of power
supply status
KNOB
for forward reverse time setting
KNOB
for Pause time setting between
forward & reverse function
PIANO SWITCH
for unit & range selection
RELAY OUTPUT
1st Relay output for forward time &
2nd Relay output for reverse time
0.1 sec to 10 hour
(Resistive Load)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FRT 22 and is the answer not in the manual?

Questions and answers

Related Manuals for MULTISPAN FRT 22

Summary of Contents for MULTISPAN FRT 22

  • Page 1 Forward Reverse Timer FRT 22 MAIN LED for visualisation of power supply status KNOB for forward reverse time setting KNOB for Pause time setting between forward & reverse function PIANO SWITCH for unit & range selection RELAY OUTPUT 1st Relay output for forward time &...
  • Page 2 Terminal Connection: A1 25 Forward time connection 15 26 Reverse time connection 16 28 18 A2 Timing Diagram: Power Forward Forward Forward Time Time Reverse Reverse Time t = Pause Time Dip switch selection: Multiplier Range SW 1 SW 2 SW 3 (Knob Indication) 0.1 Sec X 10 1 Sec...
  • Page 3 Dimension 22.5 NOTE: All dimension are in mm. 66.35 SAFETY PRECAUTION All safety related codifications, symbols and instructions that appear in this operating manual or on the equipment must be strictly followed to ensure the safety of the operating personnel as well as the instrument. If all the equipment is not handled in a manner specified by the manufacturer, it might impair the protection provided by the equipment.
  • Page 4 5) Do not connect anything to unused terminals. Multispan reserves the right to change specifications without prior notice.Printing and typographical errors reserved. Product improvement and upgrade is a constant procedure.
