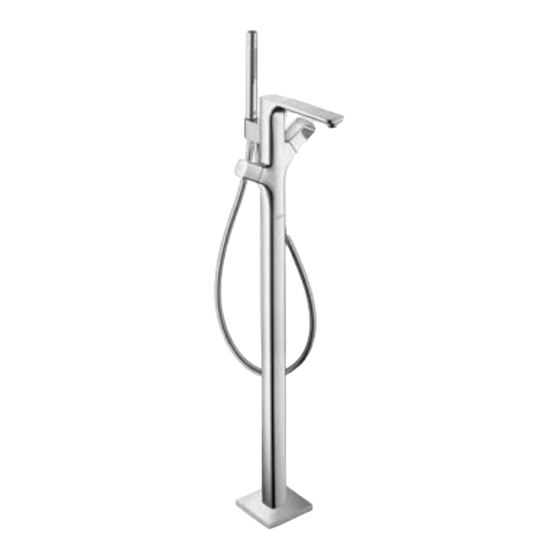

Summary of Contents for Hans Grohe AXOR Urquiola 11422 1 Series
- Page 1 Installation Instructions / Warranty Urquiola 11422xx1...
- Page 2 Technical Information / Données techniques / Datos tecnicos Recommended water Pression d’eau recommandée Presión recomendada en servicio 15 - 75 PSI pressure Max. water pressure Pression d’eau maximum Presión en servicio max. 145 PSI Recommended hot water Température recommandée d'eau Temperatura recomendada del 120�...
-
Page 3: Installation Considerations
Installation Considerations • For best results, Hansgrohe recommends that • To prevent scald injury, the maximum output tem- this unit be installed by a licensed, professional perature of the shower valve must be no higher plumber. than 120°F. In Massachusetts, the maximum out- put temperature can be no higher than 112°... - Page 4 English Installation Turn off the water at the main before beginning. Cut the plaster shield so that it extends ⅜" above the surface of the finished floor. Remove the flush insert. Do not discard the screws. 8 mm (1) Position the tub filler on the rough. (2) Pivot the tub filler, if necessary.
- Page 5 Français Español Installation Instalación Avant de commencer, fermez ¡Cierre el paso del agua en la l’eau à la valve principale! entrada del suministro antes de comenzar! Coupez le protecteur de façon à ce qu’une partie de ⅜ po soit au-dessus de la surface du plancher fini. Corte el protector de yeso de modo que sobresalga ⅜”...
- Page 6 English (1) Seal the floor around the rough using waterproof sealant. Failure to seal the floor may result in water damage. (2) Lower the escutcheon to the floor. (3) Install the handshower and hose. Set the high temperature limit stop and justify the handle.
- Page 7 Français Español (1) Scellez le plancher autour du (1) Selle el piso alrededor del protecteur à l’aide d’un agent protector de yeso con un sellador d’étanchéité. impermeable. Si le plancher n’est pas scellé, Si no se sella el piso, pueden l’eau pourrait éventuellement producirse daños por acción del causer des dommages.
- Page 8 Set the high temperature limit stop / Réglez la butée limite de l’eau chaude / Fije el tope de límite de alta temperatura* *To prevent scald injury, the maximum output temperature of the shower valve must be no higher than 120°F. In Massachusetts, the maximum output temperature can be no higher than 112°...
- Page 9 Justify the handle / Réglez la poignée / Ajuste la manija...
- Page 10 User Instructions / Instructions de service / Manejo > 100°F...
-
Page 11: Maintenance / Entretien / Mantenimiento
Maintenance / Entretien / Mantenimiento 94074000 94074000 94074000 8 mm 8 mm... - Page 12 Replacement Parts / Pièces détachées / Repuestos 28532xx1 1141xx0 5181000 816xx0 813000 32x2 8283000 4074000 1142xx1 6512xx0 8282000 816xx0 28282xx0 7670000 (3) 4074000 11x2 36x2,5 44x2,5 2x3 xx = colors / couleurs / acabados 4074000 00 = chrome 83 = polished nickel...
- Page 13 Cleaning Recommendation for Hansgrohe Products Modern lavatory faucets, kitchen faucets, and showers consist of very different materials to comply with the needs of the market with regard to design and functionality. To avoid damage and returns, it is necessary to consider certain criteria when cleaning. Cleaning Materials for Faucets and Showers Acids are a necessary ingredient of cleaning materials for removing lime, however please pay attention to the following points when cleaning faucets and showers:...
- Page 14 Nettoyez vos produits de robinetterie et de douche aussi souvent que nécessaire. • Utilisez la quantité de produit nettoyant et respectez la durée recommandée par le fabricant. Ne laissez pas le produit sur les articles de robinetterie plus longtemps que nécessaire. •...
-
Page 15: Limited Consumer Warranty
Limited Consumer Warranty This product has been manufactured and tested to the highest quality standards by Hansgrohe, Inc. (“Hansgrohe”). This warranty is limited to Hansgrohe products that are purchased by a consumer in the United States or Canada after March 1, 16, and installed in either in the United States or in Canada. WHO IS COVERED BY THE WARRANTY This warranty extends to the original purchaser only. -
Page 16: Exclusions And Limitations
EXCLUSIONS AND LIMITATIONS REPAIR OR REPLACEMENT (OR, IN LIMITED CIRCUMSTANCES, REFUND OF THE PURCHASE PRICE) AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE PURCHASER. HANSGROHE NEITHER ASSUMES NOR AUTHORIZES ANY PERSON TO CREATE FOR IT ANY OTHER OBLIGATION OR LIABILITY IN CONNECTION WITH THIS PRODUCT.
