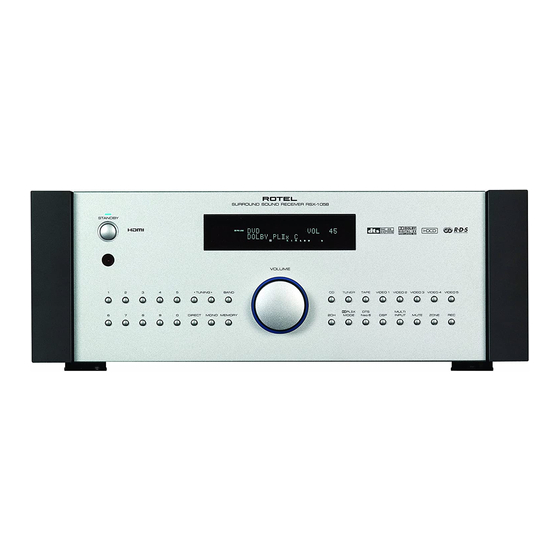

Rotel RSX-1058 Command List

Rs232 controller command list
Hide thumbs Also See for RSX-1058:

Advertisement

Quick Links

Download this manual See also: Owner's Manual
Table: RSX 1058 Waveform format expected:
Baud Rate
Parity
38400
Table: RSX 1058 expected format of a request by RS 232 controller:
Start
Count
Device ID
0xFE
0x03
0xC8
Table 1: Type 10 Primary Command List
NOTE: The values in the table below show the exact byte sequence of all requests. The device
will expect the bytes only - no spaces, no delimiter, etc. The controlling device may implement its
own method to download each command sequence. The numerical values in the first column are
Hexadecimal.
RSX 1058 HEX
FE 03 C8 10 00 DB
FE 03 C8 10 01 DC
FE 03 C8 10 02 DD
FE 03 C8 10 03 DE
FE 03 C8 10 04 DF
FE 03 C8 10 05 E0
FE 03 C8 10 06 E1
FE 03 C8 10 07 E2
FE 03 C8 10 08 E3
FE 03 C8 10 09 E4
FE 03 C8 10 0A E5
FE 03 C8 10 0B E6
FE 03 C8 10 0C E7
FE 03 C8 10 0D E8
FE 03 C8 10 0E E9
FE 03 C8 10 0F EA
FE 03 C8 10 10 EB
FE 03 C8 10 11 EC
FE 03 C8 10 12 ED
FE 03 C8 10 13 EE
FE 03 C8 10 14 EF
FE 03 C8 10 15 E0
FE 03 C8 10 16 F1
FE 03 C8 10 17 F2
FE 03 C8 10 18 F3
FE 03 C8 10 19 F4
FE 03 C8 10 1A F5
FE 03 C8 10 1B F6
FE 03 C8 10 1C F7
RSX 1058
RS232 Controller Command List
Valid Data Bits
N
8
Type
Key
0x10
0xXX
Command
RMC Vol+
RMC Vol-
CD
Tuner
Tape
Video 1
Video 2
Video 3
Video 4
Video 5
Power
Vol+
Vol-
Treble+
Treble-
Bass+
Bass-
Stereo
3 Stereo
Pro Logic
DSP
Multi
Dynamic
Rec
OSD Menu
OSD Enter
OSD Right (+)
OSD Left (-)
OSD Up
Stop Bit Value
Handshaking
1
Checksum
0xXX
Command Description
Remote Volume Up
Remote Volume Down
Source CD
Source Tuner
Source Tape
Source Video 1
Source Video 2
Source Video 3
Source Video 4
Source Video 5
Power Toggle
Volume Up
Volume Down
Treble Up
Treble Down
Bass Up
Bass Down
DSP Stereo
DSP Dolby 3 Stereo
DSP Pro Logic
DSP Music
Multi Input
Dynamic Range
Record
OSD Menu
OSD Enter
OSD Right
OSD Left
OSD Up
Data Type
None
String
