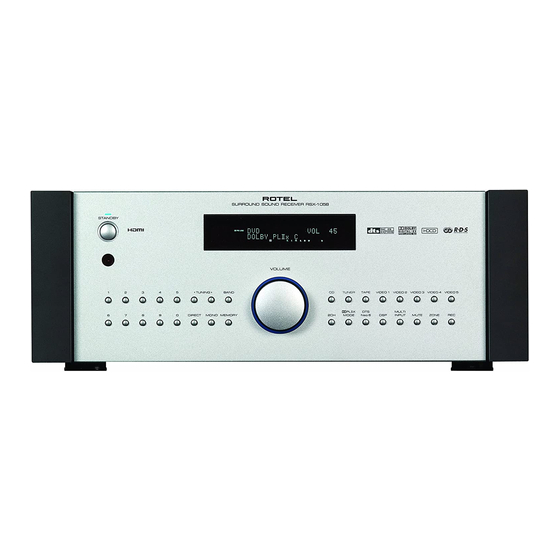

Rotel RSX-1058 Technical Manual

Rotel RSX-1058 Technical Manual

Surround sound receiver
Hide thumbs Also See for RSX-1058:

Advertisement

Quick Links

T echnical
Manual
Table of Contents
Specification.....................................1
Parts List...........................................2~15
Upgrade Procedure..........................16~20
Wiring...............................................21~22
Specifications
Audio
Continuous Amplifier Power
(five channels driven)
75 watts/ch(20–20k Hz, <0.05% THD, 8 ohms)
Continuous Amplifier Power
(two channels driven)
100 watts/ch (1kHz, <1.0% THD, 8 ohms, DIN)
Total Harmonic Distortion
<0.09%
Intermodulation Distortion (60 Hz:7 kHz)
<0.05%
Frequency Response
10Hz-120kHz, ±3dB (analog bypass)
10Hz-95kHz, ±3dB (digital input)
Signal to Noise Ratio(IHF A-weighted)
95dB(analog bypass)
92dB(Dolby Digital,dts) 0dBFs
Input sensitivity /Impedance
Line Level :200mV/100K ohms
Preamp Output Level/Output Impedance
1.0V/1K ohms
Contour (LF/HF)
±6dB at 50 Hz/15 kHz
Decodable Digital Input Signals
Dolby Digital, Dolby Digital EX, DTS, DTS-ES, DTS
96/24, LPCM(up to 192k), HDCD, MP3
THE ROTEL CO., LTD.
SHINSEN-BLD. 4F 10-10 SHINSEN-CHO, SHIBUYA-KU,
TOKYO 150-0045, JAPAN
Quality Uncompromised
Video
Input Resolutions
480i/576i,480p/576p,720p,1080i
1080p (HDMI only)
Output Resolutions
480i/576i(Composite,S-Video only),480p/576p
720p,1080i
1080p (HDMI only)
Signal to Noise Ratio
45 dB
Input Impedance
75 ohms
Output Impedance
75 ohms
Output Level
1.0 volt
HDMI Input/Output:
Version 1.1
FM Tuner
Usable Sensitivity
14.2 dBf
Signal to Noise Ratio (at 65 dBf)
70 dBf
Harmonic Distortion (at 65 dBf)
0.03%
Stereo Separation (1 kHz)
45dB
Output level
1V
Antenna Input
75 ohms unbalanced
®
SURROUND SOUND RECEIVER
RSX-1058
PCB Assembly..................................23~30
Schematic Diagram ..........................31~52
Serial. NO.
Beginning
AM Tuner
Sensitivity
500 µV/m
Signal to Noise Ratio
40 dB
Output level
500 mV
Antenna Input
Loop Antenna
General
Power Consumption
450 watts
100 watts (idle)
4.7 watts (standby)
Power Requirements (AC)
120 volts, 60 Hz (USA version)
230 volts, 50 Hz (CE version)
Weight
17.4 Kg/38.4 lb.
Dimensions (W x H x D)
432 x 162 x 442 mm
17.01"x 6.38"x 17.40"
Front Panel Height
(feet removed/for rack mount)
150 mm / 5.91"
Y-404A-0706/pdf

Advertisement

loading
Need help?

Need help?

Do you have a question about the RSX-1058 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Rotel RSX-1058

  • Page 1 Harmonic Distortion (at 65 dBf) 96/24, LPCM(up to 192k), HDCD, MP3 0.03% Stereo Separation (1 kHz) 45dB Output level Antenna Input 75 ohms unbalanced Serial. NO. THE ROTEL CO., LTD. Beginning SHINSEN-BLD. 4F 10-10 SHINSEN-CHO, SHIBUYA-KU, Y-404A-0706/pdf TOKYO 150-0045, JAPAN...
  • Page 2 Appearance RSX-1058 SURROUND SOUND RECEIVER RSX-1058 STANDBY VOLUME VIDEO5 TUNUING BAND TUNER TAPE1 VIDEO1 VIDEO2 VIDEO3 VIDEO4 PL x MULTI DIRECT MONO MEMORY MODE Neo 6 INPUT MUTE ZONE...
  • Page 3 RSX-1058 Parts List 1/11 SYMBOL PARTS NO. DESCRIPTION 016 X-1407C01-03 PCB ASSY 501 X-1407-C PCB ASSY (SPEAKER) C966-970 044 BQ014E0472J M.P CAPACITOR 100V4700pF C951-955 044 BQ014E0473J M.P CAPACITOR 100V0.047uF R951-955 054 2WS10JF MOF RESISTOR 2W 10 SW100 061 C-4172A13 PUSH SWITCH SPUN12XT131...
  • Page 4 RSX-1058 Parts List 2/11 SYMBOL PARTS NO. DESCRIPTION C111,112,211,212,311,312,411,412,511,512 041 TUTES1H100-7TF ELECTROLYTIC CAPACITOR 50V10uF C108,208,308,408,508 041 TUTES1H220-7TF ELECTROLYTIC CAPACITOR 50V22uF C105,205,305,405,505 041 TUTES1H4R7-7TF ELECTROLYTIC CAPACITOR 50V4.7uF C109,110,209,210,309,310,409,410,509,510 041 TUTES1J471-7TS ELECTROLYTIC CAPACITOR 63V470uF C104,204,304,404,504 043 TC50V181 CERAMIC CAPACITOR 180pF C102,202,302,402,502 043 TC50V271...
  • Page 5 RSX-1058 Parts List 3/11 SYMBOL PARTS NO. DESCRIPTION C523,524,544-571 041 TUTES1H100-7TF ELECTROLYTIC CAPACITOR 50V10uF C535 047 ECJ2VB1H333K CERAMIC CAPACITOR CHIP 0.033uF C622-707,716-722 047 ECJ2VF1H104Z CERAMIC CAPACITOR CHIP 0.1uF C447,509 047 ECJ2VF1H224Z CERAMIC CAPACITOR CHIP 0.22uF C326,330,347,352,478,525,534,536-543 047 ECJ2VG1H101J CERAMIC CAPACITOR CHIP 100pF...
  • Page 6 RSX-1058 Parts List 4/11 SYMBOL PARTS NO. DESCRIPTION 016 E-1487A00 PCB ASSY 501 E-1487 PCB ASSY (DIGITAL) L401-404 021 288800012 DIGITAL COIL IC410 023 CXOSMD-003 CRYSTAL 24.576MHz XT401 023 HC49U-009 CRYSTAL 24.576MHz L411,416 025 BK2125HS101 BEAD COIL CHIP BK2125HS101-T L405,407-409,412,414,415,421...
  • Page 7 RSX-1058 Parts List 5/11 SYMBOL PARTS NO. DESCRIPTION R457,459,461,472,503,504,532-534 055 ERJ3EKF1002V RESISTOR CHIP 10K R577,578,581,582,585,586,589,590 055 ERJ3EKF1003V RESISTOR CHIP 100K R442 055 ERJ3EKF1004V RESISTOR CHIP 1M R401,429,430,443,444,460,492 055 ERJ3EKF10R0V RESISTOR CHIP 10R R531,535,570,575,596,599,600 055 ERJ3EKF10R0V RESISTOR CHIP 10R R495,498,499,502 055 ERJ3EKF1501V RESISTOR CHIP 1.5K...
  • Page 8 RSX-1058 Parts List 6/11 SYMBOL PARTS NO. DESCRIPTION IC620 031 K4S643232H-UC60 IC SMD (SDRAM) IC615 031 NC7SZ08M5-NL IC SMD (AND GATE) IC632-634,637 031 NC7SZ125M5-NL IC SMD (TRISTATE BUFFER) IC614 031 NJW1320FP1 IC SMD (VIDEO SWITCH) IC644 031 PI6CV304LE IC SMD (CLOCK BUFFER)
  • Page 9 RSX-1058 Parts List 7/11 SYMBOL PARTS NO. DESCRIPTION C795-805,811-820,823,826,829,833-836 047 ECJ1VF1H104Z CERAMIC CAPACITOR CHIP 0.1uF C839,844,847-879,882,883,887-892,897 047 ECJ1VF1H104Z CERAMIC CAPACITOR CHIP 0.1uF C900-903,910,913-915,917-921,926-928 047 ECJ1VF1H104Z CERAMIC CAPACITOR CHIP 0.1uF C601-605,636,639,649,651,655,661-663 047 ECJ1VF1H104Z CERAMIC CAPACITOR CHIP 0.1uF C666,668-670,684,685,693,697,698 047 ECJ1VF1H104Z CERAMIC CAPACITOR CHIP 0.1uF...
  • Page 10 RSX-1058 Parts List 8/11 SYMBOL PARTS NO. DESCRIPTION R632 055 ERJ3RQF2R2V RESISTOR CHIP 2.2 L658-660 055 ERJ6GEYJ2R2V RESISTOR CHIP 2.2 JK601,602 066 C-4833A01 2x3P PIN JACK (G/B/R) J601-605 066 C-4963A01 HDMI SOCKET 016 E-1489A00 PCB ASSY 501 E-1489 PCB ASSY (VIDEO)
  • Page 11 RSX-1058 Parts List 9/11 SYMBOL PARTS NO. DESCRIPTION R502-510 055 ERJ3EKF75R0V RESISTOR CHIP 75 R595 055 ERJ3EKF8202V RESISTOR CHIP 82K R524,608-611,615 055 ERJ3GEY0R00V RESISTOR CHIP 0 R598,603 055 ERJ3RQF1R0V RESISTOR CHIP 1 R525-527 055 ERJ3RQF2R2V RESISTOR CHIP 2.2 JK501-503 066 C-4964A01...
  • Page 12 RSX-1058 Parts List 10/11 SYMBOL PARTS NO. DESCRIPTION CP201 068 B8B-PH-KS CONNECTOR WAFER 8P CNT700 068 C-4867A01 FPC CONNECTOR 17P NT401 068 C-4867A04 FFC CONNECTOR 31P 016 X-1491A01-03 PCB ASSY 501 X-1491 PCB ASSY (POWER) T201 022 T-1075N02 SUB TRANSFORMER...
  • Page 13 RSX-1058 Parts List 11/11 SYMBOL PARTS NO. DESCRIPTION HEAT SINK ASSEMBLY (5CH AMP) 505 HSRSX-1058 HEAT SINKER ASSY (with 501 E-1413-C) 017 UF3-08A01 HEAT SINKER BOARD 019 TO-126 MICA SHEET TBM-51W-15 #9524 019 TO-3P MICA SHEET TBM-51W-15 #9043 Q115,215,315,415,515 032 C4137-V...
  • Page 14 Addendum List for Black and Silver RSX1058 SYMBOL PARTS DESCRIPTION 011 FP-625-B BLACK PANEL ASSY 011 FP-625-S SILVER PANEL ASSY 011 UF3-01B00 H/S PANEL H150 012 C-4711A03 KNOB 43F NO MARK (BLK) 012 C-4711A03S KNOB 43F NO MARK (SLV) 012 RV4-09A00 PUSH BUTTON 14F (BLK) 012 RV4-09A01 PUSH BUTTON 14F (SLV)
  • Page 15 RSX-1058 Adjustment Instruments : DC milli–voltmeter Notes : Prior to Bias Adjustment, run about 5minutes with rated output(8ohms) and warm up Power Transistor and Heat Sink. Set input off. Step Coupling Location Adjust Adjust for ONE SIDE OF R541 E-1413 PCB VR501 DC milli–voltmeter reads 4mV...
  • Page 16 RSX-1058 Main Software Upgrade Procedure Install the "Main FlashUp" program which is provided by ROTEL in the computer. And connect RS232 Cable with DB-9 to RJ45 terminations. 1. Click "Open File" -> Select Upgrade file 2. Confirm Port and Baud Rate setting. Then, click "Next"...
  • Page 17 7. The sector is erasing. Wait a moment. 8. The sector is erased. The flash is writing automatically. Wait a while. 9. If the writing and checksum is OK, wait a next 10. Completed all procedure. Power off and on again procedure.
  • Page 18 RSX-1058 Scalar (VIDEO) Upgrade Software Procedure Execute nec flash upgrade.exe then will be created new folder as "C:\Program Files\nec upgrade". Connect upgrade cable between RSX-1058 and PC. Set upgrade enviornment on OSD Menu "OSD Main Menu-> VIDEO/HDMI -> Video Upgrade -> yes " press Enter.
  • Page 19 After pushing "COM" button placed at "HEX" button upper, and choosing COM1~COM4. (connecting PC's COM1 ~COM4 and cable).   >>>>> Push "Connect" button placed at program's below left side,and BaudRate placed next to "COM" button will be displayed if the above process is OK. 10.
  • Page 20 RSX-1058 DSP Upgrade Manager V1.0.0 Procedure Dec.25.’06 Install the “DSP Upgrade Manager_V100” program which is provided by ROTEL in the computer. And connect RS232 Cable with DB-9 to RJ45 terminations. 1. Click “Open File” -> select Upgrade file 2. Confirm Port and Baud Rate setting. Then, click “Next”...
  • Page 21 WIRING 1/2 RSX-1058 PCB,etc POWER 2 POWER 3 SPEAKER (1) AF (E-1413B00) CN204 CP204 (2) AF (E-1413B00) CN205 CP205 (3) POSISTOR CP207 CN406 (4) AF (E-1413B00) CN202 CT202 (5) AF (E-1413B00) CN203 CT203 (6) ZONE (E-1490B00) CN701 P201 (7) CN305 (AUDIO E-1486B00) CP305 (ZONE E-1490B00)
  • Page 22 WIRING 2/2 RSX-1058 WIRING (REAR ASSY) CP502 CP201 TUNER PACK POWER 2 AUDIO DIGITAL ZONE VIDEO INPUT TUNER PACK 092 MB114MA1-1B CP301 CN601 CP601 HDMI (E-1488B00) 501 E-1490(ZONE) HDMI (E-1488B00) CN605 CP605 CP305 (14) AUDIO (E-1486B00) CN304 CP304 CNT700 CNT401...
  • Page 23 RSX-1056/ 57/ V02/ 58 PCB Assembly 1/8 Front PCB 016 X-1408B01~03 Speaker Terminal PCB 016 X-1407C01~03...
  • Page 24 PCB Assembly 2/8 RSX1058 AUDIO PCB 016 E-1486B00 Top View Bottom View...
  • Page 25 PCB Assembly 3/8 RSX-1058 DIGITAL PCB 016 E-1487A00 Top View Bottom View...
  • Page 26 PCB Assembly 4/8 RSX-1058 HDMI IN/OUT PCB 016 E-1488D00 Top View Bottom View...
  • Page 27 PCB Assembly 5/8 RSX-1058 VIDEO PCB 016 E-1489A00 Top View Bottom View...
  • Page 28 PCB Assembly 6/8 RSX-1058 ZONE PCB 016 E-1490B00 Top View Bottom View...
  • Page 29 PCB Assembly 7/8 RSX-1058 POWER PCB 016 X-1491A01~03 Top View Bottom View...
  • Page 30 RSX-1057/ V02/ 58 PCB Assembly 8/8 Power Amplifier 016 E-1413B00 TOP VIEW BOTTOM VIEW...
  • Page 31 Block Diagram 1/3 RSX-1058...
  • Page 32 Block Diagram 2/3 RSX-1058 Video PCB 016 E-1488B HDMI PCB 016 E-1489D...
  • Page 33 RSX-1058 Block Diagram 3/3 POWER & CONTROL PART...
  • Page 34 RSX-1057/ V02/ 58 Schematic Diagram 1/19 FRONT PCB 016 X-1408B01~03...
  • Page 35 RSX-1058 Schematic Diagram 2/19 AUDIO PCB (1/3) 016 E-1486B00...
  • Page 36 Schematic Diagram 3/19 RSX-1058 AUDIO PCB (2/3) 016 E-1486B00...
  • Page 37 Schematic Diagram 4/19 RSX-1058 AUDIO PCB (3/3) 016 E-1486B00...
  • Page 38 Schematic Diagram 5/19 RSX-1058 DIGITAL PCB (1/4) 016 E-1487A00 C168...
  • Page 39 Schematic Diagram 6/19 RSX-1058 DIGITAL PCB (2/4) 016 E-1487A00...
  • Page 40 Schematic Diagram 7/19 RSX-1058 DIGITAL PCB (3/4) 016 E-1487A00 C170...
  • Page 41 Schematic Diagram 8/19 RSX-1058 DIGITAL PCB (4/4) 016 E-1487A00 SPEAKER PCB 016 X-1407C01~03 0 1 6 X - 1 4 0 7 C 0 3 CNT951 CT951 0 1 6 X - 1 4 0 7 C 0 1 0 1 6 X - 1 4 0 7 C 0 2...
  • Page 42 RSX-1058 Schematic Diagram 9/19 HDMI PCB (1/4) 016 E-1488D00...
  • Page 43 RSX-1058 Schematic Diagram 10/19 HDMI PCB (2/4) 016 E-1488D00...
  • Page 44 Schematic Diagram 11/19 RSX-1058 HDMI PCB (3/4) 016 E-1488D00...
  • Page 45 RSX-1058 Schematic Diagram 12/19 HDMI PCB (4/4) 016 E-1488D00...
  • Page 46 RSX-1058 Schematic Diagram 13/19 VIDEO PCB 016 E-1489A00 C181...
  • Page 47 Schematic Diagram 14/19 RSX-1058 ZONE PCB (1/2) 016 E-1490B00...
  • Page 48 Schematic Diagram 15/19 RSX-1058 ZONE PCB (2/2) 016 E-1490B00...
  • Page 49 Schematic Diagram 16/19 RSX-1058 Power PCB (1/2) 016 X-1491A01~03 Transformer 022 T-1109U1...
  • Page 50 Schematic Diagram 17/19 RSX-1058 Power PCB (2/2) 016 X-1491A01~03 C159...
  • Page 51 Schematic Diagram 18/19 AF 016 E-1413B00 RSX-1057/ V02/ 58 C171...
  • Page 52 Schematic Diagram 19/19 RSX-1057/ V02/ 58 Tuner Module 092 MB114MA1-1B C170...
