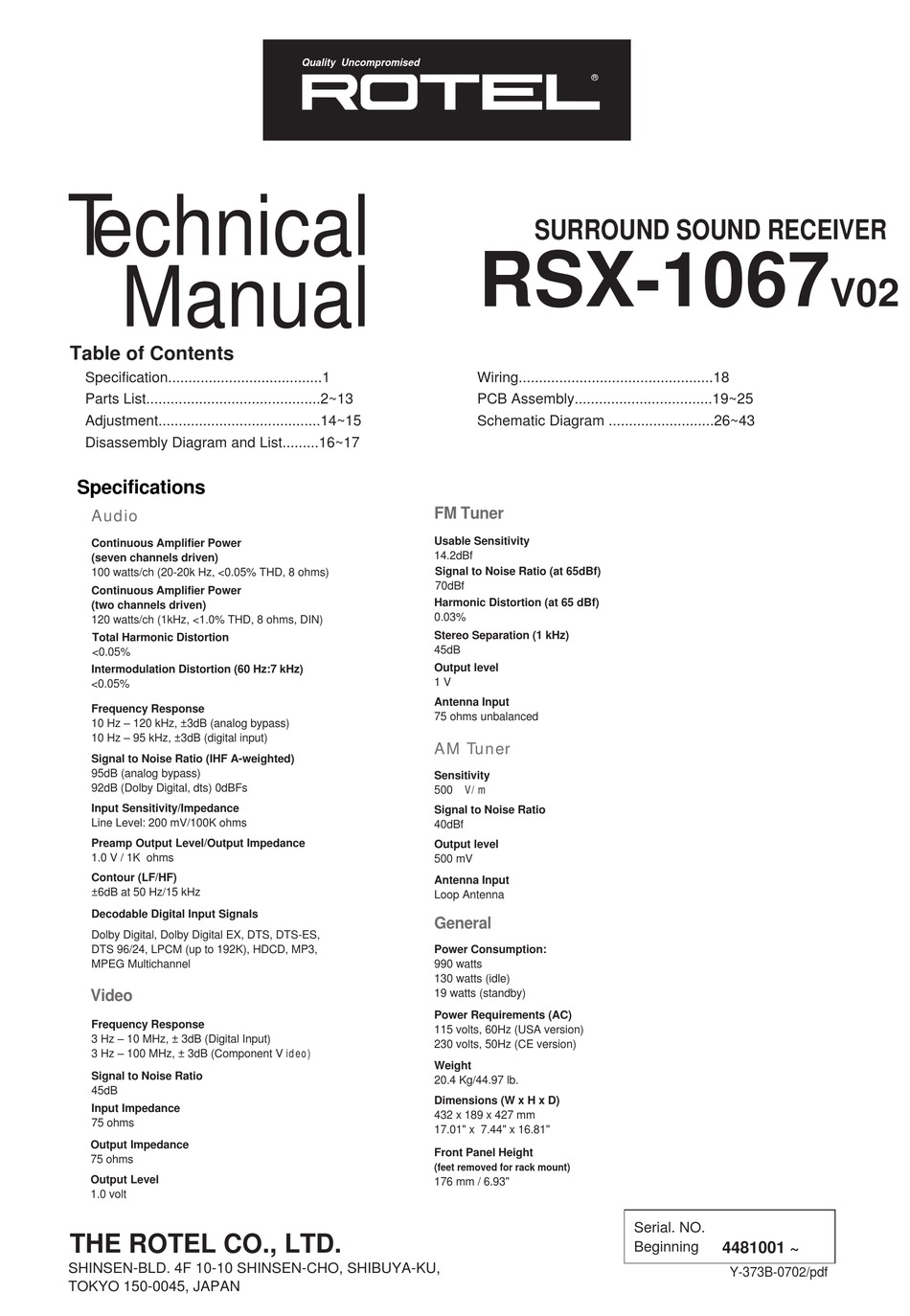

Rotel RSX-1067 V02 Technical Manual

T echnical
Manual
Table of Contents
Specification......................................1
Parts List...........................................2~13
Adjustment........................................14~15
. Disassembly Diagram and List.........16~17
Specifications
Audio
Continuous Amplifier Power
(seven channels driven)
100 watts/ch (20-20k Hz, <0.05% THD, 8 ohms)
Continuous Amplifier Power
(two channels driven)
120 watts/ch (1kHz, <1.0% THD, 8 ohms, DIN)
Total Harmonic Distortion
<0.05%
Intermodulation Distortion (60 Hz:7 kHz)
<0.05%
Frequency Response
10 Hz – 120 kHz, ±3dB (analog bypass)
10 Hz – 95 kHz, ±3dB (digital input)
Signal to Noise Ratio (IHF A-weighted)
95dB (analog bypass)
92dB (Dolby Digital, dts) 0dBFs
Input Sensitivity/Impedance
Line Level: 200 mV/100K ohms
Preamp Output Level/Output Impedance
1.0 V / 1K ohms
Contour (LF/HF)
±6dB at 50 Hz/15 kHz
Decodable Digital Input Signals
Dolby Digital, Dolby Digital EX, DTS, DTS-ES,
DTS 96/24, LPCM (up to 192K), HDCD, MP3,
MPEG Multichannel
Video
Frequency Response
3 Hz – 10 MHz, ± 3dB (Digital Input)
3 Hz – 100 MHz, ± 3dB (Component V ideo)
Signal to Noise Ratio
45dB
Input Impedance
75 ohms
Output Impedance
75 ohms
Output Level
1.0 volt
THE ROTEL CO., LTD.
SHINSEN-BLD. 4F 10-10 SHINSEN-CHO, SHIBUYA-KU,
TOKYO 150-0045, JAPAN
Quality Uncompromised
FM Tuner
Usable Sensitivity
14.2dBf
Signal to Noise Ratio (at 65dBf)
70dBf
Harmonic Distortion (at 65 dBf)
0.03%
Stereo Separation (1 kHz)
45dB
Output level
1 V
Antenna Input
75 ohms unbalanced
AM Tuner
Sensitivity
500 m V/m
Signal to Noise Ratio
40dBf
Output level
500 mV
Antenna Input
Loop Antenna
General
Power Consumption:
990 watts
130 watts (idle)
19 watts (standby)
Power Requirements (AC)
115 volts, 60Hz (USA version)
230 volts, 50Hz (CE version)
Weight
20.4 Kg/44.97 lb.
Dimensions (W x H x D)
432 x 189 x 427 mm
17.01" x 7.44" x 16.81"
Front Panel Height
(feet removed for rack mount)
176 mm / 6.93"
®

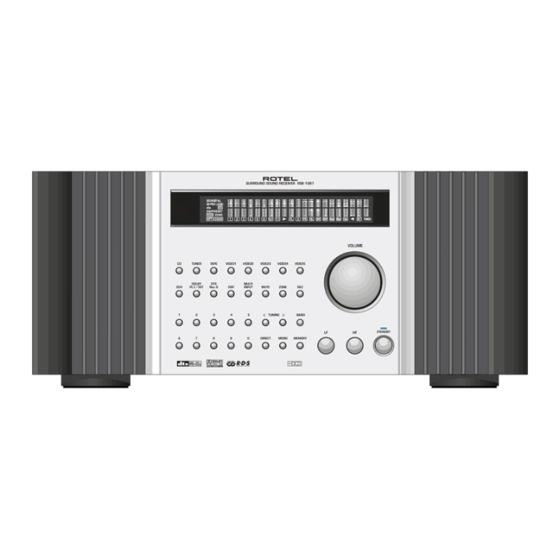

SURROUND SOUND RECEIVER
RSX-1067
Wiring................................................18
PCB Assembly..................................19~25
Schematic Diagram ..........................26~43
Serial. NO.
Beginning
V02
4481001 ~
Y-373B-0702/pdf
