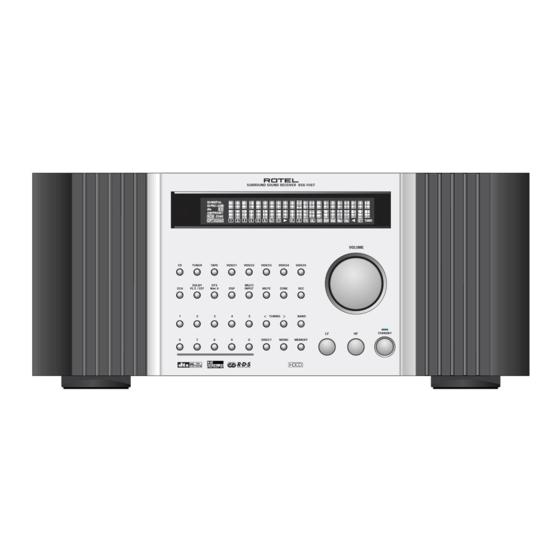

Rotel RSX-1067 Command List
  1. Manuals
  2. Brands
  3. Rotel Manuals
  4. Receiver
  5. RSX-1067
  6. Command list

Rotel RSX-1067 Command List

Rs232 controller command list
Hide thumbs Also See for RSX-1067:
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual See also: Owner's Manual, Technical Manual
Table: RSX 1067 Waveform format expected:
Baud Rate
Parity
19200
Table: RSX 1067 expected format of a request by RS 232 controller:
Start
Count
Device ID
0xFE
0x03
0xC4
Table 1: Type 10 Primary Command List
NOTE: The values in the table below show the exact byte sequence of all requests. The device
will expect the bytes only - no spaces, no delimiter, etc. The controlling device may implement its
own method to download each command sequence. The numerical values in the first column are
Hexadecimal.
RSX 1067 HEX
FE 03 C4 10 00 D7
FE 03 C4 10 01 D8
FE 03 C4 10 02 D9
FE 03 C4 10 03 DA
FE 03 C4 10 04 DB
FE 03 C4 10 05 DC
FE 03 C4 10 06 DD
FE 03 C4 10 07 DE
FE 03 C4 10 08 DF
FE 03 C4 10 09 E0
FE 03 C4 10 0A E1
FE 03 C4 10 0B E2
FE 03 C4 10 0C E3
FE 03 C4 10 0D E4
FE 03 C4 10 0E E5
FE 03 C4 10 0F E6
FE 03 C4 10 10 E7
FE 03 C4 10 11 E8
FE 03 C4 10 12 E9
FE 03 C4 10 13 EA
FE 03 C4 10 14 EB
FE 03 C4 10 15 EC
FE 03 C4 10 16 ED
FE 03 C4 10 17 EE
FE 03 C4 10 18 EF
FE 03 C4 10 19 F0
FE 03 C4 10 1A F1
FE 03 C4 10 1B F2
FE 03 C4 10 1C F3
RSX 1067
RS232 Controller Command List
Valid Data Bits
N
8
Type
Key
0x10
0xXX
Command
RMC Vol+
RMC Vol-
CD
Tuner
Tape
Video 1
Video 2
Video 3
Video 4
Video 5
Power
Vol+
Vol-
Treble+
Treble-
Bass+
Bass-
Stereo
3 Stereo
Pro Logic
DSP
Multi
Dynamic
Rec
OSD Menu
OSD Enter
OSD Right (+)
OSD Left (-)
OSD Up
Stop Bit Value
Handshaking
1
Checksum
0xXX
Command Description
Remote Volume Up
Remote Volume Down
Source CD
Source Tuner
Source Tape
Source Video 1
Source Video 2
Source Video 3
Source Video 4
Source Video 5
Power Toggle
Volume Up
Volume Down
Treble Up
Treble Down
Bass Up
Bass Down
DSP Stereo
DSP Dolby 3 Stereo
DSP Pro Logic
DSP Music
Multi Input
Dynamic Range
Record
OSD Menu
OSD Enter
OSD Right
OSD Left
OSD Up
Data Type
None
String

Advertisement

loading
Need help?

Need help?

Do you have a question about the RSX-1067 and is the answer not in the manual?

Questions and answers

Related Manuals for Rotel RSX-1067

Summary of Contents for Rotel RSX-1067

  • Page 1 RS232 Controller Command List Table: RSX 1067 Waveform format expected: Baud Rate Parity 19200 Table: RSX 1067 expected format of a request by RS 232 controller: Start Count Device ID 0xFE 0x03 0xC4 Table 1: Type 10 Primary Command List NOTE: The values in the table below show the exact byte sequence of all requests.
  • Page 2 RSX 1067 HEX FE 03 C4 10 1D F4 OSD Down / Dynamic FE 03 C4 10 1E F5 Mute FE 03 C4 10 1F F6 Digital In Select FE 03 C4 10 20 F7 Tune / Preset FE 03 C4 10 21 F8 Preset Scan FE 03 C4 10 22 F9 Surround+...
  • Page 3 RSX 1067 HEX FE 03 C4 10 61 38 dts Neo:6 Cinema FE 03 C4 10 62 39 PLII Panorama FE 03 C4 10 63 3A PLII Dimension Up FE 03 C4 10 64 3B PLII Dimension Down FE 03 C4 10 65 3C PLII Center Width Up FE 03 C4 10 66 3D PLII Center Width Down...
  • Page 4 Table 4: Type 15 Record Source Command List RSX 1067 HEX FE 03 C4 15 02 DE Record CD FE 03 C4 15 03 DF Record Tuner FE 03 C4 15 04 E0 Record Tape FE 03 C4 15 05 E1 Record Video 1 FE 03 C4 15 06 E2 Record Video 2...
  • Page 5 RSX 1067 HEX FE 03 C4 16 6A 47 Zone 2 Preset FE 03 C4 16 6B 48 Zone 2 Source FE 03 C4 16 6C 49 Zone 2 Mute On FE 03 C4 16 6D 4A Zone 2 Mute Off Table 6: Commands Sent with exceptions or modifications required RSX 1067 HEX FE 03 C4 16 20 FD...
  • Page 6 Table 9: Type 32 Zone 2 Volume Direct Command List RSX 1067 HEX FE 03 C4 32 00 F9 Zone 2 Volume Min FE 03 C4 32 01 FA Zone 2 Volume 1 FE 03 C4 32 02 FB Zone 2 Volume 2 FE 03 C4 32 03 FC Zone 2 Volume 3 FE 03 C4 32 04 FD...
