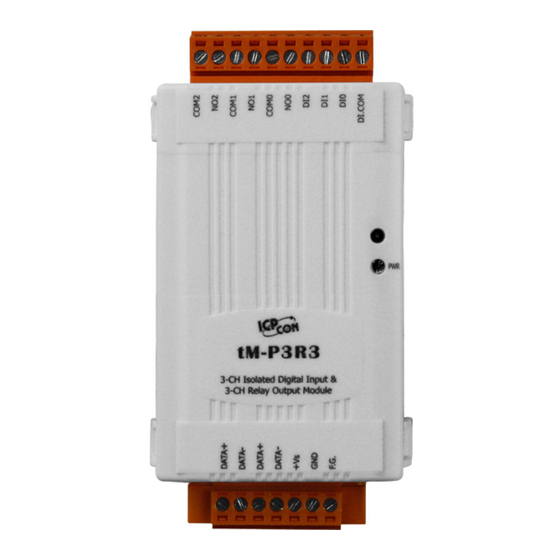

tM-P3R3
3-channel Isolated Digital Input and 3-
channel Relay Output Module
Quick Start Guide
Product Website:
http://www.icpdas-usa.com/tm_p3r3.html
http://www.icpdas-usa.com/dcon_utility_pro.html
1. Introduction
The tM-P3R3 provides 3 channels for digital input and 3 channels for relay output, each
of which features photocouple isolation. All output channels are form A type relays,
while input is based on sink- or souce-type using a wire connecion. All input channels
can be used an 16-bit counters. There are options for configuring power-on and safe
digital output values. 4 kV ESD protection and 3750 VDC intra-module isolation are also
provided.
2. Terminal Assignment
tM-P3R3 3-channel DI and 3-channel Relay Output Module- QuickStart (Nov/2016)
ICP DAS USA, Inc. |
www.icpdas-usa.com
| 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ICP DAS USA tM-P3R3
Summary of Contents for ICP DAS USA tM-P3R3
- Page 1 1. Introduction The tM-P3R3 provides 3 channels for digital input and 3 channels for relay output, each of which features photocouple isolation. All output channels are form A type relays, while input is based on sink- or souce-type using a wire connecion. All input channels can be used an 16-bit counters.
- Page 2 。 Module Address: 01 。 DIO Type: Type 40 。 Baud Rate: 9600 bps tM-P3R3 3-channel DI and 3-channel Relay Output Module- QuickStart (Nov/2016) ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717...
- Page 3 3. Connect the module to the power supply using the +Vs and GND terminals. Note that the voltage supplied should be in the range of +10 to +30V DC. tM-P3R3 3-channel DI and 3-channel Relay Output Module- QuickStart (Nov/2016) ICP DAS USA, Inc. | www.icpdas-usa.com...
- Page 4 It can select multi-options such as Baud Rate, Protocol, Checksum, and Format to search module. The default settings for the module can be found in Section 3. Click OK after selecting the COM port setting. tM-P3R3 3-channel DI and 3-channel Relay Output Module- QuickStart (Nov/2016) ICP DAS USA, Inc. | www.icpdas-usa.com...
- Page 5 DCON Utility Pro supports DCON and Modbus protocol for all ICPDAS and the others modules. 6. Configuration I/O module setting on PC tM-P3R3 3-channel DI and 3-channel Relay Output Module- QuickStart (Nov/2016) ICP DAS USA, Inc. | www.icpdas-usa.com...
- Page 6 If user doesn’t know command, user can select Address and ID, it will show some refer commands as below. User can select necessary command to test or debug modules. tM-P3R3 3-channel DI and 3-channel Relay Output Module- QuickStart (Nov/2016) ICP DAS USA, Inc. | www.icpdas-usa.com...
