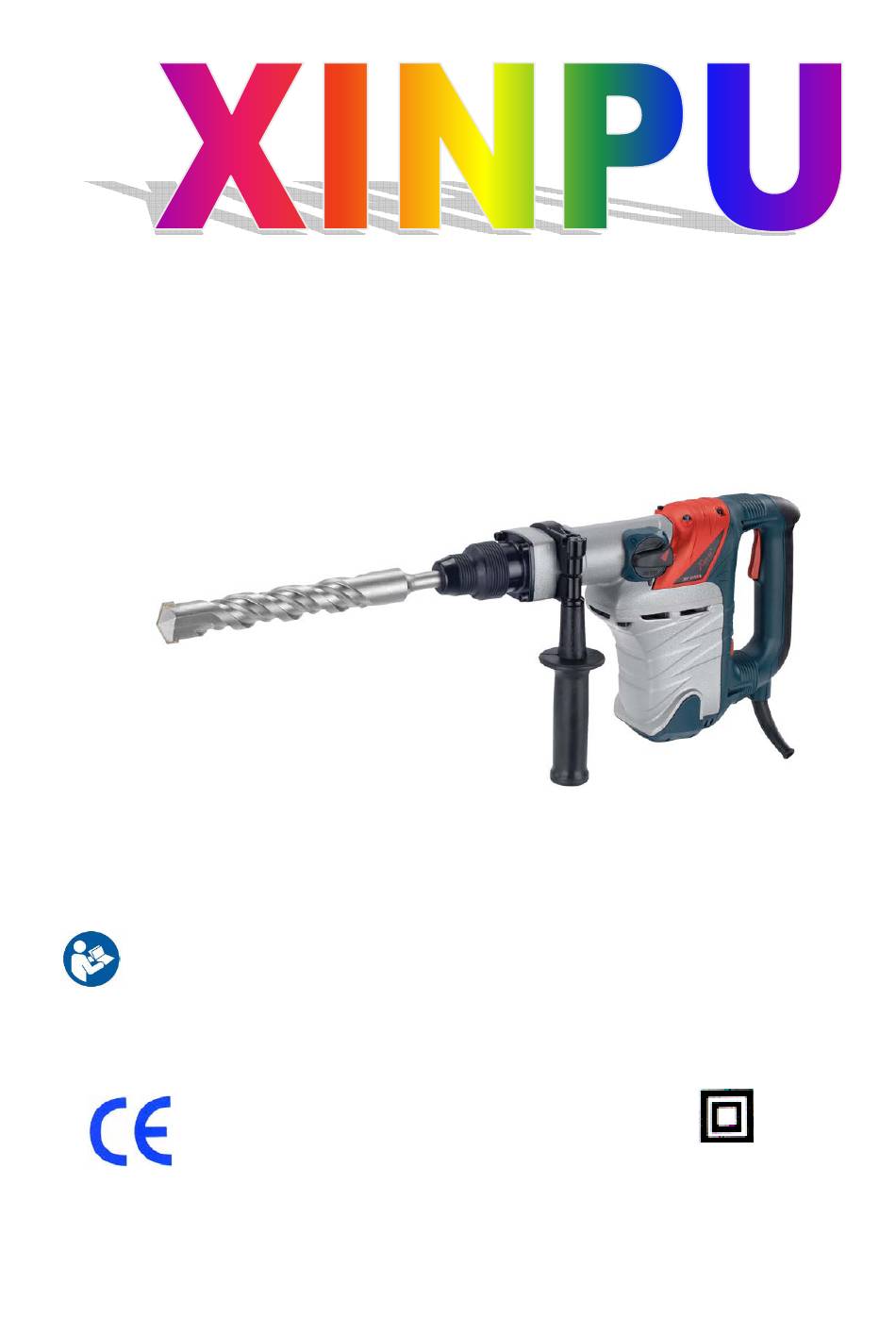

Rotary Hammer
HANDLING INSTRUCTIONS
Before using this XINPU demolition hammer, please carefully read
though these HANDLING INSTRUCTIONS. Ensure that you know how the
machine works, and how it should be operated. Maintain the machine in accordance with
the instructions, and make certain that the machine work correctly, please store this
instriation and other enclosed documents with the machine together.
106, No. 330 National Road, Huajie Industrial Zone, Yongkang City, Zhejiang 321300, P. R. China
Zhejiang Xinpu Industrial & Commercial Co., Ltd.
Model: XP-R40B
Bj:2013
1
Advertisement
Table of Contents
Related Manuals for Xinpu XP-R40B
Summary of Contents for Xinpu XP-R40B
- Page 1 Rotary Hammer Model: XP-R40B HANDLING INSTRUCTIONS Before using this XINPU demolition hammer, please carefully read though these HANDLING INSTRUCTIONS. Ensure that you know how the machine works, and how it should be operated. Maintain the machine in accordance with the instructions, and make certain that the machine work correctly, please store this instriation and other enclosed documents with the machine together.
- Page 3 Tool Part of SDS max shank Front cap Grip Speed Adjuster Knob Pushbutton Selector lever Lever holder Stopper (10) Side handle (11) Core bit (12) Core bit shank (13) Center pin (14) Core bit tip (15) Oil Tank Cover...
- Page 4 Safety instructions In this operator's manual/or machine’s labels following symbols are used: Read the manual carefully Accordance with essential applicable safety of European directives Denote risk of personal injury, loss of life or damage to the tool in case of nonobservance of the instruction in this manual.
-
Page 5: General Safety Rules
GENERAL SAFETY RULES WARNING ！ Read all safety warnings and all instructions failure to follow all warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference The term “power tool” in the warnings refers to your mains operated (corded) power tool or battery operated (cordless) power tool. - Page 6 Carrying power tools with your finger on the switch or plugging in power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach.
-
Page 7: Specifications
6. Wear a dust mask Do not inhale the harmful dusts generated in drilling or chiseling operation. The dust can endanger the health of yourself and bystanders. SPECIFICATIONS Machine Type XP-R40B Voltage 220-240V Power input 1200W Capacity... -
Page 8: Standard Accessories
STANDARD ACCESSORIES (1) Case (Molded plastic)……………………………………………………………1 (2) Side handle ………………………………………………………………………1 (3) Hexagon Bar Wrench (for 6mm screw)………………………………………….1 (4) Hexagon Bar Wrench (for 5mm screw)……………………………………… …1 (5) Hexagon Bar Wrench (for 4mm screw)………………………………………….1 (6) Screwdriver ………………………………………………………………… …1 (7)Carbon Brush (7*11*17mm) …… ………………………………… …………... - Page 9 3. Large dia. hole boring (Rotation + Hammering ) (1)Drill bit (2) Core bit (3) Core bit shank(SDS－max shank) (1)Drill bit ● Applied to drill bit ￠18*110mm ● Applied to core bits 30mm to 60 mm (2) Core bit ● External dia.30mm,35mm,40mm,45mm,50m,55mm,60mm (3) Core bit shank 4.
-
Page 10: Operation
APPLICATIONS ○ Drilling holes in concrete ○ Drilling anchor holes ○ Crushing concrete, chipping, digging, and squaring (by applying optional accessories) Assembly Name of the parts Flex Sheath Crank Housing Function Knob Oil Tank Cover Switch Main handle Cord Speed Adjuster Knob Fan cover (10) Housing (11) Side Handle... - Page 11 4. How to install tool NOTE: For tools such as a bull point and a cold chisel, use only XINPU genuine parts. (1) To attach the tool (SDS max shank), insert it into the hole until it contacts the innermost end of the hole as illustrated in Fig.1.
- Page 12 (c) Release the button to lock the selector lever. NOTE: Turn the selector lever (do not push the button) to check if it is completely locked and make sure that it does not turn. (2)When fixing working positions of tools such as cold chisel, etc., (a) Push the button, release lock and turn the selector lever.
-
Page 13: How To Replace Grease
Before replenishing the grease, turn the power off and pull out the power plug. (1) Remove the crank cover and wipe off the grease inside. (Fig. 17) (2) Supply 30g of XINPU Electric Hammer Grease A (Standard accessory, contained in tube) to the crank case. - Page 14 Repair, modification and inspection of XINPU Power tools must be must be carried out by a XINPU Authorized Service Center. This Parts List will be helpful if presented with the tool to the XINPU Authorized Service Center when requesting repair or other maintenance.
