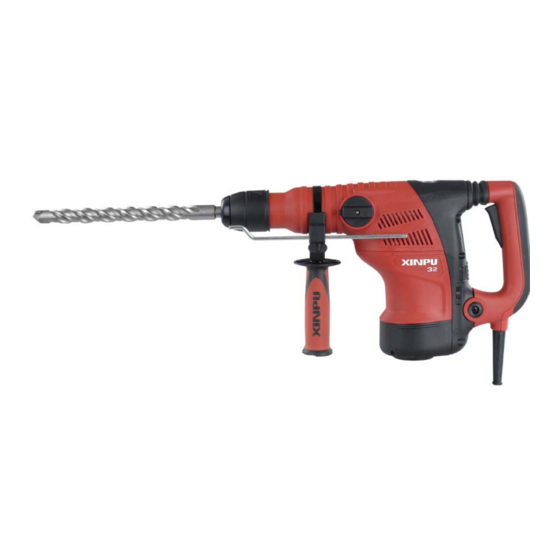

Rotary Hammer
HANDLING INSTRUCTIONS
Original Instructions
Before using this XINPU Rotary hammer, please carefully read though these
HANDLING INSTRUCTIONS. Ensure that you know how the machine works, and how it
should be operated. Maintain the machine in accordance with the instructions, and make
certain that the machine work correctly, please store this instriation and other enclosed
documents with the machine together.
106, No. 330 National Road, Huajie Industrial Zone, Yongkang City, Zhejiang 321300, P. R. China
Zhejiang Xinpu Industrial & Commercial Co., Ltd.
Model: XP-R32VA
Bj:2013
1
Advertisement
Table of Contents
Related Manuals for Xinpu XP-R32VA
Summary of Contents for Xinpu XP-R32VA
- Page 1 HANDLING INSTRUCTIONS Original Instructions Before using this XINPU Rotary hammer, please carefully read though these HANDLING INSTRUCTIONS. Ensure that you know how the machine works, and how it should be operated. Maintain the machine in accordance with the instructions, and make certain that the machine work correctly, please store this instriation and other enclosed documents with the machine together.
- Page 3 Drill bit Part of SDS max shank Turn Staff Armor Flex Sheath Power source Indicator and carbon brushes Indicator Speed Adjuster Knob locked Pushbutton Function Knob Cover (10) Orientation Staff Guage (11) Papilionaceous Short Bolt (12) Core bit (13) Core bit shank (14) Drill bit (15)
-
Page 4: General Power Tool Safety Warnings
General Power Tool Safety Warnings WARNING ： Read all safety warnings and all instructions. Failure to follow all warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refer to your mains operated (corded) power tool or battery operated (cordless) power tool. - Page 5 c) Avoid accidental starting. Ensure the switch is in the off position before plugging in. Carrying power tools with your finger on the switch or plugging in power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
-
Page 6: Safety Instructions
Special requirements for rotary hammer Wear ear protectors with impact drills. Exposure to noise can cause hearing loss. Use auxiliary handles supplied with the tool. Loss of control can cause personal injury. Hold Power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. -
Page 7: Specifications
Waste electrical products should not be disposed of with house hold waste, Please recycle where facilities exist. Check with your local Authority or retailer for recycling advice. SPECIFICATIONS Model No XP-R32VA Product No 8 8018 011 Voltage 220-240V... -
Page 8: Prior To Operation
2. Large dia. hole boring (Rotation + Hammering ) (1)Drill bit (2) Core bit (3) Core bit shank (SDS-max shank) (1)Drill bit ● Applied to core bits 30mm to 90 mm (2) Core bit ● External dia.30mm,35mm,40mm,45mm,50m,55mm,60mm,70mm，75mm，80mm，85mm, 90mm (3) Core bit shank ●... - Page 9 At that spot, pull the flex sheath to the direction of an arrow mark and insert the drill bit all the way until it hits the innermost end. Releasing the flex sheath reverts the flex sheath and secures the drill bit in place. (2) Pull the tool to make sure it is locked completely.
- Page 10 NOTE： Although this machine is equipped with a safety clutch, if the drill bit becomes bound in concrete or other material, the resultant stoppage of the drill bit could cause the machine body to turn in reaction. Ensure that the main handle and side handle are gripped firmly during operation. 3.
-
Page 11: How To Replace Grease
(3) After replenishing the grease, install the oil tank cover securely. NOTE: The XINPU Electric Hammer Grease is of the low viscosity type. If necessary purchase from an XINPU Authorized Service Center. MAINTENANCE AND INSPECTION 1. Inspecting the tool Since use of a dull tool will degrade efficiency and cause possible motor malfunction, sharpen or replace the tool as soon as abrasion is noted. - Page 12 Faulty and /or discarded electrical or electronic apparatus have to be collected at the appropriate recycling location. CAUTION: Repair, modification and inspection of XINPU Power tools must be must be carried out by a XINPU Authorized Service Center. In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.
