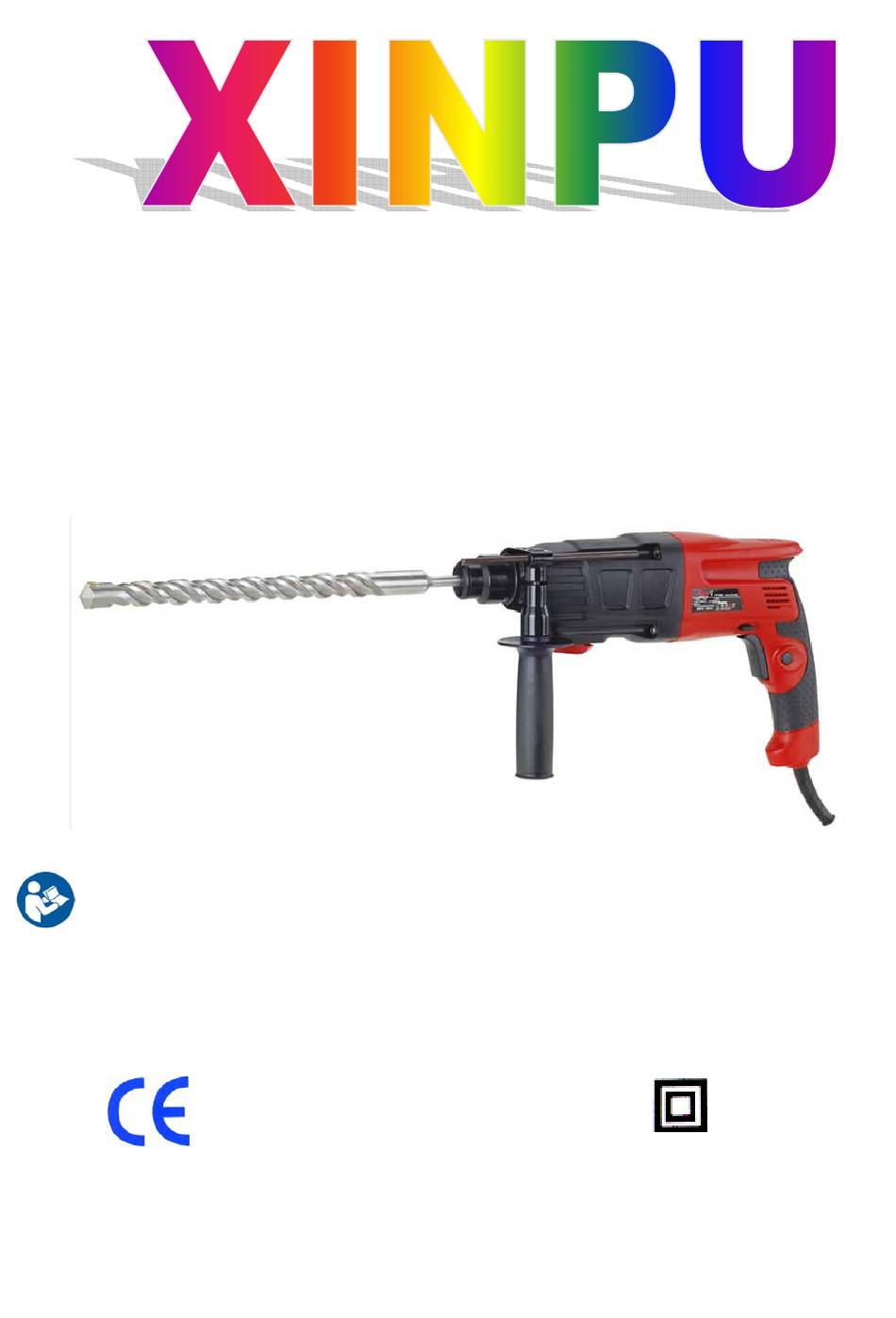

Rotary Hammer
Model: XP-R26A
HANDLING INSTRUCTIONS
Before using this XINPU rotary hammer, please carefully read though these HANDLING
INSTRUCTIONS. Ensure that you know how the machine works, and how it should be operated.
Maintain the machine in accordance with the instructions, and make certain that the machine
work correctly, please store this instriation and other enclosed documents with the machine
together.
Bj: 2013
Zhejiang Xinpu Industrial & Commercial Co., Ltd.
106, No. 330 National Road, Huajie Industrial Zone, Yongkang City, Zhejiang 321300, P. R. China

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XP-R26A and is the answer not in the manual?

Questions and answers

Related Manuals for Xinpu XP-R26A

Summary of Contents for Xinpu XP-R26A

  • Page 1 Model: XP-R26A HANDLING INSTRUCTIONS Before using this XINPU rotary hammer, please carefully read though these HANDLING INSTRUCTIONS. Ensure that you know how the machine works, and how it should be operated. Maintain the machine in accordance with the instructions, and make certain that the machine work correctly, please store this instriation and other enclosed documents with the machine together.
  • Page 4 Drill bit Part of SDS-plus shank Turn Staff Armor Flex Sheath Dust cup Stir Block Function Knob Push button Drill chuck (10) Drill chuck shank (11) Drill chuck shank (D) (12) Driver bit (13) Socket (14) Side handle Staff gauge (15) (16) Mounting hole...

  • Page 5: General Safety Rules

    GENERAL SAFETY RULES WARNING Read all safety warnings and all instructions Failure to follow all warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference The term “power tool” in the warnings refer to your mains operated (corded) power tool or battery operated (cordless) power tool.
  • Page 6 3) Personal safety a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
  • Page 7 g) Use the power tool, accessories and tool bits etc., in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from intended could result in a hazardous situation.
  • Page 9 Cotter Outer diameter Taper mode APPLICABLE DRILL BIT 11.0mm Morse taper(No.1) Drill bit (taper shank) 11.0~17.5mm 12.3mm Morse taper(No.2) Drill bit (taper shank) 21.5mm 12.7mm A-taper Taper shank bit formed A-taper or B-taper is provided 14.3mm as an optional accessory, but the drill bit for it is not B-taper 14.5mm provided.
  • Page 10 3. Large hole boring (rotation + hammering) Drill bit, core bit and core bit shank Drill bit Core bit Core bit shank (SDS-plus shank) Drill bit Core bit (outer diameter) Core bit shank 25mm 29mm Core bit shank(A) 32mm Φ8x110mm 35mm 38mm 45mm...
  • Page 11 7. Bolt placing operation with Chemical Anchor (rotation + hammering) (Standard socket (SDS-plus shank) On the market) 12.7mm Chemical Anchor Adapter 19mm Chemical Anchor Adapter 8. Drilling holes and driving screws (rotation only) Drill chuck, Drill chuck shank(G), special screw and Drill chuck key Special screw Drill chuck (13VLRB-D) Drill chuck shank (G) (SDS-plus shank)

  • Page 12: Prior To Operation

    APPLICATIONS Rotation and hammering function Drilling anchor holes Drilling holes in concrete Drilling holes in tile Rotation only function Drilling in steel or wood (with optional accessories) Tightening machine screws, wood screws (with optional accessories) Hammering only function Light-duty chiseling of concrete, groove digging and edging. PRIOR TO OPERATION 1.

  • Page 13: How To Use

    6. Selecting the driver bit Screw heads or bits will be damages unless a bit appropriate for the screw diameter is employed to drive in the screws. 7. Confirm the direction of bit rotation (Fig.4) The bit rotates clockwise (viewed from the rear side) by pushing the R-side of the stir block. The L-side of the stir block is pushed to turn the bit counterclockwise.
  • Page 14 Do not attempt to drill anchor holes or holes in concrete with the machine set in the rotation only function. Do not attempt to use the rotary hammer in the rotation and hammering function with the drill chuck and drill chuck shank attached. This would seriously shorten the service life of every component of the machine.

  • Page 15: How To Use The Core Bit

    HOW TO USE THE CORE BIT (FOR LIGHT LOAD) When boring penetrating large holes use the core bit (for light loads).At that time use with the drill bit and the core bit shank provided as optional accessories. 1. Mounting CAUTION: Be sure to turn power OFF and disconnect the plug from the receptacle.
  • Page 16 Repair, modification and inspection of Xinpu Power Tools must be carried out by a Xinpu Authorized Service Center. This Parts List will be helpful it presented with the tool to the Xinpu Authorized Serivde Center when requesting repair or other maintenance.
