Xinpu XP-R26DA Handling Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

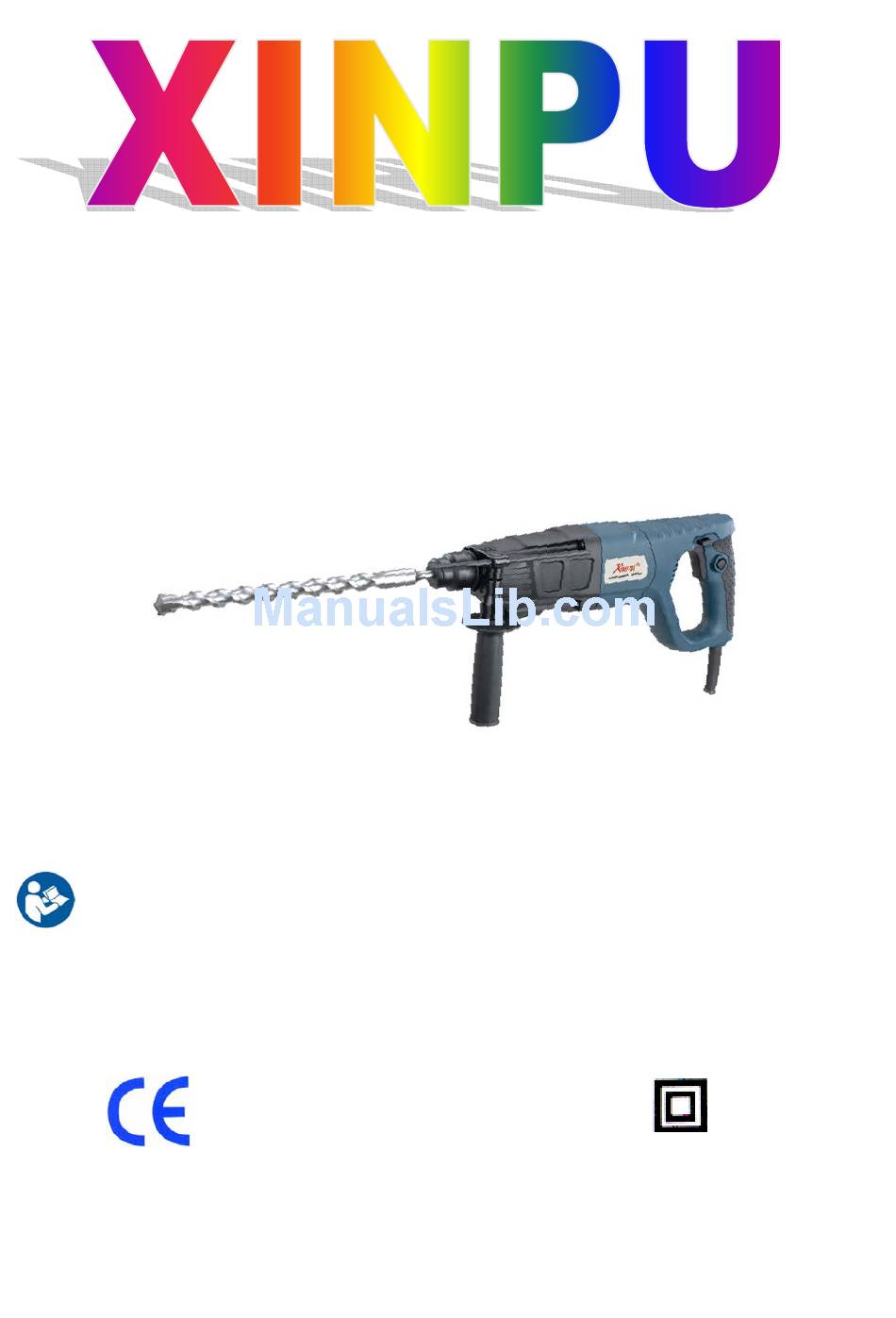

Rotary Hammer
Model: XP-R26DA

HANDLING INSTRUCTIONS

Before using this XINPU rotary hammer, please carefully read though these HANDLING
INSTRUCTIONS. Ensure that you know how the machine works, and how it should be operated.
Maintain the machine in accordance with the instructions, and make certain that the machine
work correctly, please store this instriation and other enclosed documents with the machine
together.
Bj: 2011
Zhejiang Xinpu Industrial & Commercial Co., Ltd.
106, No. 330 National Road, Huajie Industrial Zone, Yongkang City, Zhejiang 321300, P. R. China

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XP-R26DA and is the answer not in the manual?

Questions and answers

Related Manuals for Xinpu XP-R26DA

Summary of Contents for Xinpu XP-R26DA

  • Page 1: Handling Instructions

    Model: XP-R26DA HANDLING INSTRUCTIONS Before using this XINPU rotary hammer, please carefully read though these HANDLING INSTRUCTIONS. Ensure that you know how the machine works, and how it should be operated. Maintain the machine in accordance with the instructions, and make certain that the machine work correctly, please store this instriation and other enclosed documents with the machine together.
  • Page 4 Drill bit Part of SDS-plus shank Turn Staff Armor Flex Sheath Stir Block Function Knob Push button Drill chuck Drill chuck shank (10) Side handle (11) Staff gauge (12) Mounting hole (13) Tape shank bit (14) Cotter (15) Rest (16) Core bit (17) Core bit shank...

  • Page 5: General Safety Rules

    GENERAL SAFETY RULES WARNING Read all safety warnings and all instructions Failure to follow all warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference The term “power tool” in the warnings refer to your mains operated (corded) power tool or battery operated (cordless) power tool.
  • Page 6 b) Use safety equipment. Always wear eye protection. Safety equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Avoid accidental starting. Ensure the switch is in the off position before plugging in. Carrying power tools with your finger on the switch or plugging in power tools that have the switch on invites accidents.
  • Page 7 5) Service a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. Special Warning for Electric hammer • Wear ear protection. Exposure to noise can cause hearing loss. •...

  • Page 8: Specifications

    SPECIFICATIONS Voltage 220-240V~ Power Input 800W No-load speed 0-1200/min Full-load impact rate 0-4800/min Capacity: concrete 3.4-26mm steel 13mm wood 32mm 2.97kg Weight (without cord and side handle) *Be sure to check the nameplate on product as it is subject to change by areas. STANDARD ACCESSORIES (1) Plastic case--------------------------------------------------------------------1 (2)Dual Screw Driver ----------------------------------------------------------1...
  • Page 9 Outer diameter Taper mode APPLICABLE DRILL BIT 11.0mm Morse taper(No.1) Drill bit (taper shank) 11.0~17.5mm 12.3mm Morse taper(No.2) Drill bit (taper shank) 21.5mm 12.7mm A-taper Taper shank bit formed A-taper or B-taper is provided 14.3mm as an optional accessory, but the drill bit for it is not B-taper 14.5mm provided.
  • Page 10 Drill bit Core bit (outer diameter) Core bit shank 25mm 29mm Core bit shank(A) 32mm Φ8x110mm 35mm 38mm 45mm Core bit shank(B) 50mm 4. Demolishing operation (hammering only) Bull point (Round type) (SDS-plus shank) 5. Groove digging and edging (hammering only) Cold chisel (SDS-plus shank) Cutter (SDS-plus shank) 6.

  • Page 11: Prior To Operation

    8.Hammer grease （30g） Optional accessories are subject to change without notice. APPLICATIONS Rotation and hammering function Drilling anchor holes Drilling holes in concrete Drilling holes in tile Rotation only function Drilling in steel or wood (with optional accessories) Hammering only function Light-duty chiseling of concrete, groove digging and edging.

  • Page 12: How To Use

    HOW TO USE CAUTION: To prevent accidents, make sure to turn the switch off and disconnect the plug from the receptacle when the drill bits and other various parts are installed or removed. The power switch should also be turned off during a work break and after work.
  • Page 13 4. Hammering only This rotary hammer can be set to hammering only mode by pressing the push button and turning the to the mark. (Fig.8) unction knob (1)Mount the bull point or cold chisel. (2)Press the push button and set the to middle of Fig.9 function knob...

  • Page 14: Maintenance And Inspection

    LUBRICATION Low viscosity grease is applied to this rotary hammer so that it can be used for a long period without replacing the grease. Please contact the nearest service center for grease replacement when any grease is leaking from loosened screw. Further use of the rotary hammer with lock off grease will cause the machine to seize up reduce the service life.
  • Page 15 Repair, modification and inspection of Xinpu Power Tools must be carried out by a Xinpu Authorized Service Center. This Parts List will be helpful it presented with the tool to the Xinpu Authorized Serivde Center when requesting repair or other maintenance.
