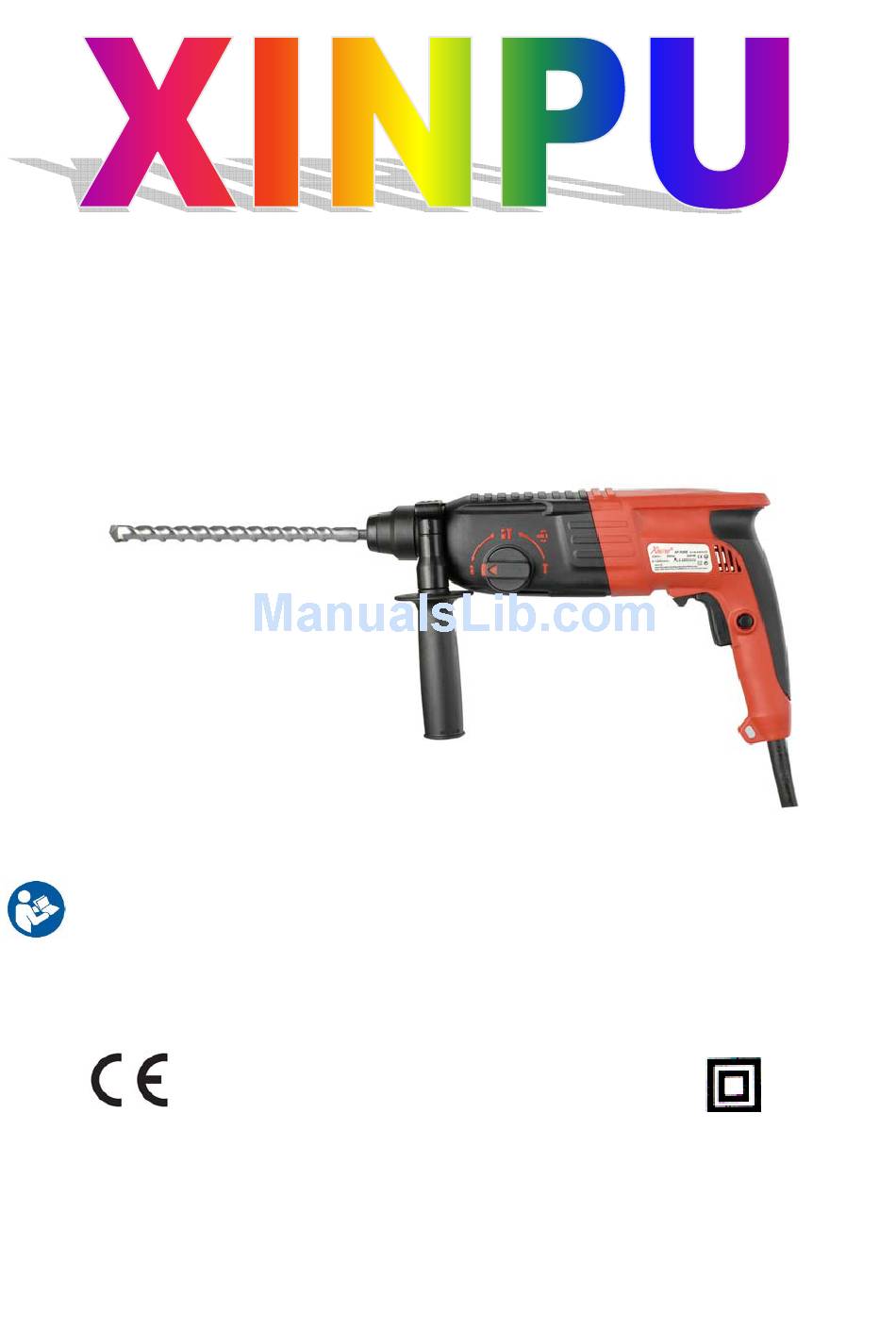

HANDLING INSTRUCTIONS

Original Instructions
Before using this XINPU Rotary hammer, please carefully read though these HANDLING
INSTRUCTIONS. Ensure that you know how the machine works, and how it should be
operated. Maintain the machine in accordance with the instructions, and make certain
that the machine work correctly, please store this instriation and other enclosed
documents with the machine together.
106, No. 330 National Road, Huajie Industrial Zone, Yongkang City, Zhejiang 321300, P. R. China
Zhejiang Xinpu Industrial & Commercial Co., Ltd.
Model: XP-R26B
Bj:2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XP-R26B and is the answer not in the manual?

Questions and answers

Related Manuals for Xinpu XP-R26B

Summary of Contents for Xinpu XP-R26B

  • Page 1: Handling Instructions

    HANDLING INSTRUCTIONS Original Instructions Before using this XINPU Rotary hammer, please carefully read though these HANDLING INSTRUCTIONS. Ensure that you know how the machine works, and how it should be operated. Maintain the machine in accordance with the instructions, and make certain that the machine work correctly, please store this instriation and other enclosed documents with the machine together.
  • Page 3 Drill bit Part of SDS-plus shank Turn Staff Armor Flex Sheath switch reversing bar Function Knob locked Pushbutton Drill chuck Drill chuck shank (10) Auxiliary handle (11) Staff gauge (12) Mounting hole (13) Core bit (14) Core bit shank (15) Thread (16) Drill bit...

  • Page 4: General Power Tool Safety Warnings

    General Power Tool Safety Warnings WARNING ： Read all safety warnings and all instructions. Failure to follow all warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refer to your mains operated (corded) power tool or battery operated (cordless) power tool.
  • Page 5 medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use safety equipment. Always wear eye protection. Safety equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

  • Page 6: Safety Instructions

    conditions and the work to be performed. Use of the power tool for operations different from intended could result in a hazardous situation. 5) Service a) Have your power tool serviced by a qualified repair person using only identical replacement parts.

  • Page 7: Specifications

    Waste electrical products should not be disposed of with house hold waste, Please recycle where facilities exist. Check with your local Authority or retailer for recycling advice. SPECIFICATIONS Model No XP-R26B ID No. 8 8018 012 Voltage AC 220-240V...

  • Page 8: Optional Accessories (Sold Separately)

    OPTIONAL ACCESSORIES (sold separately) 1. Through-hole drilling (Rotation + Hammering) Drill bit (SDS-plus) Outer diameter (mm) Overall length(mm ) 2. Large dia. hole boring (Rotation + Hammering ) (1)Drill bit (2) Core bit (3) Core bit shank (SDS-plus shank) (1)Drill bit ●...

  • Page 9: Prior To Operation

    6. Drilling holes (rotation only) Bolt Drill chuck Drill chuck shank(SDS-plus shank) Drill chuck key Drill chuck ass’y (includes Drill chuck key) and chuck (for drilling in steel or wood). 7. Hammer grease（30g） Optional accessories are subject to change without notice. APPLICATIONS Rotation and hammering function Drilling anchor holes...
  • Page 10 (1) Clean and lightly grease the shank portion of the drill bit. (2) Insert the drill bit in a twisting manner into the tool holder until it latches itself (Fig.1) (3) Pull the drill bit to make sure it is locked completely. (4) To remover the drill bit, fully pull the flex sheath in the direction of the arrow and pull out the drill bit (Fig.2).
  • Page 11 To drill wood or metal material using the drill chuck and drill chuck shank (optional accessories), proceed as follows. Installing drill chuck and drill chuck shank (Fig.7). (1) Attach the drill chuck to the drill chuck shank. (2) Insert the drill chuck shank SDS-plus in a twisting manner into the tool holder until it latches itself CAUTION: Application of force more than necessary will not only expedite the work, but will deteriorate the tip edge of the drill bit and reduce the service life of the rotary hammer in addition.

  • Page 12: How To Replace Grease

    2. Hoe to bore (1) Connect the plug to the power source. (2) Mount the core bit shank on the main body in the same manner as in mounting the drill bit and the bull point. (Fig. 15) (3) When the hole depth reaches approximately 5mm, the hole position can be determined. Then remove the dill bit from the core bit and continue the hole drilling job.
  • Page 13 Faulty and /or discarded electrical or electronic apparatus have to be collected at the appropriate recycling location. CAUTION: Repair, modification and inspection of XINPU Power tools must be must be carried out by a XINPU Authorized Service Center. In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.
