Xinpu P40 Handling Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

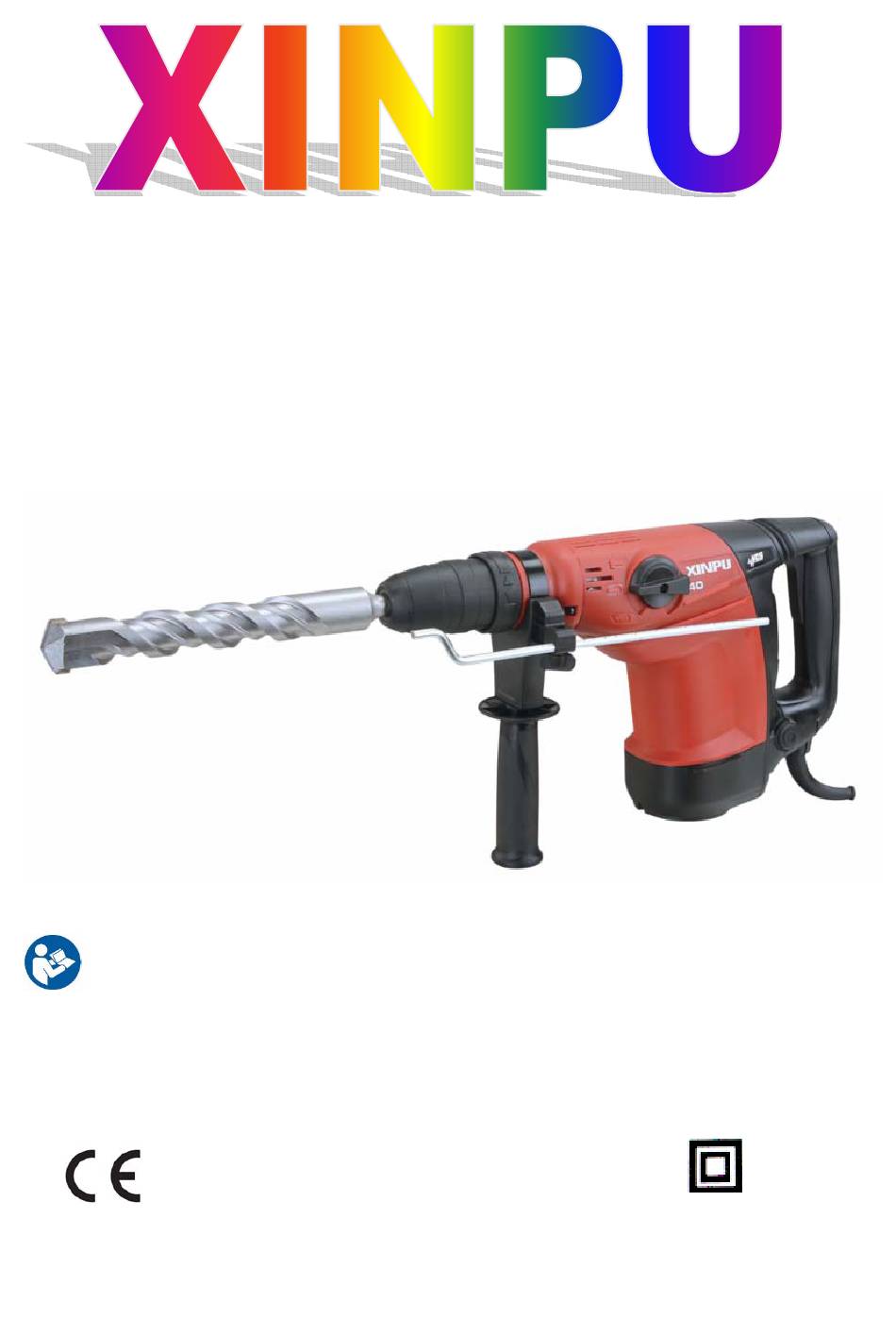

Rotary Hammer
HANDLING INSTRUCTIONS
Original Instructions
Before using this XINPU Rotary hammer, please carefully read though these
HANDLING INSTRUCTIONS. Ensure that you know how the machine works, and how it
should be operated. Maintain the machine in accordance with the instructions, and make
certain that the machine work correctly, please store this instriation and other enclosed
documents with the machine together.
106, No. 330 National Road, Huajie Industrial Zone, Yongkang City, Zhejiang 321300, P. R. China
Zhejiang Xinpu Industrial & Commercial Co., Ltd.
Model: P40
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P40 and is the answer not in the manual?

Questions and answers

Related Manuals for Xinpu P40

Summary of Contents for Xinpu P40

  • Page 1 HANDLING INSTRUCTIONS Original Instructions Before using this XINPU Rotary hammer, please carefully read though these HANDLING INSTRUCTIONS. Ensure that you know how the machine works, and how it should be operated. Maintain the machine in accordance with the instructions, and make certain that the machine work correctly, please store this instriation and other enclosed documents with the machine together.

  • Page 3: General Power Tool Safety Warnings

    Drill bit Part of SDS max shank Hammer rod protector Flex Sheath Orientation Staff Guage Papilionaceous Short Bolt Auxiliary handle Speed Adjuster Knob Power -ON Indicator (10) Service Indicator (11) Function Knob (12) Cover (13) Selector Iist: General Power Tool Safety Warnings Special requirements for rotary hammer Safety Instructions Technical Data...
  • Page 4 2) Electrical safety a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators.
  • Page 5 4) Power tool use and care a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not(use the power tool if the switch does not turn it on and off.

  • Page 6: Safety Instructions

    Safety instructions Read the operating instructions Double insulation before use. General Warning Warning: Electricity Immediately unplug the plug from the main electricity in the case that Wear ear and eye protection. the cord gets damage and during maintenance. SPECIFICATIONS Model No ID No.

  • Page 7: Optional Accessories (Sold Separately)

    OPTIONAL ACCESSORIES (sold separately) 1. Through-hole drilling (Rotation + Hammering) (1) Drill bit (SDS max shank) Outer diameter (mm) Overall length(mm ) 2. Tine Chisel (Hammering) : 18*400mm(SDS max ) 3. Flat Chisel (Hammering) :18*400mm (SDS max ) 4. Big Flat Chisel (Hammering) :18*400mm (SDS max ) 5.

  • Page 8: Prior To Operation

    APPLICATIONS ○ Drilling holes in concrete ○ Crushing concrete, chipping, digging, and squaring (by applying optional accessories) PRIOR TO OPERATION 1. Power source check Ensure that the power source to be utilized conforms to the power requirements specified on the product nameplate.

  • Page 9: Operation

    4. Regulating the number of rotations and hammering (Fig. 3) This Rotary Hammer is equipped with a built-in electronic control circuit that can adjust and regulate the number of rotations and times of hammering. This Rotary Hammer can be used by adjusting the speed adjuster knob, depending upon the contents of operation, such as boring holes into fragile materials, chipping, centering, etc.

  • Page 10: Maintenance And Inspection

    CAUTION: Repair, modification and inspection of XINPU Power tools must be must be carried out by a XINPU Authorized Service Center. In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.
  • Page 11 NOTE: Due XINPU’s continuing program of research and development, the specifications herein are subject to change without prior notice. Disposal Do not dispose of electric tools together with household waste material! In observance of European Directive on waste electrical and electronic equipment and its...
