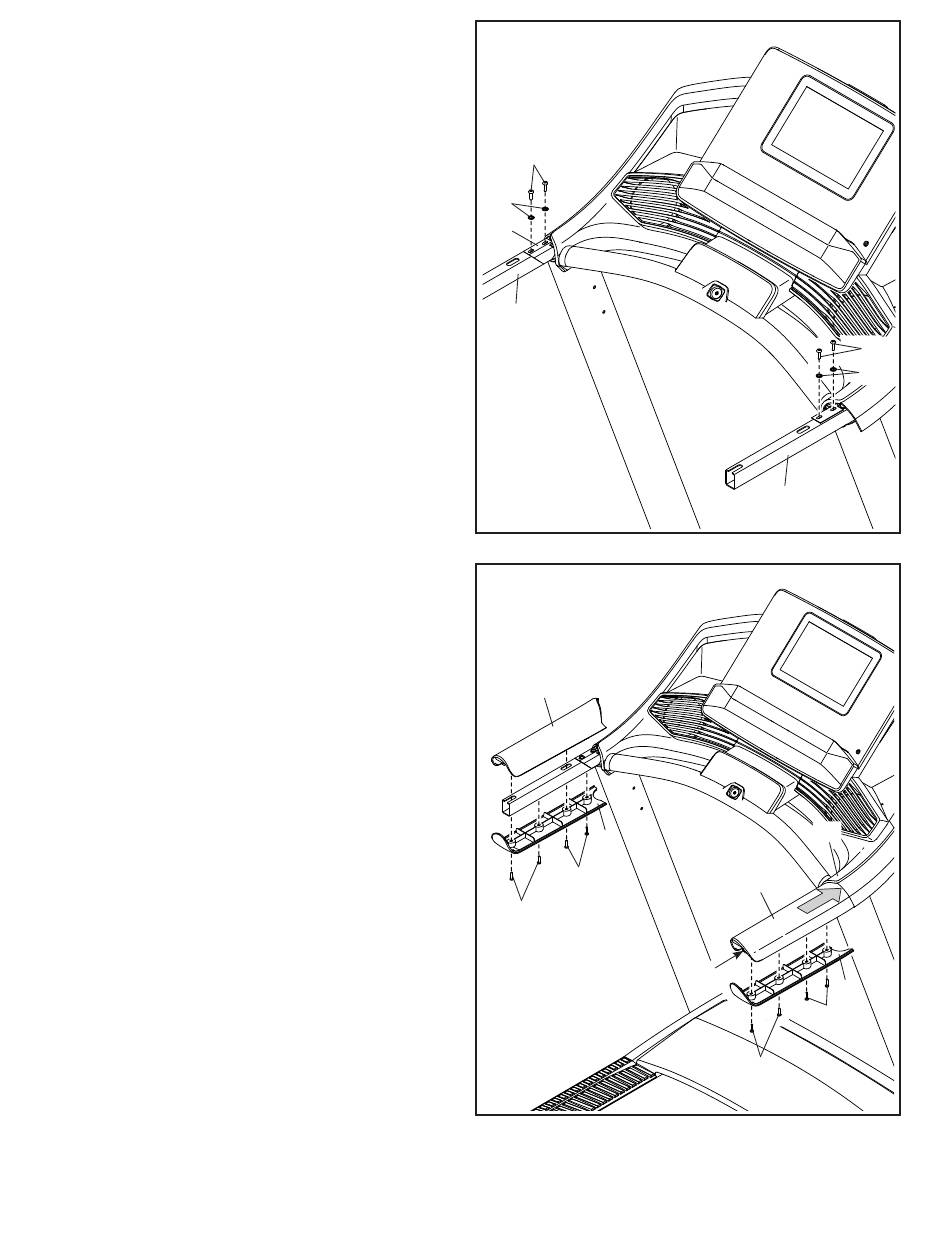

10. IMPORTANT: To avoid damaging the
Crossbar Bottom (87), do not use power
tools and do not overtighten the #10 x 3/4"
Screws (6).
Attach the Crossbar Bottom (87) to the Handrails
(80, 81) with four #10 x 3/4" Screws (6) and four
1/4" Star Washers (10); start all four Screws,
and then tighten them.
11. Identify the Right Handrail Cover (79). Set the
Right Handrail Cover on the Right Handrail (81),
and slide the Right Handrail Cover forward until
it rests against the console assembly (F).
Next, identify the Right Bottom Handrail Cover
(83), and hold it on the bottom of the Right
Handrail (81). Start four #8 x 3/4" Screws (4) into
the bottom of the Right Bottom Handrail Cover;
start all four Screws, and then tighten them.
Attach the Left Handrail Cover (78) and the
Left Bottom Handrail Cover (82) in the same
way.
