MuxLab 500771 Quick Installation Manual

Specifications
Environment DVI 1.0
Devices Computers and servers with DVI monitor ports.
Transmission Transparent to the user
Bandwidth 300MHz
Signals DVI 1.0 protocol, HDCP 1.4
Connectors One (1) DVI receptacle.
One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair.
Two (2) 3.5mm jacks for audio insert (on TX)/audio extract (on RX).
Two (2) 3.5mm jacks for mic-out (on TX)/mic-in (on RX).
One (1) 2.1mm locking barrel jack for power
Note: Cables not included. One (1) or Four (4) USB Connector(s) for Host (on TX)/Client (on RX)
Four (4) DIP Switches for device ID addressing.
Maximum Distance Cat5e/6: 330ft (100m) up to 1080p @ 60Hz and 1920x1200 @ 60Hz
Note: When installed in an electrically noisy environment, an STP cable must be
Based on a maximum length
used. Also, cross-connection reduces the effective distance depending on the grade
of 6.6ft (2m) of DVI cable
of twisted cable used.
per end.
Latency One (1) Frame (16ms) @ 60Hz (typical)
JPEG 2000
Compression
Network Bit Rate 300Mbps (typical)
Network Requirement 1000BaseT with PoE
RJ45 Pin Configuration RJ45 Link
Pin 1 (R) Pin 2 (T)
Reverse Polarity Sensitive.
Pin 3 (R) Pin 6 (T)
Use EIA/TIA 568A or 586B
Pin 4 (R) Pin 5 (T)
straight-through wiring.
Pin 7 (R) Pin 8 (T)
Cable One (1) Cat 5e/6 or better twisted pair cables required
This device supports PoE (PD), an external power supply is not included. It is
Power Source
intended to be powered via a PoE (PSE) Ethernet Switch. If required, an optional
power supply (500993) may be purchased separately.
IEEE 802.3af
PoE Standard
Power Consumption Transmitter: 2.85Watt
Temperature Operating: 0° to 40°C
Humidity: Up to 95% non-condensing
4.40" x 5.08" x 1.00" (112mm x 129mm x 25mm)
Dimensions
Weight 1.5lbs (0.68kg)
Compliance Regulatory: FCC, CE, RoHS
Warranty 3 years
500771 KVM DVI over IP PoE Extender Kit
Order Information
500771-TX KVM DVI over IP PoE Extender TX
500771-RX KVM DVI over IP PoE Extender RX
500920 16-Port Rackmount Transceiver Chassis
Accessories
(These items are sold 500917 Wall Mount Transceiver Bracket Kit
separately) 500993 Univ. Locking Power Supply 5VDC/2.6A US/UK/EU Blade
8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: videoease@muxlab.com
© MuxLab Inc.
Receiver: 2.55Watt
Storage: -20° to 85°C
Flammability: 94V0
Fax: (514) 905-0589
URL: www.muxlab.com
94-000837-B SE-000837-B

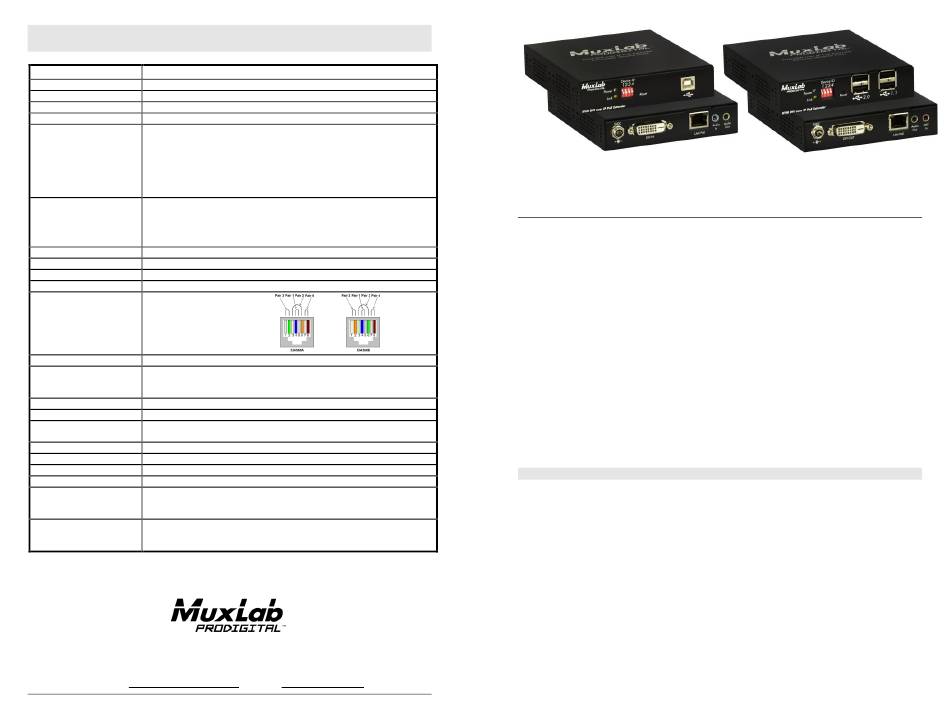

KVM DVI over IP PoE Extender Kit
Quick Installation Guide
Overview
The KVM DVI over IP PoE Extender Kit allows DVI & USB equipment to be connected up to
330ft (100m) up to 1080p resolution @ 60Hz and 1920x1200 @ 60Hz via one (1) Cat5e/6
unshielded twisted pair cable in a point-to-point configuration. The Transmitter (500771-TX) and
Receiver (500771-RX) also support PoE (PD) if used with a PoE (PSE) Ethernet Switch. The kit
comes with one (1) Transmitter and one (1) Receiver. Additional Transmitters and Receivers may
be purchased as kits or purchased separately depending on the number of units required.
For multiple point-to-point (including point-to-multipoint) configurations the Ethernet Switch must
have Gigabit ports, Jumbo Frame capability and DHCP Server capability. MuxLab recommends
using the Cisco SG300 Series Managed Switches.
The MuxLab ProDigital Network Controller (500811) is available to simplify the configuration and
utilization of the 500771 and other MuxLab IP based products via an Ethernet web interface.
Applications
Applications include management of multi-server systems supporting DVI displays in IT
departments within corporations, educational institutions, CAD Design, Graphic Design, Media
Servers, and Data Centers.
Installation
1.

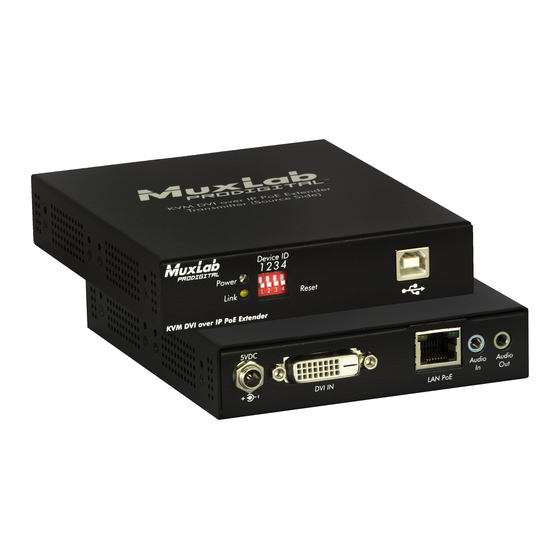

Identify the connectors on the Transmitter and Receiver as indicated on the product labels, see the
above front and rear product views for further details.
2. Verify that the distance between the DVI Transmitter and Receiver is within MuxLab
specifications (see Specifications table for more details).
3.
To install the Transmitter:
3a. Connect the Transmitter DVI port to the Computer DVI port, with a DVI compliant
cable.
3b. Connect the Transmitter USB Port to the Computer USB port, using a compliant Type
A to Type B USB Cable.
3c. If required, connect the computer audio-out and mic-in port to the Transmitter audio-in
and mic-out port, respectively.
3d. If the application is point-to-point, then connect one (1) length of Cat 5e/6 (or higher)
grade UTP cable to the RJ45 LINK connector on the Transmitter. If transmitting over
the network, use an Ethernet Switch between Transmitter and Receiver.
