Item # 1008719327
Model # HDPCP25
USE AND CARE GUIDE

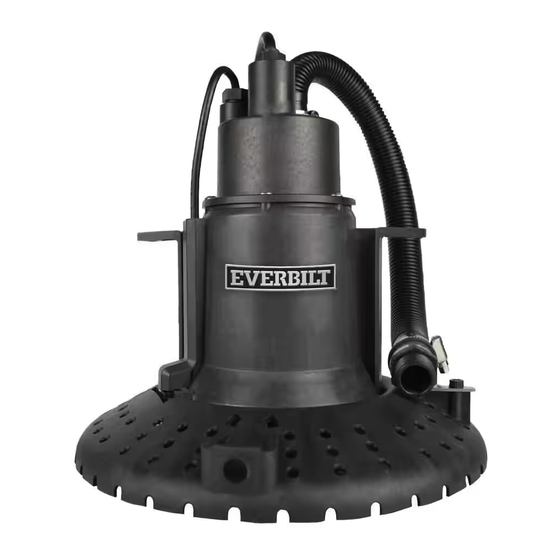

1/4 HP SUBMERSIBLE POOL COVER PUMP
Questions, problems, missing parts? Before returning to the store,
call Everbilt Customer Service
8 a.m. - 5 p.m., EST, Monday-Friday
1-844-883-1872
HOMEDEPOT.COM
THANK YOU
We appreciate the trust and confidence you have placed in Everbilt through the purchase of this 1/4 HP submersible pool
cover pump. We strive to continually create quality products designed to enhance your home. Visit us online to see our full
line of products available for your home improvement needs. Thank you for choosing Everbilt!
Advertisement
Chapters
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Everbilt HDPCP25
Summary of Contents for Everbilt HDPCP25
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Everbilt through the purchase of this 1/4 HP submersible pool cover pump. We strive to continually create quality products designed to enhance your home. Visit us online to see our full...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ............2 Specifications ............. 4 Performance ..............2 Installation ..............5 Safety Information............2 Operation ............... 6 Warranty................. 3 Care and Cleaning ............7 Pre-installation .............. 4 Troubleshooting............8 Application..............4 Performance GPM of Water @ Total Feet of Lift Max Lift 0 ft. -
Page 3: Safety Information
Safety Information (continued) WARNING: This unit is designed only for use on WARNING: Try to keep the pump as straight as 115 volts (single phase), 60 Hz, and is equipped possible. Do not suspend the pump by the with an approved 3-conductor cord and 3-prong discharge hose or power cord. -
Page 4: Pre-Installation
Warranty (continued) This limited warranty is in lieu of any other warranties, express or implied, including any implied warranty of merchantability or fitness for a particular purpose, or otherwise, and of any other obligations or liability on the seller’s part. This limited warranty does not cover non-defect damage, damage caused by improper installation, or care (including but not limited to abuse, misuse, failure to provide reasonable and necessary maintenance, or dismantling or for reinstalling a repaired or replaced product or component). -
Page 5: Installation
Installation Connecting the discharge Placing the pump on the hose pool cover □ Attach a 3/4 in. garden hose and a rope (not □ Place the pump on the pool cover . pump (A). included) to the □ Using a pole, broom, or rake, push the pump to the desired location on the pool cover. -
Page 6: Operation
Operation Operating the pump □ Plug the pump into a properly grounded outlet. When the water level rises to 1-1/4 in., the pump starts. □ □ When the water level drops to 1/4 in., the pump stops. □ When the water level drops to 1/4 in. and the pump does not stop, no-load protection intervenes to stop the pump. -
Page 7: Care And Cleaning
Care and Cleaning Do Not □ When the power is disconnected, inspect the pool □ Do not disassemble the motor housing. This motor cover base and the pump intake screen (bottom of has NO repairable internal parts, and disassembly pump) and remove all debris, then plug the pump may cause leakage or dangerous electrical wiring back into the grounded outlet. -
Page 8: Troubleshooting
Troubleshooting CAUTION: SHUT OFF POWER TO THE PUMP. Problem Possible Cause Corrective Action The motor runs but no water The intake screen or impeller is blocked. Clean the intake screen and impeller. is discharged or flow rate is There is an airlock in the discharge. Clean the airlock release feature (see label lower than expected. - Page 9 Questions, problems, missing parts? Before returning to the store, call Everbilt Customer Service 8 a.m. - 5 p.m., EST, Monday-Friday 1-844-883-1872 HOMEDEPOT.COM Retain this manual for future use. EB-0057 10/2022...
- Page 10 ¡GRACIAS! Nosotros agradecemos la confianza que Usted ha puesto en Everbilt por la compra de esta bomba submergible de 1/4 HP para cubierta para piscina. Nos esforzamos continuamente para crear productos decalidad diseñados para mejorar su hogar. Visítenos en nuestra página de...
- Page 11 Tabla de contenido Índice ................2 Especificaciones ............5 Rendimiento..............2 Instalación ..............Información de seguridad ..........2 Operación ..............Garantía................4 Cuidado y limpieza ............Preinstalación..............4 Solución de problemas ..........Aplicación ..............4 Rendimiento LPM de agua a un total de pies de elevación Elevación máx.
-
Page 12: Información De Seguridad
Información de seguridad (continuación) ADVERTENCIA: No desensamble la carcasa del ADVERTENCIA: Asegúrese de que el circuito motor. El motor NO tiene piezas internas eléctrico hacia la bomba esté protegido por un reemplazables y, si se desensambla, puede causar fusible de 15 amperios como mínimo o un peligrosos problemas de cableado eléctrico y anular interruptor de circuito. -
Page 13: Garantía
Garantía El fabricante garantiza al comprador original que este producto no presentará defectos en los materiales ni de fabricación durante un (1) año a partir de la fecha de compra. Esta garantía limitada se extiende SOLO al comprador original y solo cubre productos comprados como nuevos. -
Page 14: Especificaciones
Pre -instalación (continuación) ESPECIFICACIONES 115 V, 60 HZ Suministro de electricidad necesario Corriente nominal 3.0 A Rango de temperatura de los De 32 °F a 95 °F (de 0 °C a 35 °C) I,quidos Se requiere circuito de Mínimo 15 amperios derivación individual Conexión de descarga Conexión para manguera para jardín de... -
Page 15: Operación
Operación Funcionamiento de la bomba □ Enchufe la bomba en un tomacorriente con la debida conexión a tierra. Cuando el nivel del agua sube a 1-1/4 pulg, la bomba arranca. □ □ Cuando el nivel del agua baja a 1/4 pulg, la bomba se detiene. □... -
Page 16: Cuidado Y Limpieza
Cuidado y limpieza Qué debe hacer Qué no debe hacer □ Cuando desconecte la alimentación, inspeccione la □ No desensamble la carcasa del motor. Este motor base para la cubierta para piscina y la malla de NO tiene piezas internas reparables y, si se entrada (parte inferior de la bomba) y retire todos los desensambla, puede causar una fuga o peligrosos desechos, luego vuelva a enchufar la bomba al... -
Page 17: Solución De Problemas
Solución de problemas PRECAUCIÓN: CORTE LA ALIMENTACIÓN A LA BOMBA. Problema Causa posible Acción correctiva El motor funciona, pero no La malla de entrada o el impulsor Limpie la malla de entrada y el impulsor. se descarga agua o el están obstruidos. - Page 18 ¿Preguntas, problemas, piezas que galtan? Antes de devolverla a la tienda, llame a Servicio al Cliente de 8 a.m. a 5 p.m., EST, Lunes a Viernes 1-844-883-1872 HOMEDEPOT.COM Conserve este manual para uso futuro. EB-0057 10/2022...
Need help?
Do you have a question about the HDPCP25 and is the answer not in the manual?
Questions and answers
When I took it apart to clean (as it wasn't working), water and oil came out. How do I replace the lost oil?
The Everbilt HDPCP25 pump motor has no repairable internal parts, and disassembling it may cause leakage or electrical issues. There is no instruction for replacing lost oil in the pump. If the pump is damaged, it may need to be replaced.
This answer is automatically generated
