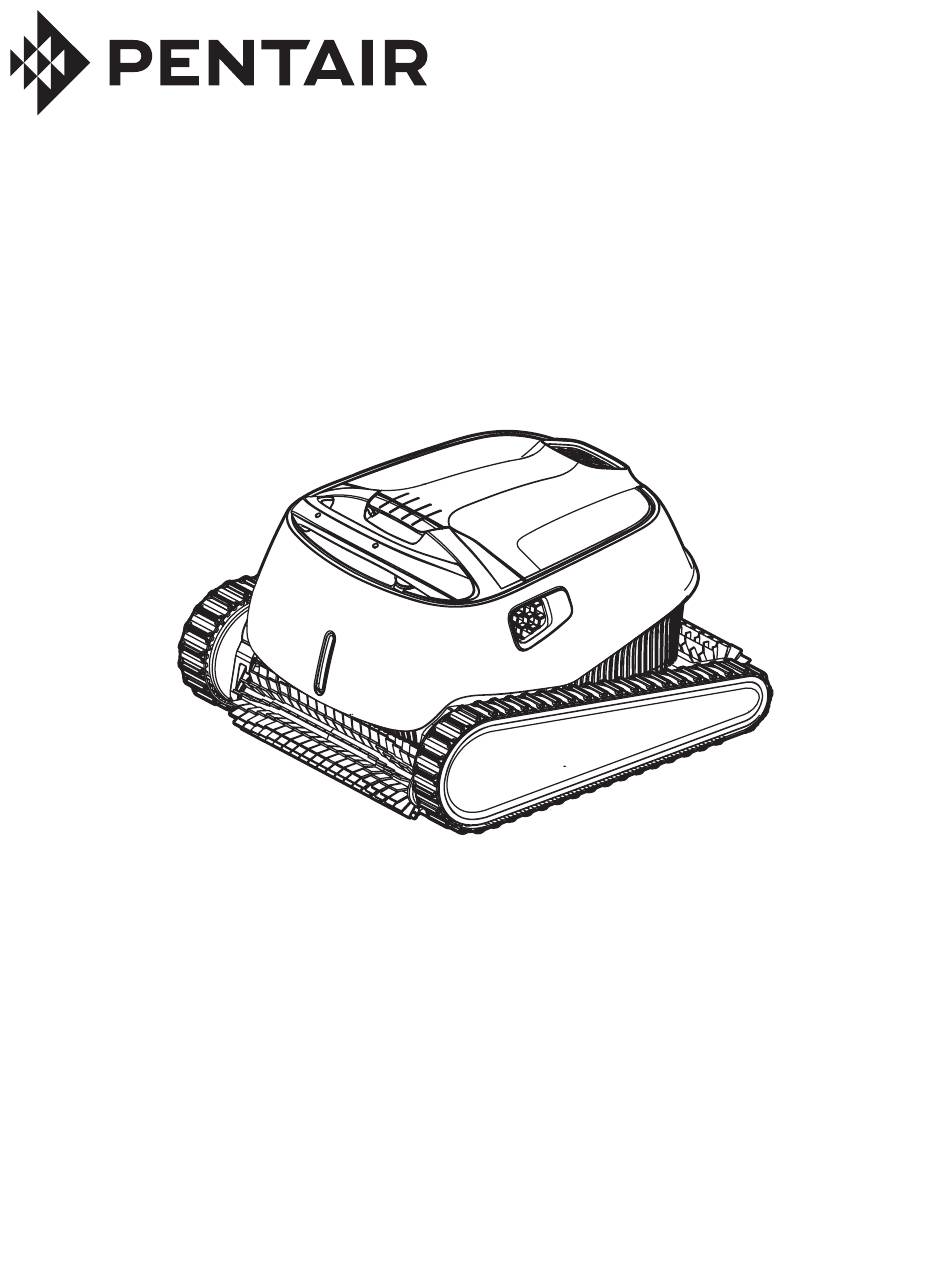

- Page 1 KREEPY KRAULY PROWLER ® ® ROBOTIC INGROUND POOL CLEANER INSTALLATION AND USER’S GUIDE IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS SAVE THESE INSTRUCTIONS...
-
Page 2: Table Of Contents
CUSTOMER SERVICE / TECHNICAL SUPPORT If you have questions about ordering Pentair Aquatic Systems replacement parts, and pool products, please use the following contact information: Customer Service (8 A.M. to 4:30 P.M. — Eastern Technical Support and Pacific Times) Sanford, North Carolina (8 A.M. to 4:30 P.M. ET) -
Page 3: Important Warning And Safety Instructions
Can trap and tear hair or body parts. Hose can trip or finish or the vinyl liner, Pentair Aquatic Systems disclaims any liability for entangle swimmers which could result in drowning. - Page 4 IMPORTANT WARNING AND SAFETY INSTRUCTIONS Disclaimer of Liability About your Pool and PROWLER 920 There are a multitude of factors that contribute to the life of your pool. The Prowler 920 robotic pool cleaner are very passive products that will have no impact on pool life.
-
Page 5: Preperation Of The Pool And Cleaner
PREPARATION OF THE POOL AND CLEANER Overview Prowler 920 Robotic Pool Cleaners are designed to scrub, vacuum, and filter (including the waterline) your inground ® pool. Before operating this product, be sure to read and follow all warning and safety instructions on pages ii-iii. Cleaner Components: Cleaner with 60 Ft. - Page 6 STEP 4: STEP 5: Connect Power Supply to Power Source Placing the Cleaner in the Pool Connect the power supply to the electrical source/outlet. Do not switch the pool cleaner to “ON” if it is not See Figure 4. fully immersed in water. Operating the cleaner out of water will immediately cause severe damage and will result in loss R I S K O F E L E C T R I C A L S H O C K O R of warranty.
-
Page 7: Operation
OPERATION Weekly Timer The power supply has a timer control that allows you to set an automatic cleaning schedule each week. Be sure the cleaner is fully immersed in water before turning on the power. Setting the Weekly Timer 3 Schedule When the power supply is switched on, you may choose a pool cleaning LEDs schedule for the coming week by pressing the Weekly Timer button. -
Page 8: Maintenance
MAINTENANCE Make sure the cleaner’s power supply is turned “OFF” and is disconnected from the electrical source/outlet before servicing the cleaner. Moving parts may injure hands or fingers if cleaner inadvertently powers on during servicing. Figure 8 LED Indicator Lights The Prowler 920 Robotic Pool Cleaner includes an LED indicator just ®... -
Page 9: Cleaning The Filter Basket
Cleaning the Filter Basket Note: It is highly recommended that you clean the filter basket after each cleaning cycle. Too much debris in the filter will restrict the suction power of the Prowler 920 Robotic Pool Cleaner and reduce its effectiveness. ®... -
Page 10: Periodic Filter Screen Cleaning
Periodic Filter Screen Cleaning Note: It is recommended that you clean the filter screens at least once a month. Too much debris in the filter screens will restrict the suction power of the Prowler 920 Robotic Pool Cleaner and reduce its effectiveness. ®... -
Page 11: Cleaning The Impeller
Cleaning the Impeller Always disconnect power to the cleaner before servicing, disassembly, or reassembly. Failure to do so could result in death or serious injury to servicemen, pool users or others due to electrical shock. Read all servicing instructions before servicing the cleaner. Every so often debris may become trapped in the Prowler 920 Robotic Pool Cleaner’s impeller. -
Page 12: Storing The Cleaner
STEP 6: STEP 5: Remount the Intermediate Cover and Manifold Remount the Impeller Cover Assembly Gently push the impeller cover back onto the impeller assembly. See Figure 25. Reseat the intermediate cover and manifold assembly and reinstall the two screws that hold the cover and manifold The tabs on the motor unit will lock the cover into place. -
Page 13: Troubleshooting
TROUBLESHOOTING Problem Possible Cause Corrective Action Cable twisting or cable Obstruction in pool Remove obstruction in pool. coils up. Gets stuck on main drain cover Turn off filter and install main drain cover ring. Straighten cable and lay in sun periodically. Excess cable in the pool Remove excess cable from pool. -
Page 14: Replacement Parts
REPLACEMENT PARTS Illustrated Parts List Prowler 920 Parts List Item # Part # Description 360360 Power Supply 360361 Communication Cable 360362 Filter Basket 360363 Cartridge Filter Kit 360364 Net Filter Kit 360365 Motor Unit Front Brush Mounting, 360366 Left Front Brush Mounting, 360366 Right 360367... - Page 15 NOTES...
