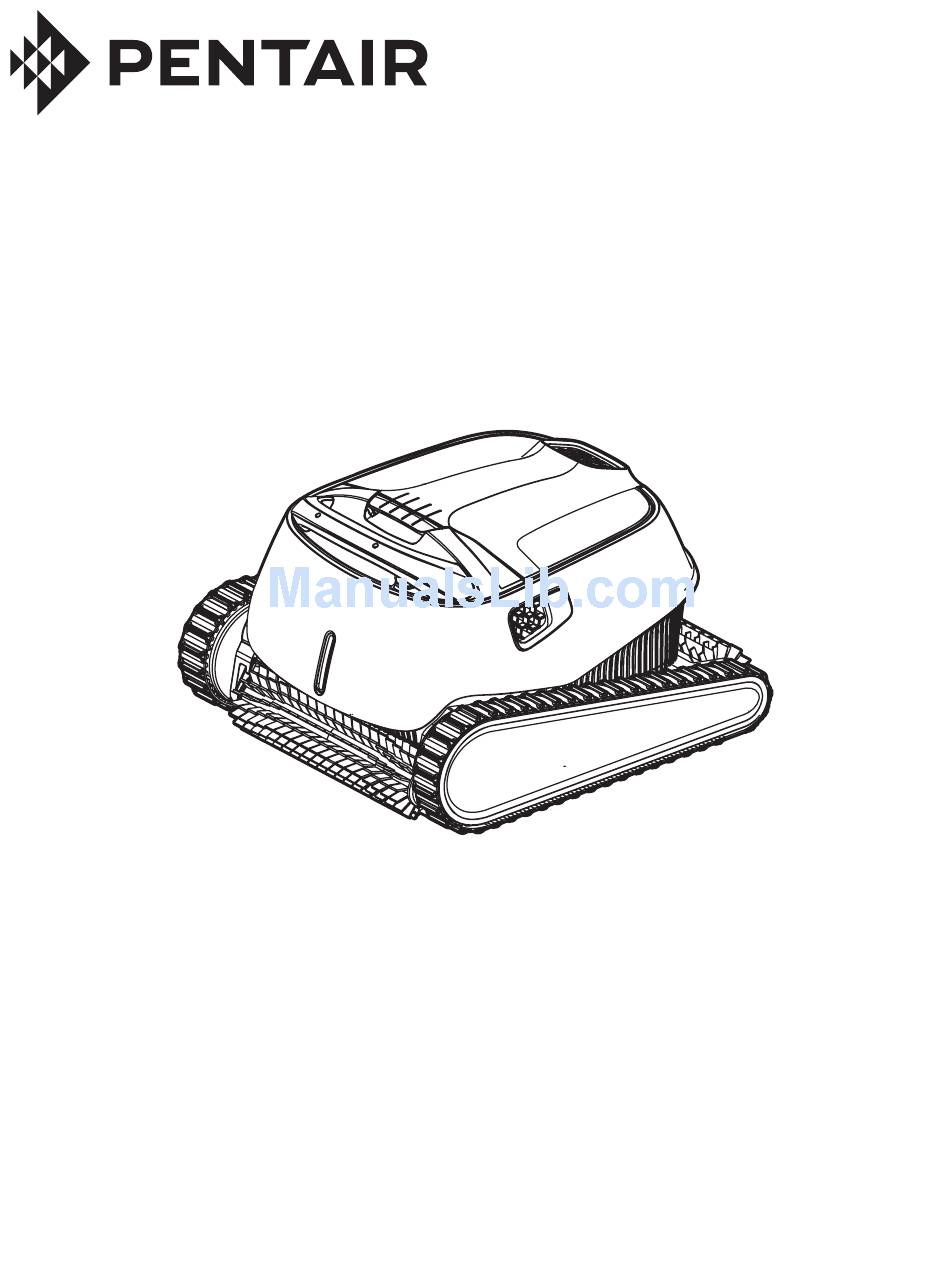

- Page 1 KREEPY KRAULY PROWLER ® ® ROBOTIC INGROUND POOL CLEANER INSTALLATION AND USER’S GUIDE IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS SAVE THESE INSTRUCTIONS...
-
Page 2: Table Of Contents
CUSTOMER SERVICE / TECHNICAL SUPPORT If you have questions about ordering Pentair Aquatic Systems replacement parts, and pool products, please use the following contact information: Customer Service (8 A.M. to 4:30 P.M. — Eastern Technical Support and Pacific Times) Sanford, North Carolina (8 A.M. to 4:30 P.M. ET) -
Page 3: Important Warning And Safety Instructions
Can trap and tear hair or body parts. Hose can trip or finish or the vinyl liner, Pentair Aquatic Systems disclaims any liability for entangle swimmers which could result in drowning. - Page 4 IMPORTANT WARNING AND SAFETY INSTRUCTIONS Disclaimer of Liability About your Pool and PROWLER 930 There are a multitude of factors that contribute to the life of your pool. The Prowler 930 robotic pool cleaner are very passive products that will have no impact on pool life.
-
Page 5: Preparation Of The Pool And Cleaner
PREPARATION OF THE POOL AND CLEANER Overview Prowler ® 930 Robotic Pool Cleaners are designed to scrub, vacuum, and filter (including the waterline) your inground pool. Before operating this product, be sure to read and follow all warning and safety instructions on pages ii-iii. Cleaner Components: Cleaner with 60’... - Page 6 STEP 3: STEP 5: Connect Power Supply to Cleaner Placing the Cleaner in the Pool Connect the communication cable to the power supply. Do not switch the pool cleaner to “ON” if it is not Ensure the connector notch is lined up with the fully immersed in water.
-
Page 7: Caddy Assembly
Caddy Assembly The following section contains instructions for assembling the included cleaner caddy: STEP 1: STEP 3: Figure 9 Removing the Communication Cable Holder Installing the Handle Support 1. While holding the caddy chassis in place, pull the top of the communication cable holder straight out until it 1. - Page 8 STEP 5: STEP 7: Figure 12 Install the Caddy Handle Install the Power Cable Holder 1. Insert the caddy handle 1. Using the final two shorter Phillips-head screws into the handle support. provided with the caddy, secure the power cable holder See Figure 12.
-
Page 9: Operation
OPERATION Control Panel Overview 3 Schedule 2 Cleaning Delayed Bluetooth Wireless Technology ® LEDs Speed LEDs Start LED Connection Indicator Weekly Timer Cleaning Delayed Start On/Off Button Speed Button Button Button Weekly Timer Feature The power supply has a timer control that allows you to set an automatic cleaning schedule each week. Be sure the cleaner is fully immersed in water before turning on the power. -
Page 10: Delayed Start
Delayed Start Feature The Prowler 930 Robotic Pool Cleaner includes a Delayed Start feature that allows the owner to delay the cleaner’s ® start time for two hours. This delay allows time for debris to settle on the pool floor and walls after use, resulting in more effective and thorough cleaning. -
Page 11: Maintenance
MAINTENANCE Make sure the cleaner’s power supply is turned “OFF” and is disconnected from the electrical source/outlet before servicing the cleaner. Moving parts may injure hands or fingers if cleaner inadvertently powers on during servicing. Figure 16 LED Indicator Lights The Prowler 930 Robotic Pool Cleaner includes an LED indicator just ®... -
Page 12: Cleaning The Filter Baskets
Cleaning the Filter Baskets Note: It is highly recommended that you clean the filter baskets after each cleaning cycle. Too much debris in the filter will restrict the suction power of the Prowler 930 Robotic Pool Cleaner and reduce its effectiveness. ®... -
Page 13: Periodic Filter Screen Cleaning
Periodic Filter Screen Cleaning Note: It is recommended that you clean the filter screens at least once a month. Too much debris in the filter screens will restrict the suction power of the Prowler 930 Robotic Pool Cleaner and reduce its effectiveness. ®... -
Page 14: Cleaning The Impeller
Cleaning the Impeller Always disconnect power to the cleaner before servicing, disassembly, or reassembly. Failure to do so could result in death or serious injury to servicemen, pool users or others due to electrical shock. Read all servicing instructions before servicing the cleaner. Every so often debris may become trapped in the Prowler 930 Robotic Pool Cleaner’s impeller. -
Page 15: Storing The Cleaner
STEP 6: STEP 5: Remount the Intermediate Cover and Manifold Remount the Impeller Cover Assembly Gently push the impeller cover back onto the impeller assembly. See Figure 34. Reseat the intermediate cover and manifold assembly and reinstall the two screws that hold the cover and manifold The tabs on the motor unit will lock the cover into place. -
Page 16: Troubleshooting
TROUBLESHOOTING Problem Possible Cause Corrective Action Cable twisting or cable Obstruction in pool Remove obstruction in pool. coils up. Gets stuck on main drain cover Turn off filter and install main drain cover ring. Straighten cable and lay in sun periodically. Excess cable in the pool Remove excess cable from pool. -
Page 17: Replacement Parts
REPLACEMENT PARTS Illustrated Parts List Item # Part # Description 360360 Power Supply 360446 Communication Cable 360362 Outer Filter Basket 360445 Inner Filter Basket 360363 Cartridge Filter Kit 360449 Net Filter Kit 360365 Motor Unit Front Brush Mounting, 360366 Left Front Brush Mounting, 360366 Right... - Page 18 NOTES...
- Page 19 NOTES...
- Page 20 ® mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Pentair Water Pool and Spa, Inc. is under license. Other trademarks and trade names are those of their respective owners. Unless expressly noted, names and brands of third parties that may be used in this document are not used to indicate an affiliation or endorsement between the owners of these names and brands and Pentair Water Pool and Spa, Inc.
