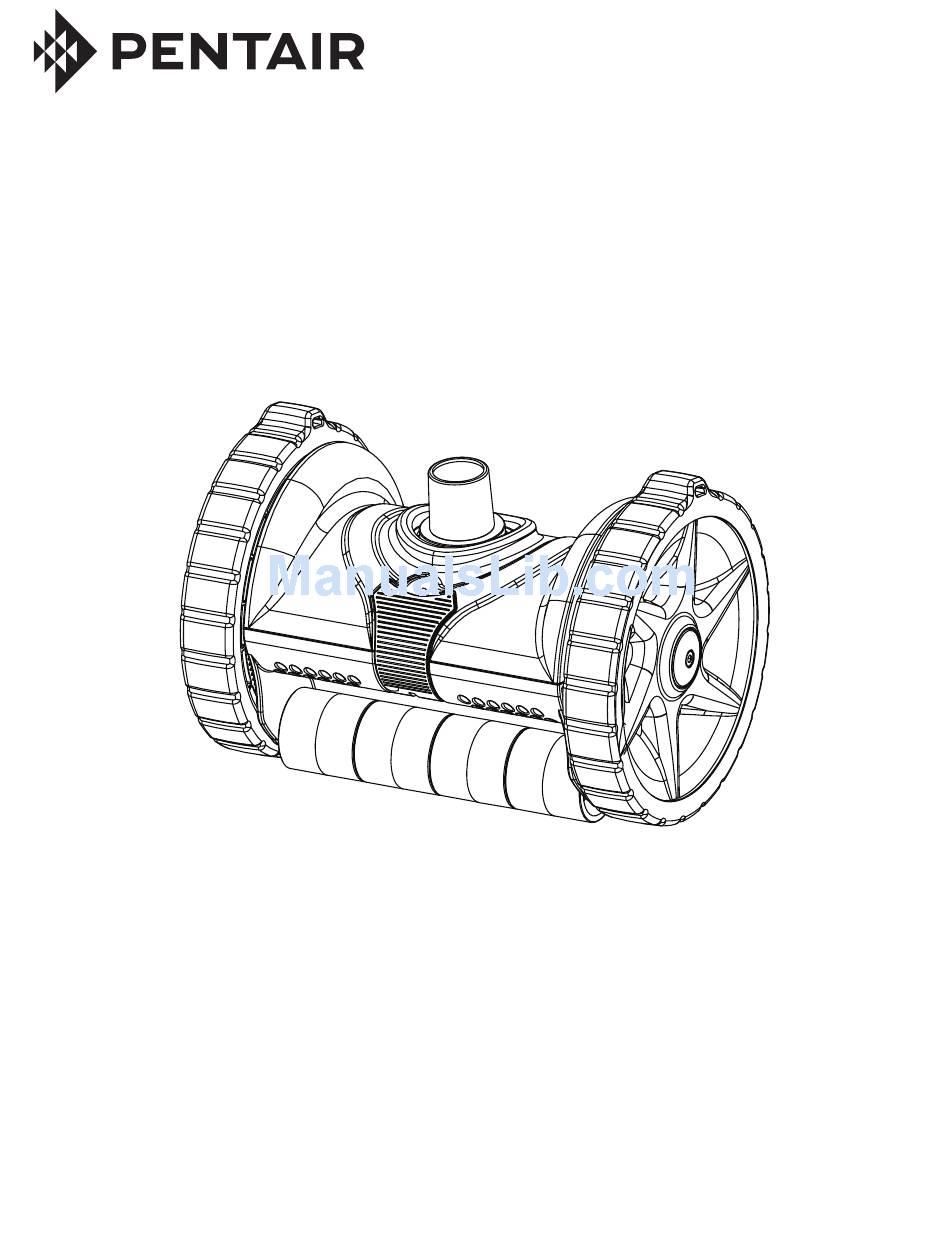

- Page 1 REBEL ™ SUCTION SIDE POOL CLEANER INSTALLATION AND USER’S GUIDE IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS SAVE THESE INSTRUCTIONS REBEL™ Suction Side Pool Cleaner Installation and User’s Guide...
-
Page 2: Table Of Contents
CUSTOMER SERVICE / TECHNICAL SUPPORT If you have questions about ordering Pentair Aquatic Systems replacement parts and pool products, please contact: Customer Service and Technical Support, Australia New Zealand (8 A.M. to 5 P.M. — Eastern Standard Time) (8 A.M. to 5 P.M.) -
Page 3: Important Warning And Safety Instructions
Attention User: This manual contains important information that will help or the vinyl liner, Pentair Water Pool and Spa, Inc. disclaims any liability you in operating and maintaining this pool cleaner. Please retain it for future for repairs or replacement to any of these structures or components of reference. - Page 4 This number is located under the rear handle of your cleaner. You will be asked for this number when you contact our Technical Support Department. SERIAL #__________________________________ SAVE THESE INSTRUCTIONS REBEL™ Suction Side Pool Cleaner Installation and User’s Guide...
-
Page 5: Pool Preparation
POOL PREPARATION Pool Preparation Before installing the Rebel™ Suction Side Pool Cleaner, your pool should be clean and algae-free so as to not inhibit the cleaner’s traction. If necessary, make the following preparations before proceeding: 1. Chemically balance the pool water. -
Page 6: Assembling The Cleaner
ASSEMBLING THE CLEANER The Rebel™ Suction Side Pool Cleaner body is shipped Figure 3 as one piece, making cleaner assembly a simple and quick process. Leader Hose Assembly Hose For best results and to maintain proper operation, use only original Pentair parts and hoses. -
Page 7: Installing The Cleaner
Attach; Skimmer Adaptor Cuff into skimmer plate, then attach Adjustable Regulator Valve & 90 Degree Elbow to skimmer plate. Then connect one end of submerged hose into the 90 Degree Elbow. 90 Degree Elbow Adjustable Regulator Valve Skimmer Adaptor Cuff REBEL™ Suction Side Pool Cleaner Installation and User’s Guide... -
Page 8: Adjusting Flow With The Flow Gauge
Adjusting Flow to the Cleaner With the Flow Gauge 1. Turn the pool pump off. 2. Disconnect the Rebel™ Suction Side Cleaner from the leader hose and connect the flow gauge. Note: Make sure the hose remains submerged to prevent suction of air. -
Page 9: Cleaner Adjustments And Operation
CLEANER ADJUSTMENTS AND OPERATION After installation, turn the pool pump on. The Rebel™ Suction Side Pool Cleaner should be moving about the pool at a rate of 2.5-3.5 metres per minute. Be sure to check each of the following initial adjustments. -
Page 10: Maintenance
MAINTENANCE The Rebel™ Suction Side Pool Cleaner requires almost no Figure 14 maintenance. Visually inspect your cleaner from time to time to Top Cover make sure that: • The turbine is moving freely and is not obstructed by debris. See “Removing Debris from the Turbine” below. -
Page 11: Tire Removal
Tire Replacement After prolonged use it may become necessary to replace the Rebel™ Suction Side Pool Cleaner’s rubber tires. When the tire surface has worn into the tire’s grooves the tire is in need of replacement. See Figure 17. To remove the cleaner tire: 1. -
Page 12: Troubleshooting
TROUBLESHOOTING Because of the individual characteristics of your pool, some additional adjustments may be required to get the best performance from your Rebel™ Suction Side Pool Cleaner. Use the following information to resolve possible issues. PROBLEM CORRECTIVE ACTION Cleaner is not moving or is moving too slowly Check flow with flow gauge included or by calculating the cleaner RPM and adjust the flow... -
Page 13: Replacement Parts
Bottom Cover Kit Elbow K1061 360292 Drive Gear Kit Sectional Hose Not Shown BS59610 360293 Turbine Kit Leader Hose Not Shown GW7911 360294 Cam Kit 360295 Cam Gear Kit 360296 Front Roller Kit REBEL™ Suction Side Pool Cleaner Installation and User’s Guide... - Page 14 NOTES REBEL™ Suction Side Pool Cleaner Installation and User’s Guide...
- Page 15 NOTES REBEL™ Suction Side Pool Cleaner Installation and User’s Guide...
- Page 16 Pentair Water Pool and Spa, Inc. Those names and brands may be the trademarks or registered trademarks of those third parties.
