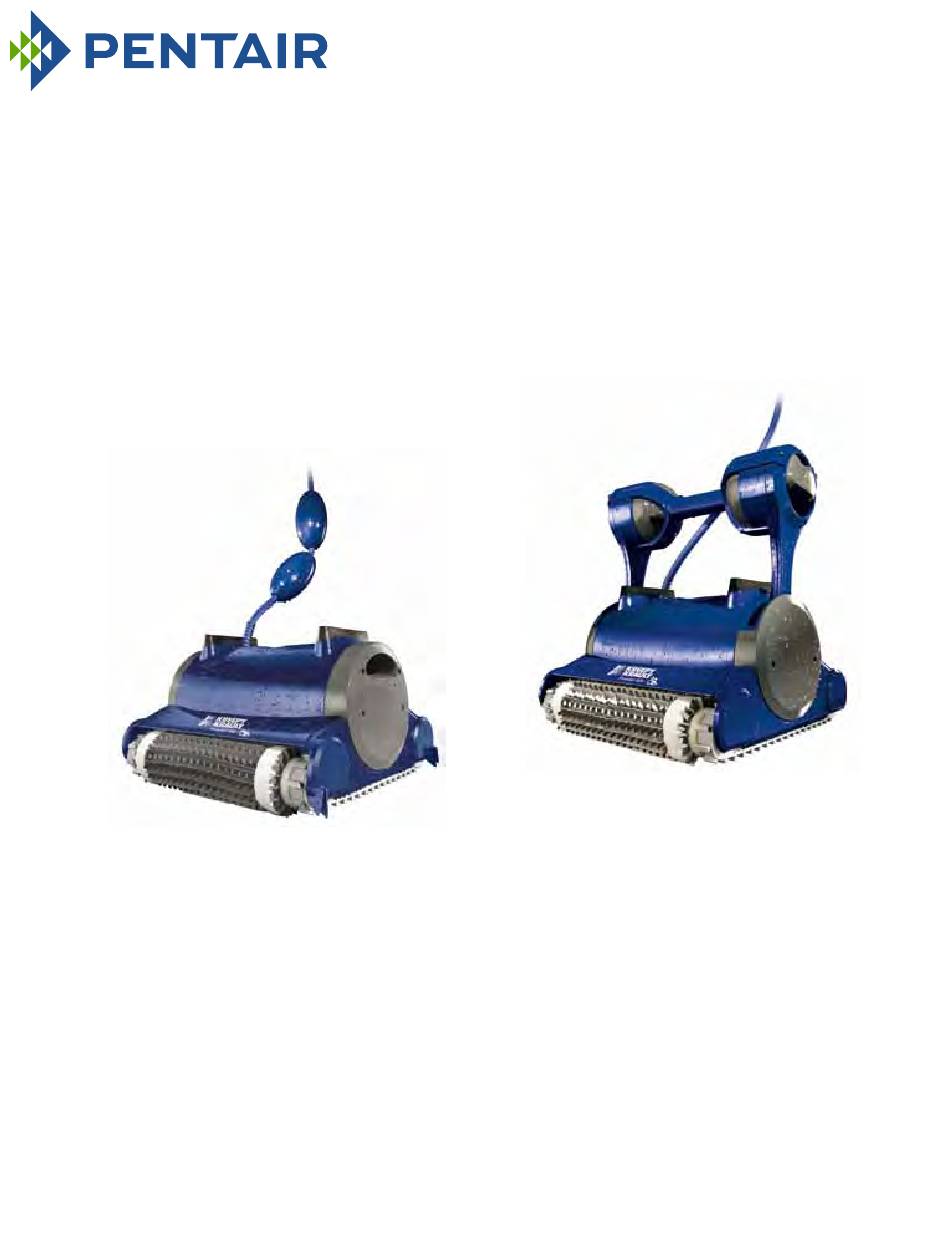

- Page 1 KREEPY KRAULY PROWLER ® ® ROBOTIC INGROUND POOL CLEANERS INSTALLATION AND USER’S GUIDE IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS SAVE THESE INSTRUCTIONS...
-
Page 2: Table Of Contents
Unless expressly noted, names and brands of third parties that may be used in this document are not used to indicate an affiliation or endorsement between the owners of these names and brands and Pentair Water Pool and Spa, Inc. -
Page 3: Important Warning And Safety Instructions
Pentair Aquatic Systems disclaims any liability for receptacle is protected by a GFCI. repairs or replacement to any of these structures or components of the HAZARDOUS SUCTION. -
Page 4: Warranty Information
Pentair Aquatic Systems disclaims any liability for Please be aware that over time, deterioration, discoloration and brittleness... -
Page 5: Assembly And Set Up
ASSEMBLY AND SET UP Overview ® Prowler 820 and 830 Robotic Cleaners are designed to scrub, vacuum, and filter (including the waterline) your inground pool. Before operating this product, be sure to read and follow all warning and safety instructions on pages ii-iii. -
Page 6: Cart Assembly
Caddy Assembly PROWLER 820 and 830 Installation and User’s Guide ®... -
Page 7: Operation
OPERATION Operating the Cleaner Do not switch the pool cleaner to “ON” if it is not fully immersed in water . Operating the cleaner out of water will immediately cause severe damage and will result in loss of warranty. Do not leave the cleaner in the pool all the time. Always remember to turn the power supply “OFF”... -
Page 8: Turning The Cleaner On
Digital Switch Mode Power Supply Weekly Timer and Full Filter Bag Indicator The power supply has a timer control that allows you to set an automatic cleaning schedule each week. Be sure the cleaner is fully immersed in water before turning on the power. Turning the Cleaner ON 1. -
Page 9: Full Bag Indicator
Digital Switch Mode Power Supply Weekly Timer and Full Filter Bag Indicator Full Filter Bag Indicator (820 and 830 Models) The power supply is equipped with a filter bag status indicator. The red LED indicates 2 filter conditions: LED Blinking - The filter is partially blocked. LED Lit - The filter is blocked and must be emptied and cleaned. -
Page 10: Control Panel Of Remote Control (830 Only)
Control Panel of the Remote Control Manually controlling the direction of the Pool Cleaner 1. Press the ON/OFF button once - The remote control unit will start up in Manual direction control mode. ON/OFF button 2. To manualy control the direction of the pool cleaner, use the Direction control arrows (see right). -
Page 11: Removing The Cleaner From The Pool
Removing the Cleaner The cleaner will shut off automatically at the end of a cleaning cycle. Follow the steps below to remove the cleaner from the pool. • Slowly and gently pull on the cord, up to about 4 in. (10 cm) from the cord base, in order to get the cleaner close to you. -
Page 12: Maintenance
MAINTENANCE Cleaning the Cartridge Remove all debris. • It is recommended to wash the cartridge after every cycle. • Too much debris in the filter can restrict the suction power of the cleaner. PROWLER 820 and 830 Installation and User’s Guide ®... -
Page 13: Cleaning The Cartridge
Cleaning the Cartridge Dual-level filtration syste • “Ultra-fine” filters for day-to-day use. Factory default. • Spring “net” filters for dirty pools with large debris such as leaves etc., useful for beginning of season, are included. • It is recommended to wash the cartridge after every cycle. PROWLER 820 and 830 Installation and User’s Guide ®... -
Page 14: Cleaning The Fan
Cleaning the Fan Always disconnect power to the cleaner before servicing, disassembly , or reassembly. Failure to do so could result in death or serious injury to servicemen, pool users or others due to electrical shock. Read all servicing instructions before servicing the cleaner. No. -
Page 15: Storing The Cleaner
Storing the Cleaner Be sure to disconnect the power supply after use. Use the caddy to store the power supply, cable, and cleaner. Check the cable periodically for external damage. • Do not leave cleaner power supply plugged in while not in use. •... -
Page 16: Troubleshooting
TROUBLESHOOTING Problem Possible Cause Corrective Action Cable twisting or cable Obstruction in pool Remove obstruction in pool. coils up. Pool shape Contact your dealer; install cable with swivel. Gets stuck on main drain cover Turn off filter and install main drain cover ring Straighten cable and lay in sun periodically. -
Page 17: Replacement Parts
REPLACEMENT PARTS Prowler 820 Illustrated Parts List ® ITEM DESCRIPTION ITEM DESCRIPTION 360132 Prowler 820 motor 360139 Prowler Impeller Cover 360131 Prowler Impeller 360125 Prowler 820 Power Supply 360133 Prowler Timing Track 360140 Cartridge Assembly 360134 Prowler Side Wheel 360141 Caddy 360135 Prowler Wheel Tube... -
Page 18: Prowler 830 Replacement Parts
Prowler 830 Illustrated Parts List ® ITEM DESCRIPTION ITEM DESCRIPTION 360147 Prowler 830 Motor 360123 Spring Filter 360131 Prowler Impeller 360142 Climbing Ring 360133 Prowler Timing Track 360143 Small Screw 360135 Prowler Wheel Tube 360144 Large Screw 360136 Prowler Brush 360126 Prowler 830 Power Supply 360145... - Page 19 1620 HAWKINS AVE., SANFORD, NC 27330 • (919) 566-8000 10951 WEST LOS ANGELES AVE., MOORPARK, CA 93021 • (805) 553-5000 WWW.PENTAIRPOOL.COM © 2012 Pentair Aquatic Systems. All rights reserved. This document is subject to change without notice. P/N 370443 REV. C 12/7/12...
