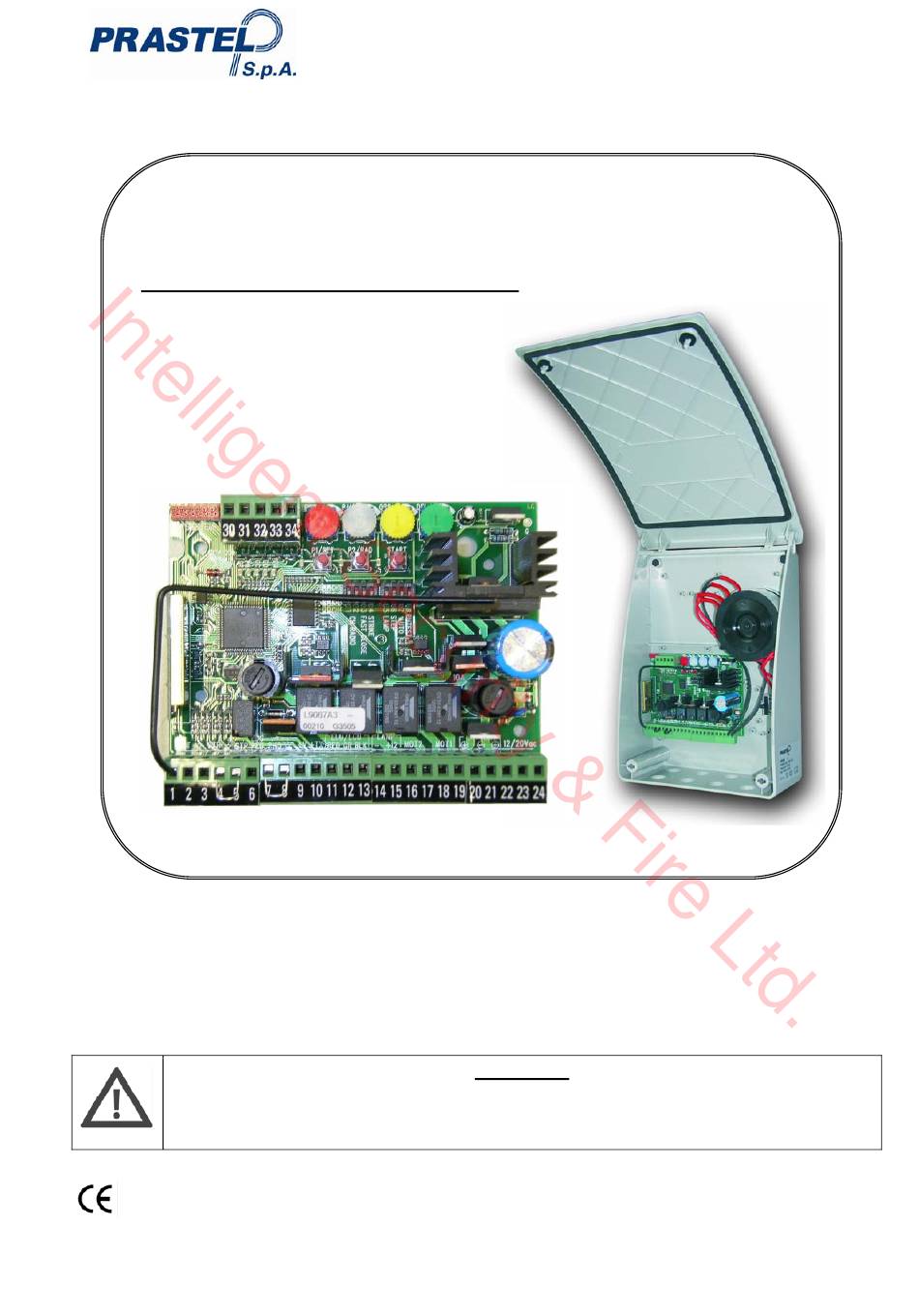

ELECTRONIC CONTROL UNIT FOR
TWO 12VDC MOTOR
UNIK2E
(COMPLETE)
UNIK2ESK
(
W I T H O U T B O X AN D T R AN S F O R M E R )
TECHNICAL INSTALLATION MANUAL
FOR AUTOMATIC GATES
Before installing, thoroughly read this manual that is an integral part of this
Kit. Prastel S.p.A. declines any responsibility in the event current standards
in the country of installation are not complied with
The symbol CE conforms with European Directive R&TTE 99/05/CE
_ V2
_ V2
WARNING!
ISUNIK2Ev2_GB_02_09.doc

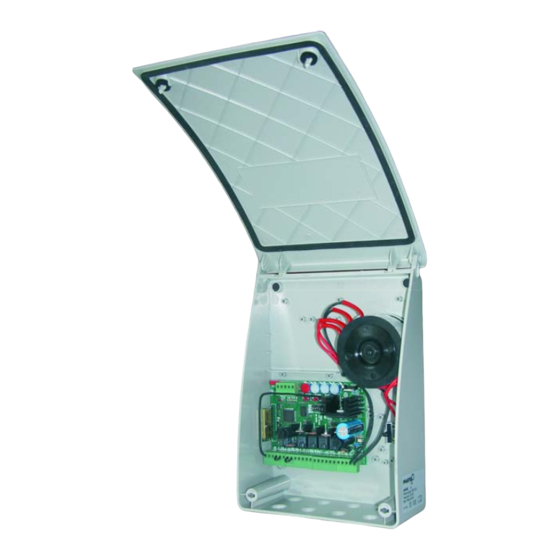

BOX IP 54
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PRASTEL UNIK2E-V2
Summary of Contents for PRASTEL UNIK2E-V2
- Page 1 WARNING! Before installing, thoroughly read this manual that is an integral part of this Kit. Prastel S.p.A. declines any responsibility in the event current standards in the country of installation are not complied with The symbol CE conforms with European Directive R&TTE 99/05/CE...
-
Page 2: Table Of Contents
ISUNIK2Ev2_GB_02_09.doc ENGLISH UNIK2E 1. INTRODUCTION ................... 3 2. MAIN FEATURES ..................3 3. TECHNICAL SPECIFICATIONS ..............3 4. CONNECTION AND SET UP OF THE CONTROL UNIT......4 GENERAL DIAGRAM OF SETTINGS AND CONNECTIONS ........5 SIMPLIFIED LEARNING PROCEDURE (also see pages 8-10) ......6 PROFESSIONAL LEARNING PROCEDURE (see also pages 8-10)...... -
Page 3: Introduction
Built to European reference Directive Standards (R&TTE 99/05/CE) DECLARATION OF CONFORMITY Prastel S.p.A. declares that UNIK2E IS IN ACCORDANCE with the 99/05/EC (R&TTE) direcitve The complete declaration of conformity is available in Prastel or to the internet address www.prastel.it 3. TECHNICAL SPECIFICATIONS... -
Page 4: Connection And Set Up Of The Control Unit
ISUNIK2Ev2_GB_02_09.doc ENGLISH UNIK2E 4. CONNECTION AND SET UP OF THE CONTROL UNIT Before installing the UNIK2E control unit, read the “General safety warnings and notes” (page 13). Fix the box using the special fixing holes. Mount a differential thermo-magnetic circuit breaker 6A (IC=30mA) on the mains supply as specified in the current reference standards (IC = differential current). -
Page 5: General Diagram Of Settings And Connections
ISUNIK2Ev2_GB_02_09.doc ENGLISH UNIK2E GENERAL DIAGRAM OF SETTINGS AND CONNECTIONS... -
Page 6: Simplified Learning Procedure (Also See Pages 8-10)
ISUNIK2Ev2_GB_02_09.doc ENGLISH UNIK2E SIMPLIFIED LEARNING PROCEDURE (also see pages 8-10) 1. Verify the initial settings. 2. Program the remote controls (if needed) with the gate stopped (green LED GC turned on) according to the following: a) Press the program button P2/RAD for two seconds: the red LED “RAD” lights up. b) Press the desired button on each transmitter. -
Page 7: Professional Learning Procedure (See Also Pages 8-10)
ISUNIK2Ev2_GB_02_09.doc ENGLISH UNIK2E PROFESSIONAL LEARNING PROCEDURE (see also pages 8-10) Using the professional learning procedure the installer can determine: a) the instant in which the opening and closing slow-down starts b) the pedestrian function c) the safety device trigger mode. When the motor and the safety devices are connected, programme the remote controls to be used (see page 8) with the gate stopped (green LED GC turned on). -
Page 8: Control Unit Operating Logic (Analytic Exam)
ENGLISH UNIK2E 5. CONTROL UNIT OPERATING LOGIC (ANALYTIC EXAM) PROGRAMMING AND CANCELLATION OF THE REMOTE CONTROLS With the receiver built into the control box, Prastel dip-switch, fixed code and rolling code remote controls can be indifferently learned. 5.1.1 Programming Power the control panel and with the automation stopped (green LED GC turned on): •... -
Page 9: Motor Speed - Trimmer "For
ISUNIK2Ev2_GB_02_09.doc ENGLISH UNIK2E - when the gate is open the closing commands are inhibited, Using the professional learning, the EDG/PED input can be set as internal photocell: - in closing phase it provokes an inversion of direction when cleared, - in opening phase it provokes a STOP and opening continues when cleared, - when the gate is closed it delays opening until it is cleared, - when the access is open it inhibits the closing commands. - Page 10 ISUNIK2Ev2_GB_02_09.doc ENGLISH UNIK2E - opening stops when the limit switches or the obstacle detection system intervenes or when the manoeuvre time has elapsed. If other commands are given during opening they will have no effect. - with the automation stopped and in automatic pause each time the timer re-starts from zero. Once the pause time has elapsed, the closing manoeuvre takes place and the control unit: - carries out a 1 second fixed pre-flash - drives the two motors with a 2...
-
Page 11: Pedestrian Opening" Function
ISUNIK2Ev2_GB_02_09.doc ENGLISH UNIK2E drives the motors for one second at reduced speed (softstart) and then at the speed set on the FOR trimmer. - if a command is given during closing the control unit commands the complete re-opening - closing stops when the limit switch or the obstacle detection system intervenes or when the manoeuvre time has elapsed. “PEDESTRIAN OPENING”... -
Page 12: Courtesy Light
ISUNIK2Ev2_GB_02_09.doc ENGLISH UNIK2E transformer. The command is given before every opening manoeuvre for 2 seconds, and before every re- opening caused by the triggering of a photocell or safety device. Using dip-switch 4 on the card, the kick-back and the final stroke at the end of the closing manoeuvre can be enabled or not. -
Page 13: Programming Through Gtsystem
- is switched off when the OPEN/STEP/STEP (STR) input is open. 7. PROGRAMMING THROUGH GTSYSTEM The GTSYSTEM is an autonomous multi-functional terminal that can be used on various Prastel products both for testing and function modification. In the case of UNIK2E control unit, it allows: •... -
Page 14: Troubleshooting
9. TROUBLESHOOTING PROBLEM PROBABLE CAUSE REMEDY 230 volt mains voltage absent Check master switch Check for any STOP commands Emergency STOP present connected to the STP input. On giving a command with the There is no jumper between the STP If not used, check if there is a remote control or with the key- input and the common. -
Page 15: Safety Warnings For Installation And Use
Nor does the warranty cover parts subject to wear (batteries, oil etc.). Products returned to PRASTEL S.p.A. for repair shall only be accepted carriage paid. Prastel S.p.A. shall return the repaired product to the sender carriage forward. Otherwise the goods will be refused on receipt. The purchase of the product implies the full acceptance of all the general terms of sale.
