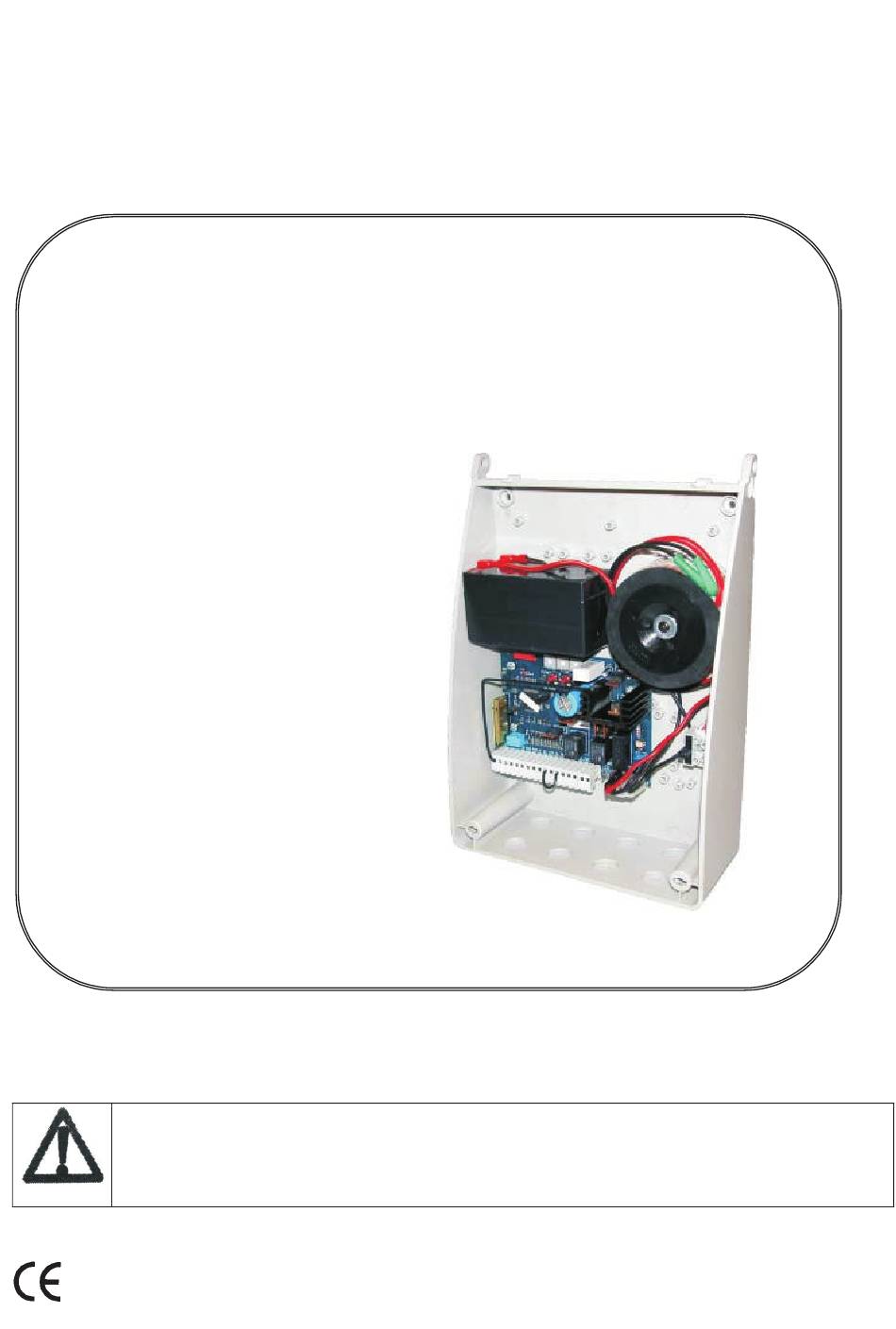

Technical Manual for the Installer

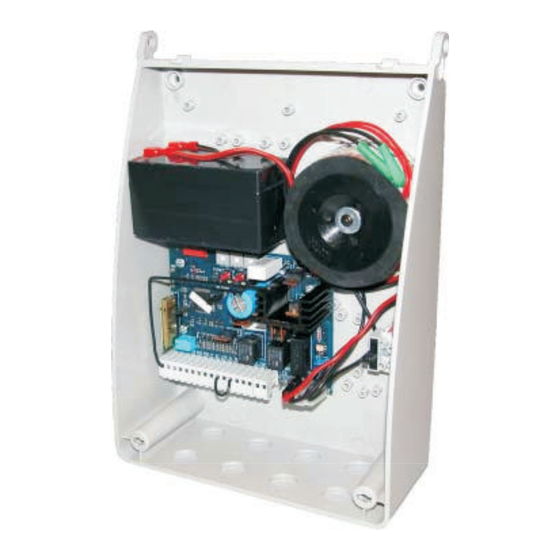

CONTROL UNIT FOR ONE MOTOR
12VDC
UNIK1E
Attention!! Before installing, carefully read this manual
.
N.B.
- Stateurop declines every responsib ility in case of not observance of the normative in force in
the Country where the installation is made
The CE mark conforms to the European directive R&TTE 99/05CE
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PRASTEL UNIK1E
Summary of Contents for PRASTEL UNIK1E
- Page 1 Technical Manual for the Installer CONTROL UNIT FOR ONE MOTOR 12VDC UNIK1E Attention!! Before installing, carefully read this manual N.B. - Stateurop declines every responsib ility in case of not observance of the normative in force in the Country where the installation is made...
-
Page 2: Table Of Contents
ENGLISH SUMMARY Title Description Page • INTRODUCTION • MAIN FEATURES • TECHNICAL SPECIFICATIONS • CONNECTING AND TURNING ON THE CONTROL UNIT • EASY LEARNING PROCEDURE • PROFESSIONAL LEARNING ROUTINE • RADIOTRANSMITTERS PROGRAMMING AND ERASING • SAFETIES AND OPERATING LOGIC • CONTROL UNIT OPERATION •... -
Page 3: Introduction
ENGLISH 1. INTRODUCTION UNIK1E is a universal self-learning control unit especially designed for the automatic control of 12VDC, 1 motor driven accesses. Its innovative self-learning procedure makes for quick and easy installation and its three trimmers permit fine adjustment of all main parameters, namely force, pause time and obstacle detection sensitivity. -
Page 4: Connecting And Turning On The Control Unit
ENGLISH 4. CONNECTING AND TURNING ON THE CONTROL UNIT • Before installing the UNIK1E control unit carefully read “General Safety Precautions”. • Secure the box in place through the appropriate mounting holes. • Make sure the power line is fitted with an appropriate disconnector / isolating switch as required by prevailing reference Provisions and Standards. -
Page 5: Easy Learning Procedure
Depending on the voltage with which it is powered (12 or 24VAC), the control unit sets up to operate with 12 or 24 VDC motor. The UNIK1E control unit is supplied with a toroidal transformer with 12VAC secondary. The toroidal transformer with 24VAC secondary is available on request (Prastel code TRT12-24V100VA). - Page 6 ENGLISH OPERATION WITH QUICK PROGRAMMING Once connected motors and the desired safeties place wings halfway. To upload transmitters press P2/RADIO for 2 seconds, till the red led comes on, make a transmission and then press P2/RADIO again. • Slow down triggering at 90% of closing or opening run. •...
-
Page 7: Professional Learning Routine
ENGLISH 6. PROFESSIONAL LEARNING ROUTINE Once the control unit has been set up as described above, turn it off and then back on again or press the P1/SET key on the card. Within five seconds, while the yellow SET LED flashes, keep the P2/ RADIO key pressed for one second to access “PROFESSIONAL LEARNING”. -
Page 8: Radiotransmitters Programming And Erasing
ENGLISH 7. RADIOTRANSMITTERS PROGRAMMING AND ERASING By means of the radio receiver module integrated in the control unit you are allowed to store Stateurop radio transmitters with dip-switches, with fixed and rolling codes. ENTRY • Power the unit. • Press the “P2/RADIO” key: the red LED comes on indicating programming in progress. •... -
Page 9: Safeties And Operating Logic
ENGLISH 8. SAFETIES OPERATING LOGIC • Photocell (PHO input) When triggered photocell causes: - movement reversal when closing, either immediately or upon release as programmed; - no effect when opening; - no effect when opening a closed gate if set for immediate reversal, otherwise a delay until it is reset; - closing inhibition in case of open gate. -
Page 10: Obstacle Detection
(230VAC) failure. 10. PROGRAMMING BY GTSYSTEM The GTSYSTEM is a stand-alone multifunction terminal used for several Stateurop products for test or function setting. In the case of UNIK1E the GTSYSTEM allows: • display and modification of functioning parameters •... -
Page 11: Troubleshooting
ENGLISH 11. TROUBLESHOOTING FAILURE PROBABLE REASON POSSIBLE SOLUTION 230VAC power supply not present Check the main switch Check possible switches or commands on the STP input. After a command with the remote Emergency STOP activated control or the key switch, the gate If STP input is not used, verify the doesn’t open bridge on input STP. -
Page 12: Safety Warnings
SAFETY WARNINGS These warnings are an integral and essential part of the product, and must be delivered to the user. Read them carefully: they provide important installation, operating, and maintenance instructions. Keep this form and give it to any persons who may use the system in the future. Incorrect installation or improper use of the product may cause serious danger.
