PRASTEL GT+ Manual

GT+
1. INTRODUCTION
The GT+ is the MM, LOGIC, MR (Rolling Code) and MRxP memory management tool for receivers and
transmitters in the XP range. This portable device allows the installation and assistance staff to check the
programming of data stored in the memory, edit this data and possibly create a backup copy in the GT+ internal
memory.
This tool may be used with Prastel receivers that have either a fixed, integrated memory or removable memory. For
receivers with fixed memory, the GT+ is self-powered by the receiver via the GT+ – Receiver connecting cable. An
external power supply is required if receivers with external memory are going to be used. This power supply is
provided via the micro-USB port.
It also has a USB port enabling it to be connected to a PC that has the WINGTPROG program installed on it.

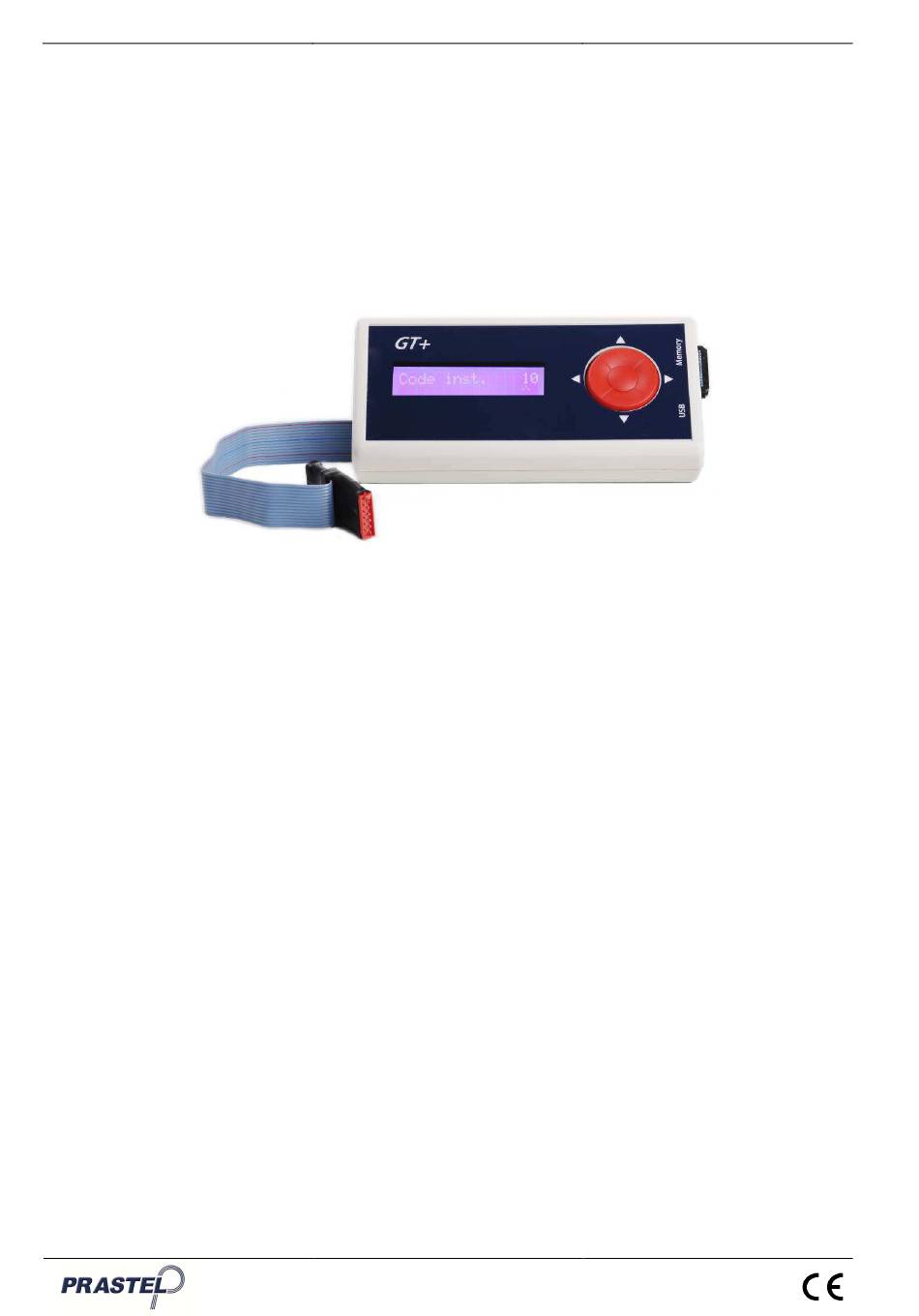

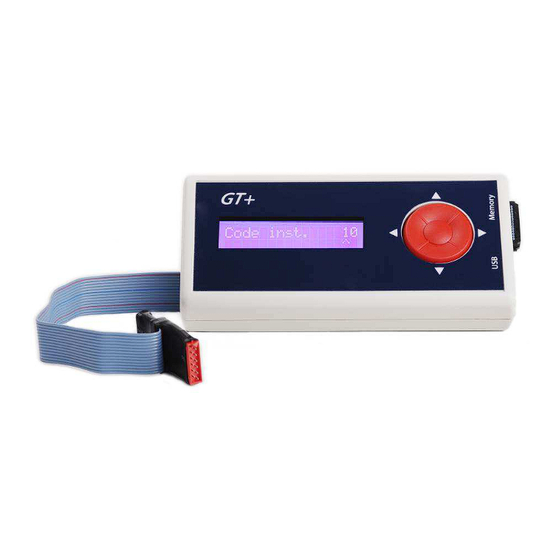

Figure 1.
2. FEATURES DESCRIPTION
Using the GT+ terminal allows the following operations to be carried out:
On a radio receiver:
•
Management of the numbers of transmitters stored in the receiver internal or external memory (display,
creation, deletion and space used, etc.).
•
Management of the type and time-out for relay commands.
•
Management of group codes and receiver passwords.
•
Possible backing up or restoring the receiver memory or the memory modules in the GT+. The data shall
be archived in the GT+ memory.
On a radio transmitter:
•
Reading the transmitter radio codes, group codes and copy codes.
•
Management of contactless programming of the transmitter numbers, group codes and copy codes (XP
function).
On a UNIK control panel:
•
Management of the numbers of transmitters stored in the Unik card internal memory (display, creation,
deletion and space used, etc.).
•
Unik card password management.
•
Management of parameters, operation counter and Unik card status (display and edit)
•
Possible backing up or restoring of the Unik card's radio memory or parameters in the GT+. The data shall
be archived in the GT+ memory.
On an M1000 or M2000 standalone access control unit:
•
Possible backing up or restoring of an M1000 or M2000 memory in the GT+. The data shall be archived in
the GT+ memory.
Other features
•
Possible storage of up to 1000 receiver, Unik or M1000/2000 memories in the GT+ internal memory.
