PRASTEL DOM1-L1SIM Manual

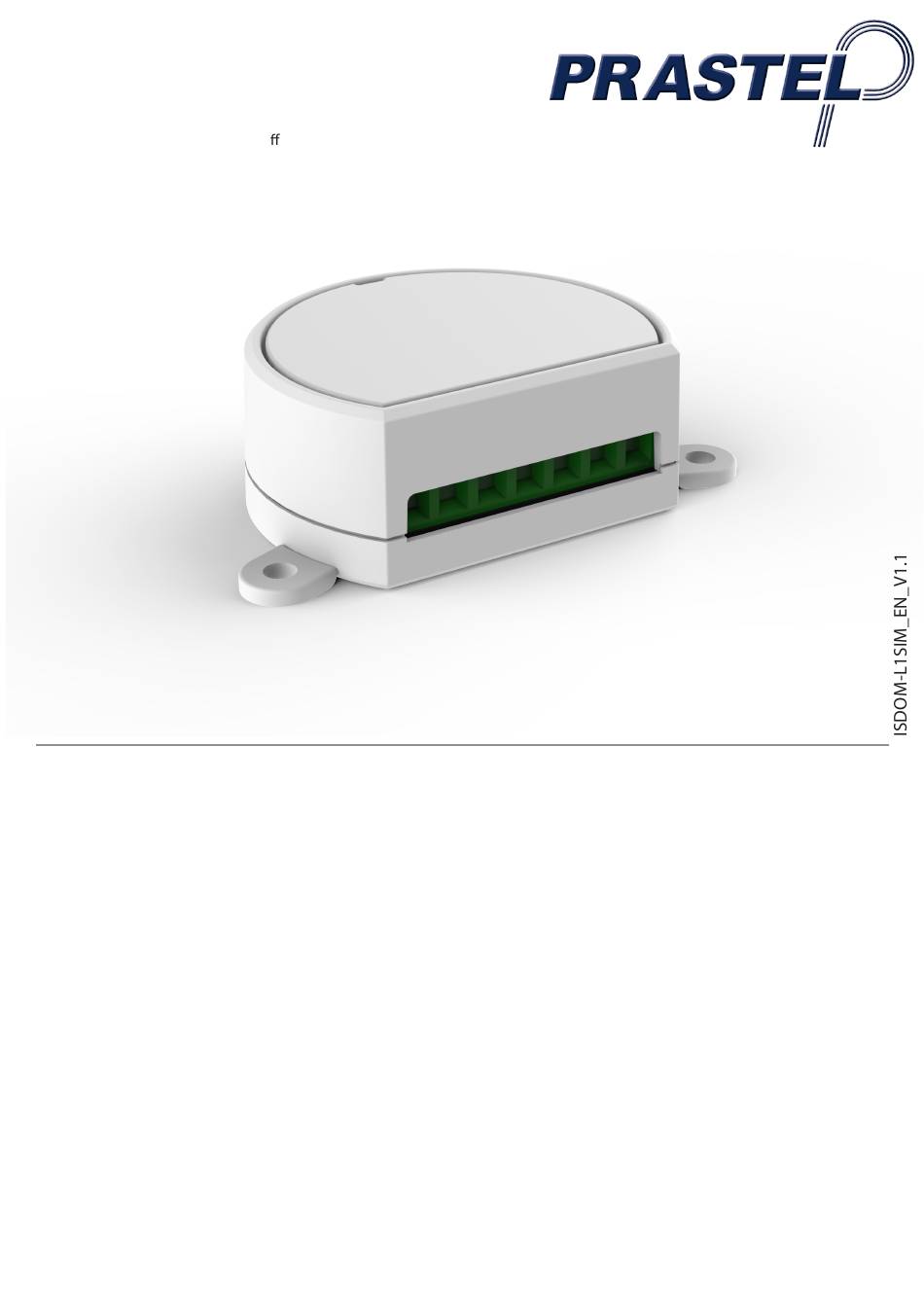

For 1 device with max power 1000w. 110/240 vac power supply, integrated rx 433.92 mhz ism, wired input settable with button or switch. presence simulation function, on/off, timer on.
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DOM1-L1SIM
Control unit for 1 device with max power 1000W.
110/240 VAC power supply, integrated RX 433.92 MHZ ISM,
wired input settable with button or switch.
Presence simulation function, On/O , timer ON.
INDEX
1 - PRODUCT FEATURES
1.1 - TECHNICAL DATA
1.2 - DESCRIPTION
2 - ELECTRICAL CONNECTIONS
2.1 - CONNECTIONS FOR LOADS POWERED BY THE GRID
2.2 - CONNECTION BETWEEN TWO CLEAN OUTPUT CONTACTS
3 - USE OF THE CONTROL UNIT
3.1 - USE VIA RADIO
3.2 - USE VIA WIRE
4 - CONTROL UNIT SETTINGS
4.1 - SETTING "OUT1" OUTPUT
4.2 - SETTING "OUT1" TIMING
4.3 - SETTING TYPE OF INPUTS VIA WIRE "P1"
5 - RADIO PROGRAMMING
5.1 - RADIO PROGRAMMING MULTIFUNCTIONAL TRANSMITTERS
5.2 - RADIO PROGRAMMING OF GENERIC TRANSMITTERS
5.3 - DELETION OF TRANSMITTERS
6 - PRESENCE SIMULATOR
6.1 - USE OF PRESENCE SIMULATOR
6.2 - SETTING RANDOM SWITCH-ONS
6.3 - SETTING THE DURATION OF THE PRESENCE SIMULATOR
6.4 - RADIO PROGRAMMING OF TRANSMITTERS MATCHED TO THE ACTIVATION
OF THE PRESENCE SIMULATOR CYCLE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DOM1-L1SIM and is the answer not in the manual?

Questions and answers

Related Manuals for PRASTEL DOM1-L1SIM

Summary of Contents for PRASTEL DOM1-L1SIM

  • Page 1 DOM1-L1SIM Control unit for 1 device with max power 1000W. 110/240 VAC power supply, integrated RX 433.92 MHZ ISM, wired input settable with button or switch. Presence simulation function, On/O , timer ON. INDEX 1 - PRODUCT FEATURES 1.1 - TECHNICAL DATA 1.2 - DESCRIPTION...

  • Page 2: Product Features

    WARNINGS - Installation must be carried out only by quali ed technicians in compliance with the electrical and safety standards in force. - All connections must be made with the power turned o . - Use suitable cables (0,75 m² recommanded). - Do not cut through the aerial (see gure 1.1b) - A suitably sized disconnection device must be set up on the electric power line that supplies the product.

  • Page 3: Description

    DESCRIPTION DOM-L1SIM is a miniaturised electronic control unit for managing a device via radio and wire, with a push-button or switch. Flexible applications thanks to the fact that the load can be controlled in monostable, bistable or timer (from 1 second to 60 hours) mode.

  • Page 4: Electrical Connections

    2 ELECTRICAL CONNECTIONS This control unit comes set up for di erent types of connection that allow greater exibility regarding the behaviour of the outputs and the types of inputs to adapt to various system con gurations. BEHAVIOUR OF OUTPUTS Depending on the type of load that you want to control, connections can be made that let you - control a load powered by grid voltage (230 V max 1000 W, 110 V max 500 W), paragraph 2.1.

  • Page 5: Connection Between Two Clean Output Contacts

    CONNECTION BETWEEN TWO CLEAN OUTPUT CONTACTS The following connection lets you control a NO contact via radio and/or wire. Fig.2.2 P1: Command of load OUT1 P2: Presence simulator activation WARNING: Multiple buttons can be connected to the same input by using parallel cabling.

  • Page 6: Use Of The Control Unit

    3 USE OF THE CONTROL UNIT USE VIA RADIO To control the loads via radio you must have compatible transmitters and therefore must carry out the association procedure, see paragraph 5. The transmitter's command modes depend on the output setting (see paragraph 4.1) and the model of transmitter used. If the transmitter is of a generic type, its operation depends on the way it is programmed (see paragraph 5, table 5.2b).

  • Page 7: Control Unit Settings

    4 CONTROL UNIT SETTINGS SETTING "OUT1" OUTPUT This process is used to con gure the behaviour of the OUT1 output contact (table 4.1a). Tab. 4.1a SETTING "OUT1" OUTPUT DIP 1 - 2 MODE Monostable ON - ON (pulse) 1 2 3 4 Bistable ON - OFF (On/O )
  • Page 8 SETTING TYPE OF INPUTS VIA WIRE "P1" Default: Push-button This procedure lets you choose the type of wired devices to command load 1 (connected on terminal 3, input P1). The devices can be set as push-buttons or switches. 1 2 3 4 PROCEDURE 1- Position DIPs 1, 2, 3 and 4 to OFF-OFF-ON-ON.

  • Page 9: Radio Programming

    5 - RADIO PROGRAMMING RADIO PROGRAMMING MULTIFUNCTIONAL TRANSMITTERS This procedure can be used only to programme compatible multifunctional transmitters; see table 5.1. The transmitter's command modes depend on the model used and the setting of the outputs (see paragraph 4.1). Refer to the transmitter manual, to the paragraph entitled "commands sent by the transmitter", bearing in mind that: Output set as monostable = monostable device.

  • Page 10: Radio Programming Of Generic Transmitters

    RADIO PROGRAMMING OF GENERIC TRANSMITTERS This procedure lets you programme only compatible generic transmitters; see table 5.2a. The transmitter control modes depend on the function associated with the key (see table 5.2b) and the output setting (see paragraph 4.1 and table 5.2c). Tab.

  • Page 11: Presence Simulator

    6 PRESENCE SIMULATOR This function makes it possible to activate the load (usually a light) in order to simulate the presence of people in the house.The number of switch-ons and how long they last in the hour can be set following the procedure in paragraph 6.2. The number and duration of the presence simulator cycle can be set following the procedure in paragraph 6.3.

  • Page 12: Setting The Duration Of The Presence Simulator

    (see paragraph 4.1) If the transmitter is a multifunctional one, the key dedicated to activation will be the "square" one. To delete programmed transmitters from the memory, see paragraph 5.4. PRASTEL France ZI Athelia II 225 impasse du Serpolet 13600 La Ciotat Tél : 04 42 98 06 06...
