How to Hang Your Ceiling Fan (continued)

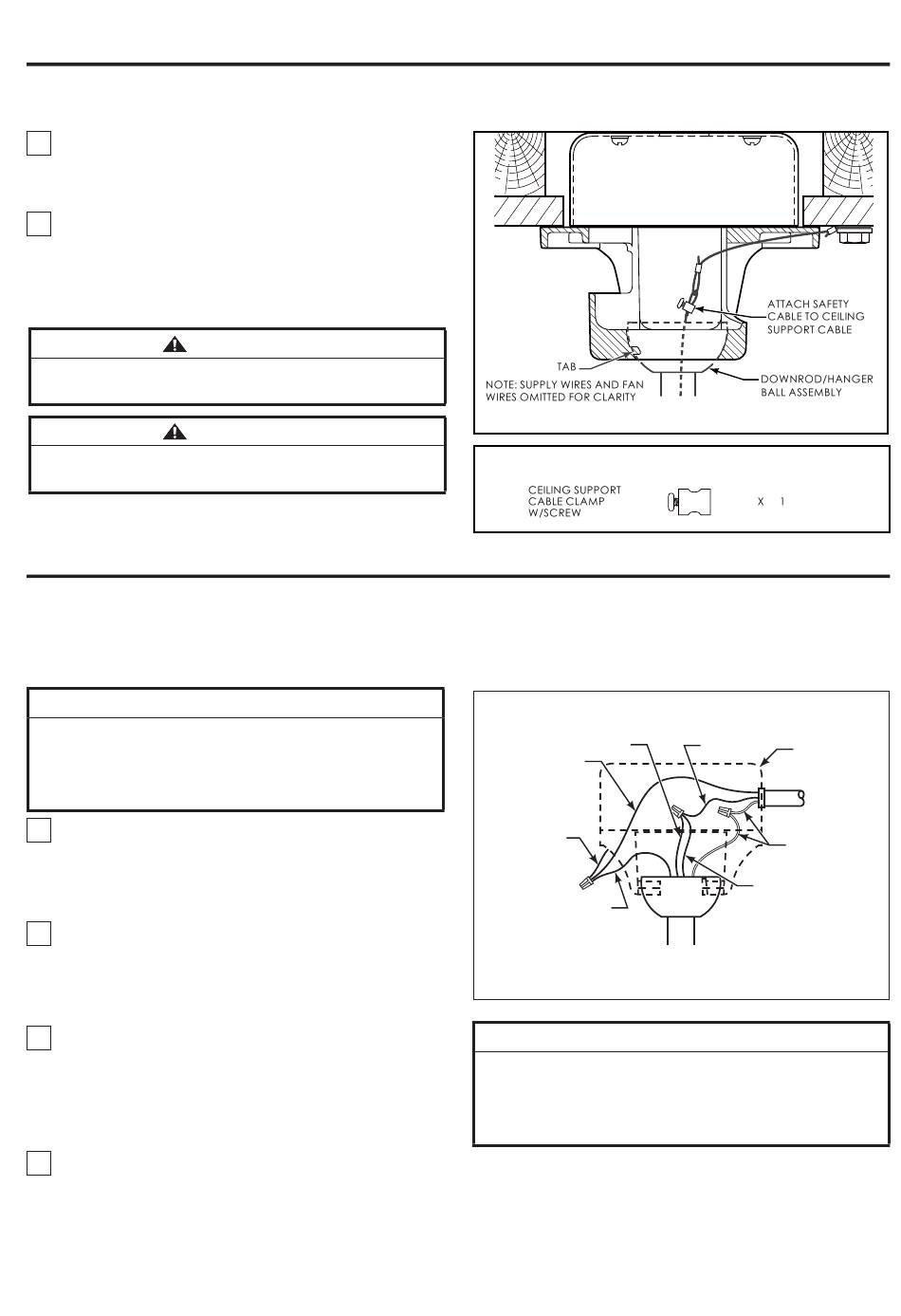

4. Carefully lift the fan and seat the downrod/hanger ball
assembly on the hanger bracket that was just attached to
the ceiling joist. Be sure the groove in the ball is lined up
with tab on the hanger bracket. (Figure 4)
5. Attach the safety cable to ceiling support cable. Slide
cable clamp onto safety cable (from fan). Place the end
of cable through the loop of ceiling support cable. Pull as
much cable through loop as possible. Feed end of cable
into clamp hole and firmly tighten screw (Figure 4). Cut
off excess safety cable. of
WARNING
Failure to seat tab in groove could cause damage to
electrical wires and possible shock or fire hazard.
WARNING
To avoid possible shock, do not pinch wires between the
downrod/hanger ball assembly and the hanger bracket.
If you feel that you do not have enough electrical wiring knowledge or experience, have your fan installed by a
licensed electrician.
▲WARNING
To avoid possible electrical shock, be sure electricity is
turned off at the main fuse box before wiring.
NOTE: If you are not sure if the outlet box is grounded,
contact a licensed electrician for advice, as it must be
grounded for safe operation.
1. Connect the green grounding lead from the hanger
ball and the green grounding lead from the hanger
bracket to the supply grounding conductor (this may
be a bare wire or wire with green colored insulation).
Securely connect wires with wire connectors supplied.
2. Securely connect the white fan motor wire to the
white supply (neutral) wire using wire connector
supplied. Securely connect the black fan motor wire
and blue wire to the black supply wire using wire
connector supplied. (Figure 1)
3. After splicing and making the wire connections, the
wires should be spread apart and turned upward with
the grounded conductor and the equipment-grounding
conductor on one side of the outlet box and the
ungrounded conductor on the other side of the outlet
box.
4. Secure the ceiling canopy to the hanger bracket
with threaded rods, external lockwashers, and knurled
knobs provided (see below).

How to Wire Your Ceiling Fan

HARDWARE USED:
Black
Fan Wire
Green Wire
(Ground)
Green Wire
(Ground) from
Hanger Bracket
Green Wire
(Ground) from
Hanger Bowl
▲WARNING
Check to see that all connections are tight, including
ground, and that no bare wire is visible at the wire
connectors, except for the ground wire. Do not operate
fan until the blades are in place. Noise and fan damage
could result.
8
Figure 4
Listed
Black
Outlet Box
Household
Supply
White
Blue
Figure 1
