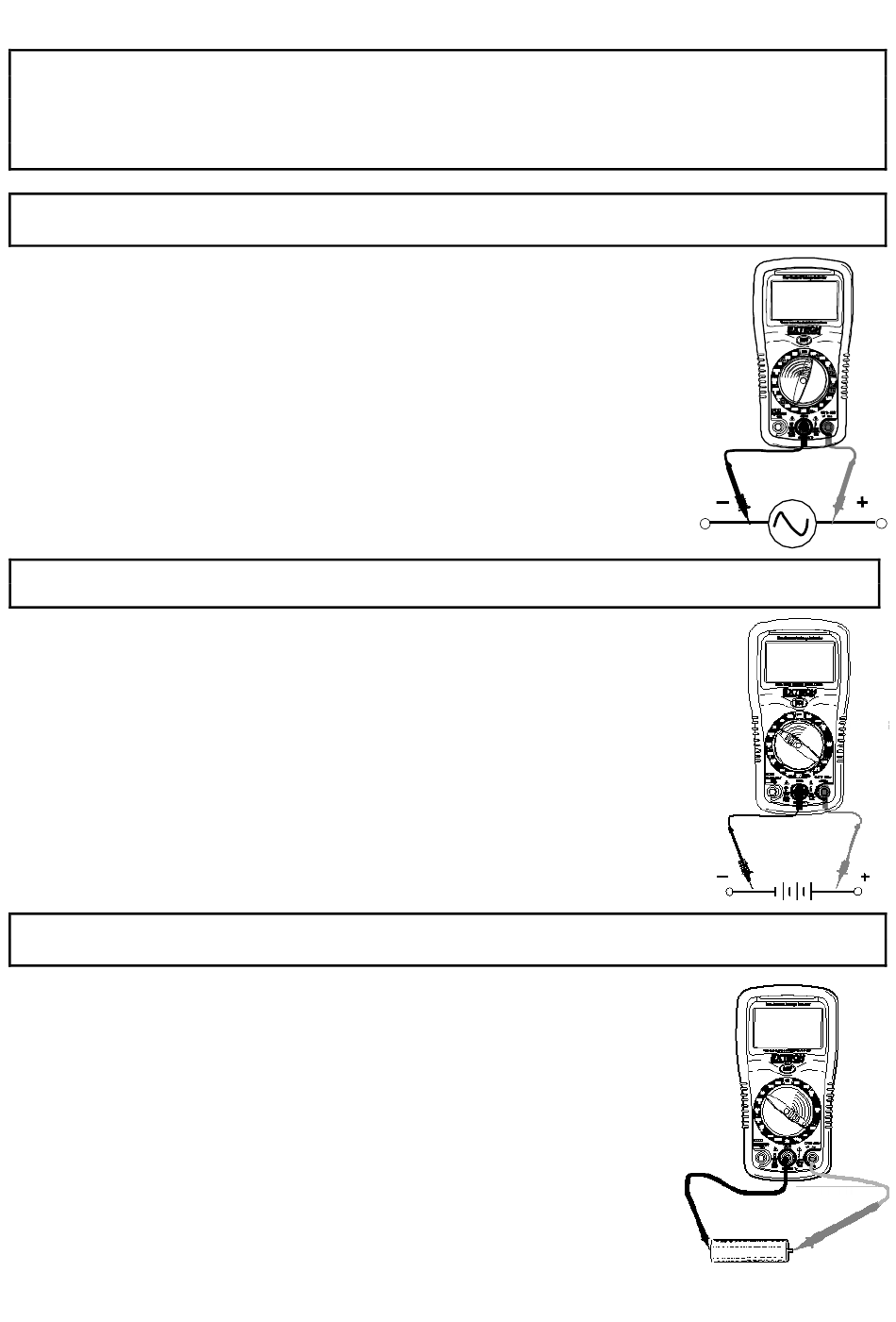

AC VOLTAGE MEASUREMENTS

WARNING: Risk of Electrocution. The probe tips may not be long enough to contact the live parts
inside some 240V outlets for appliances because the contacts are recessed deep in the outlets. As
a result, the reading may show 0 volts when the outlet actually has voltage on it. Make sure the
probe tips are touching the metal contacts inside the outlet before assuming that no voltage is
present.
CAUTION: Do not measure AC voltages if a motor on the circuit is being switched ON or OFF.
Large voltage surges may occur that can damage the meter.
1. Set the function switch to the 600 VAC position.
2. Insert the black test lead banana plug into the negative COM jack.
Insert red test lead banana plug into the positive V jack.
3. Touch the black test probe tip to the neutral side of the circuit.
Touch the red test probe tip to the "hot" side of circuit.
4.
5. Read the voltage in the display.

DC VOLTAGE MEASUREMENTS

CAUTION: Do not measure DC voltages if a motor on the circuit is being switched ON or OFF.
Large voltage surges may occur that can damage the meter.
1. Set the function switch to the highest VDC position.
2. Insert the black test lead banana plug into the negative COM jack.
Insert the red test lead banana plug into the positive V jack.
3. Touch the black test probe tip to the negative side of the circuit. Touch
the red test probe tip to the positive side of the circuit.
4. Read the voltage in the display. Move the function switch to
successively lower VDC positions to obtain a higher resolution reading.

BATTERY VOLTAGE TEST

CAUTION: Do not measure batteries while they are installed in the devices they are powering.
The batteries must be removed from installations before tests can be made.
1. Set the function switch to the 1.5V or 9V BAT switch position. Use
the 1.5V position for 'AAA', 'AA', 'C', 'D', and other 1.5V batteries.
Use the 9V position for square 9V transistor batteries.
2. Insert the black test lead banana plug into the negative COM jack.
Insert the red test lead banana plug into the positive V jack.
3. Touch the black test probe tip to the negative side of the battery.
Touch the red test probe tip to the positive side of the battery.
4. Read the voltage in the display.
