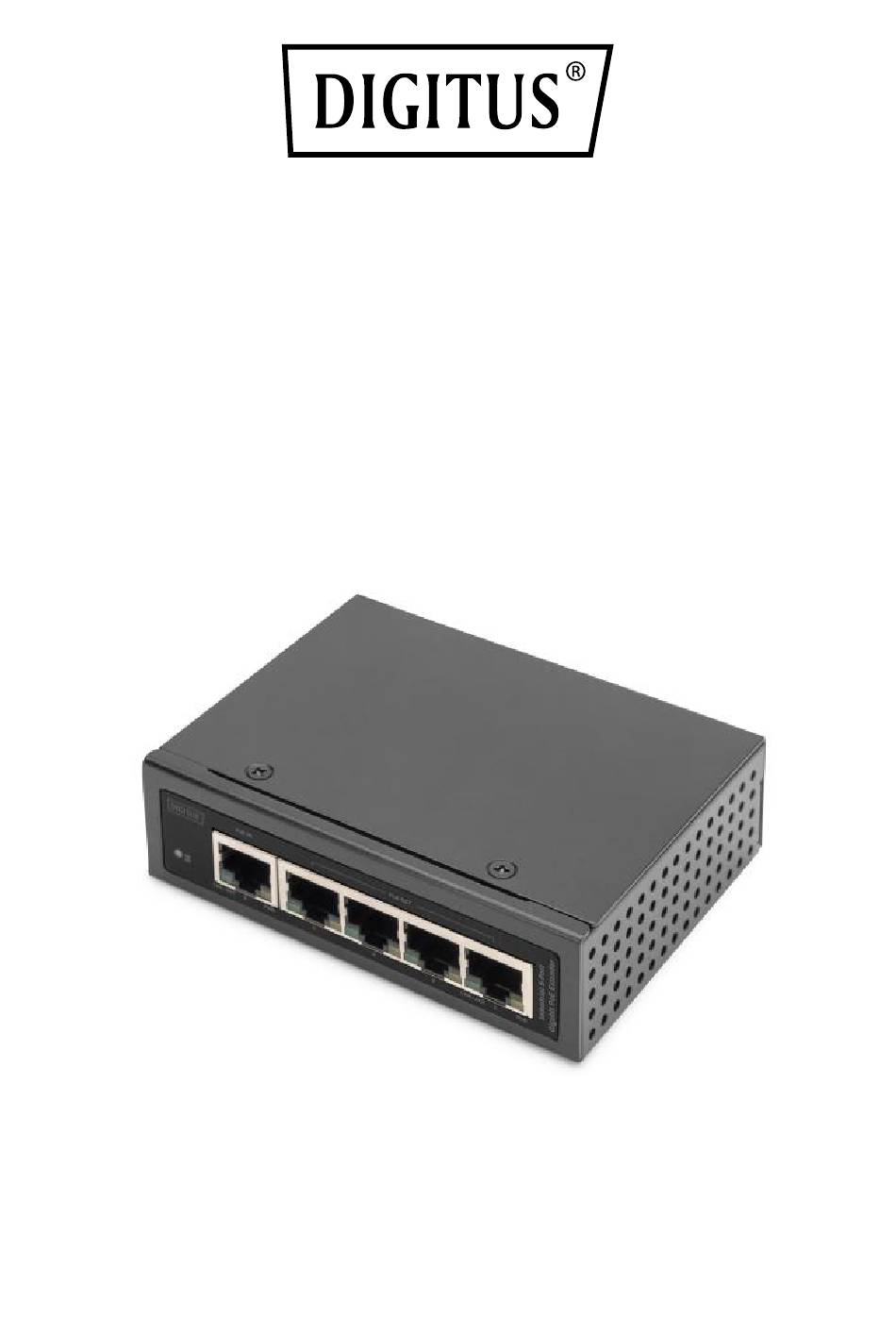

- Page 1 INDUSTRIAL 5-PORT GIGABIT PoE EXTENDER Quick Installation Guide DN-651143...
-
Page 2: Product Introduction
1 Product Introduction This PoE extender is equipped with 1 PD input to power up 4 Giga PSE output. It can be used as a standalone PD/PSE PoE injector or to extend PoE distance. It can be cascaded up to 4 units or 500 meters to deliver high power for your end device. -
Page 3: Hardware Specifications
4 Hardware Specifications IEEE 802.3 10Base-T Ethernet, IEEE 802.3u 100Base-TX Fast Ethernet, IEEE 802.3ab 1000Base-T Gigabit Ethernet, IEEE Standard IEEE 802.3x Flow Control and Back Pressure, IEEE 802.3af PoE, IEEE 802.3at PoE+, IEEE 802.3bt PoE++ Back-plane (Switching Fabric): Switch Architecture 10Gbps Data Processing Store and Forward... - Page 4 5 Operating instruction: • Connect PoE cable into port 5 (Power input 30W/60W/90W) • Can connect to max. 4 PoE powered devices (PD) from port 1 to port 4 • Can cascade another DN-651143 up to 4 units or 500m...
-
Page 5: Led Indicator
6 LED indicator bt (Green) ON–PoE IEEE 802.3bt is detected. OFF–PoE IEEE 802.3bt is not detected. LNK/ACT (Green) ON–TX port is detected. Flashing–TX data is transmitting/receiving. PWR (Amber) ON–Power is detected. OFF–Power is not detected. LNK/ACT (Green) ON–TX port is detected. Flashing–TX data is transmitting/receiving. - Page 6 7 Connecting the PoE Extender Network Switch 48 VDC PoE Injector PoE IP Camera This is a Class A product. In home environment, this product may cause radio interference. In this case, the user may be required to take appropriate measures. Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content.
