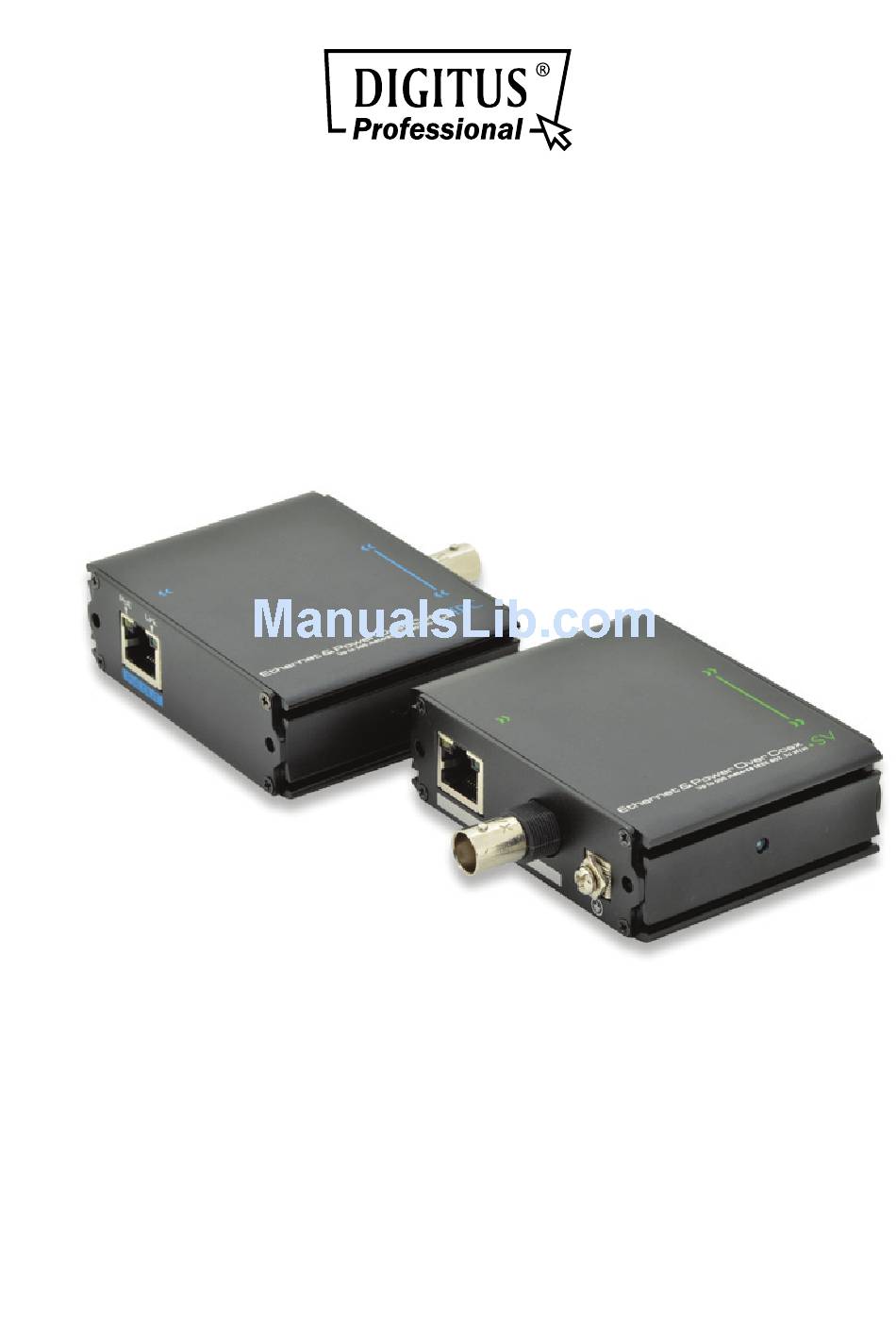

- Page 1 Fast Ethernet PoE + VDSL Extender Set Manual DN-82060...

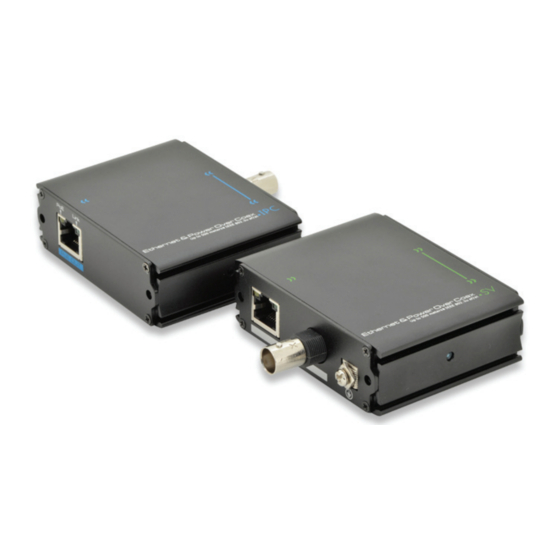

- Page 2 Ethernet Extender This Ethernet extender consists of one Transmitter-Unit and one Receiver-Unit. It can transfer Ethernet signal and power synchronously to extend signal though coaxial cable or network cable over a distance of 500m. The transmitter could be powered with 54V DC or PoE. It is widely used in coaxial cable and network cable mixed wiring security surveillance and network rebuilding project.
- Page 3 Appearance: solid and delicate, meet MIT rack installation standard, working temperature: 0℃～55 Installation: Plug-and-play, no setting required Notice Please use 75-5 standard or above coaxial cable and Cat5e/6 cable to get the longest transmission distance! Board diagram Description Installation steps Please check the following items before installation.
- Page 4 Check if the network cable and other transmission line that will be used is not occupied by other device; Use a network cable to connect PoE IN port of transmitter and PoE Ethernet switch (if it's not PoE equipment, then need to use 48-54v power adapter), use another network cable or coaxial cable to connect EPOC port of transmitter and EPOC port of receiver;...
- Page 5 Trouble Shooting 1) Please check if the RJ45 cable order is in accordance with the EIA/TIA568A or 568B industry standards 2) The maximum transmission distance depends on the signal source and cable quality; please do not exceed the maximum transmission distance 3) Please replace a failure device with a proper one to check if the device is broken 4) If the problem still exists, please contact the factory...
