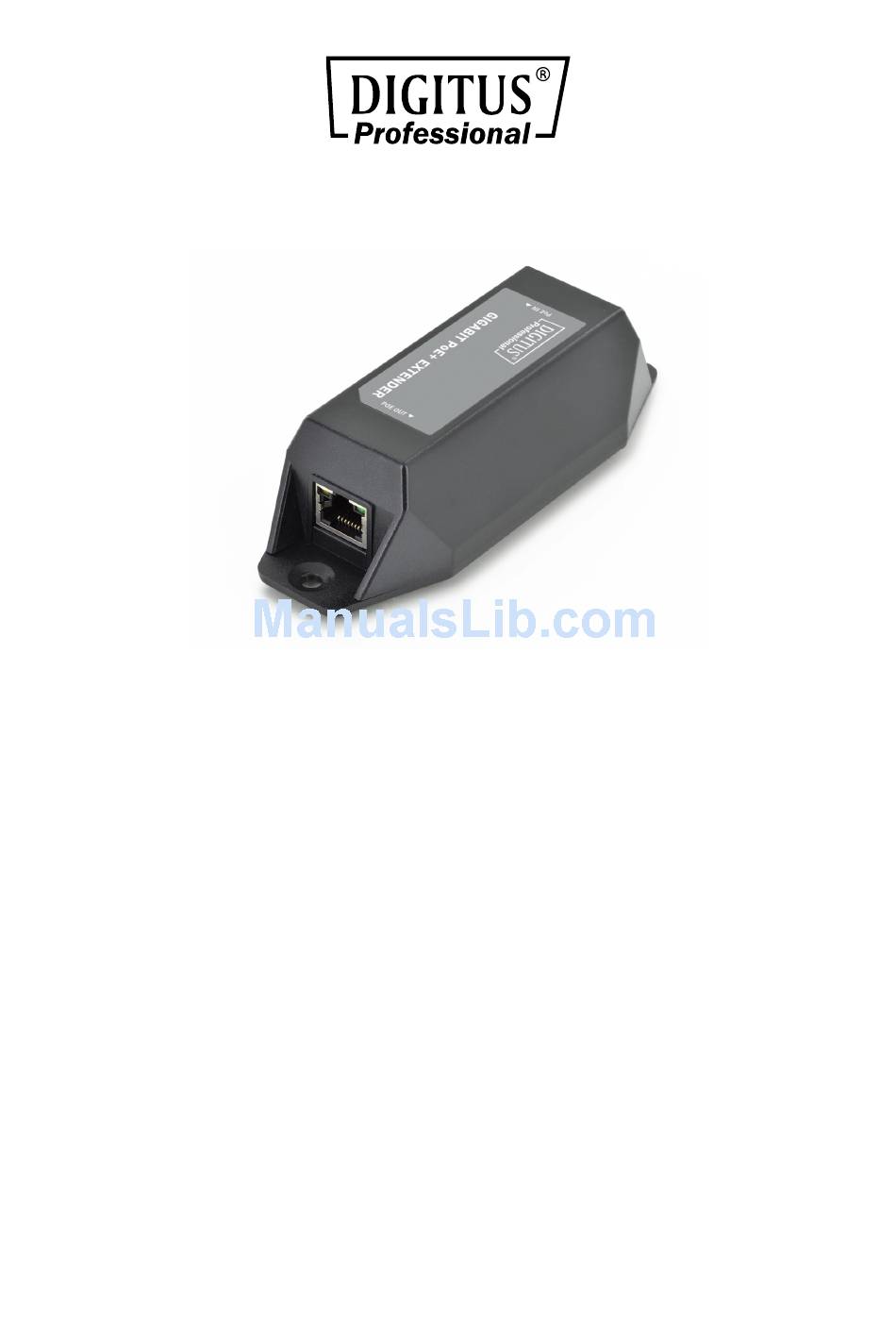

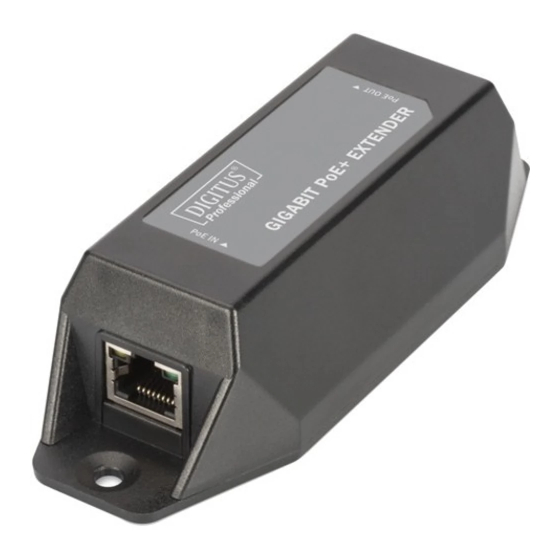

GIGABIT PoE+ EXTENDER

Manual

DN-95123

Description

Ethernet and PoE connections both restrict cable distances to 100 meters between

network ports. To overcome this distance limit, network installers can simply connect

a PoE Extender in-line with the Cat-5e or Cat-6 cable.

With PoE Extender, PDs (such as IP Security Cameras, VoIP telephones, and wireless

access points) can be installed at greater distances than 100 meters from another. By

connecting PoE Extender for every extra 100 meters of cable, both Ethernet and PoE

can be extended to 200 meters, 300 meters, or even greater distances, depending on

PDs power required and power source.

PoE Extender does not require any additional power supply and the connected PDs is

fed by a single PoE switch or mid-span, which simplifies installation. PoE Extender

offers two Ethernet ports, which are both configured automatically for link speed,

duplex and crossover and the full-rate network throughput is main-tained.

Table of Contents

Do you have a question about the DN-95123 and is the answer not in the manual?

Page 1 GIGABIT PoE+ EXTENDER Manual DN-95123 Description Ethernet and PoE connections both restrict cable distances to 100 meters between network ports. To overcome this distance limit, network installers can simply connect a PoE Extender in-line with the Cat-5e or Cat-6 cable.
Page 2: Specifications
Features Compatible with IEEE802.3af and IEEE802.3at • Extends the range of PoE and Ethernet an additional 100 meters • No additional power supply is required • Automatically detects and protects PoE equipments from being damaged by • incorrect installation Full-rate network throughout the whole extended distance •...
Page 3 Application Camera Switch PoE extender Midspan Max 100 m Max 100 m (328 ft.) Maximum Distances for Power Sources Multiple PoE Extenders can be connected every 100 meters to obtain greater distances. The actual figures depend on operating conditions. The range is over 24 AWG or heavier Cat-5e or Cat-6 cable except where specified.
Page 4 Examples for full power PoE Devices (that are PoE Class 0 or 3, or require under 12 watts) PoE Source PoE switch 15W mid-span PoE+ switch 30W mid-span (802.3af) (802.3af) (802.3at) (802.3at) Maximum Distances 200m 200m 300m 300m Examples for PoE+ Devices (that are PoE Class 4 that under 22 watts, or 802.3at compliant) PoE Source PoE switch...
