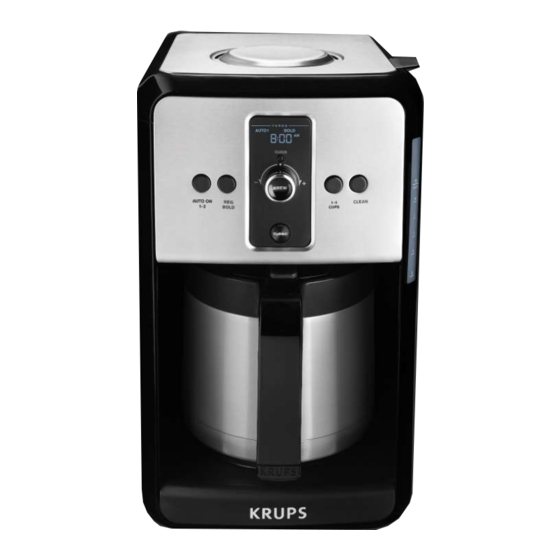

KRUPS Savoy ET451 - Thermal Coffee Maker Manual

15. CLEAN button
16. AUTO ON button
17. TURBO button
18. Filter cartridge holder
19. Filter cartridge
20. Spoon
21. Replacement indicator of the filter cartridge

BEFORE FIRST USE

• Remove stickers from your coffee maker.
• Before first use, run your coffee maker without coffee to flush the circuit. Fill the water tank up to the maximum level and begin a cycle by pressing the BREW/control knob (k).

Your appliance was designed to operate only with cold or room temperature water.

MAKING COFFEE

• Open the lid of the coffee maker (b). Fig. 4.

• Open the lid of the thermal carafe by twisting the lid so that the arrow and the word 'O PEN' are aligned. Fig. 5a.

• Fill the thermal carafe (g) with cold or room temperature water and close the lid by aligning the arrow with the word 'OPEN', then by twisting the lid so the arrow is aligned with the word 'CLOSE'. Fig. 5b.

  Pour water into the water reservoir by pressing the lever on the lid of the thermal carafe so the water starts flowing. Fig 6 and 7. The number of cups is shown by the water level indicator. Do not exceed 12 cups. Fig. 8.

• Place the thermal carafe (g) with its closed lid onto the base (h) making sure that it is properly positioned so as to activate the coffee pouring mechanism. Fig. 11.

• Make sure that the filter holder (j) is inserted. Fig. 9. Insert the permanent filter (k) Fig. 10a or a # 4 paper filter Fig. 10b into the filter holder (j). If using a paper filter, make sure it is fully opened and properly positioned in the filter holder.

• We recommend removing the filter holder with the filter before adding the ground coffee. If you accidentally pour ground coffee into the water tank, do not start the cycle. C lean the tank, otherwise the coffee mayblock the water circuit.
• Add 1 KR UPS spoon (t) of ground coffee per cup. Do not exceed 12 spoons (2 ounces). Fig. 12.

• Close the lid (b).
• Press the BREW/control knob (k). The control knob light will come on to show that the coffee maker has started the BREW cycle. The machine will beep once. Fig. 13.

• At the end, your machine will beep 3 times and the BREW/control knob (k) will turn off.
• Remove the thermal carafe from the coffee maker so that the coffee is kept hot.
• In order to pour coffee from the thermal carafe, press the lever on the lid. Fig. 14.

• At any time during the BREW cycle, you may turn off the coffee maker by pressing the BREW/control knob (k). The light on the BREW/control knob will also go out. It beeps 3 times prior to turning off.
  Even if the BREW cycle has ended, there is still hot liquid in the filter. Wait a few minutes for the rest of the liquid to flow into the carafe before removing the filter.

Note:

• The amount of coffee in the carafe at the end of the cycle is less than the amount of water poured into thewater tank, since the ground coffee and the filter absorb about 10% of it.
• The water tank is equipped with an overflow outlet at the rear of the appliance. If you add too much water, it will come out of this opening.
• Clean the permanent filter in between each use, or use a paper filter.

• To avoid overflowing, the carafe should be properly placed on the warming plate of the coffeemaker, otherwise the hot water or hot coffee may overflow.
• The coffee maker becomes very hot during the BREW cycle. Handle it carefully.

OTHER FEATURES

6A – AUTO START FUNCTION
Programming the auto-start settings.

• Your appliance is equipped with two auto-start programs.
• Check whether the clock is set to the right time. If not, follow the instructions in the SETTING THE CLOCK section.
• Press the AUTO O N button. An AUTO 1 icon displays on screen. Fig. 16.

• Turn the B REW/control knob (k) to set the time. C onfirm by pressing the B REW/control knob (k). The time is displayed. Fig. 17 and 18.

• Without validation with the BREW/control knob (k), the time is recorded automatically after about 5 seconds.
• To set the second program, push the AUTO O N button twice, so that the AUTO 2 icon appears on screen. Fig. 19.

• Turn the B REW/control knob (k) to set the time. Validate by pressing the B REW/control knob (k). The time is displayed. Fig. 20 and 21.

• If you do not confirm using the BREW/control knob (k), the time is recorded automatically after about 5 seconds.

Activate a delayed start-up when the time is already pre-set.

• Select AUTO 1 or AUTO 2 by pressing the AUTO ON button. Press the BREW/control knob (k) to launch auto-start program.

6B – TURBO FUNCTION
This function enables you to brew your coffee faster by reducing the cycle time.

• Press the TURBO button. Fig. 15

• The TURBO icon will appear on the screen.
• This function will be saved in the memory of your coffee machine for future cycles. You can stop this function by pressing the TURBO button once more.

6C – REGULAR OR BOLD

• This feature allows you to make a coffee that is more or less full-bodied.
• The BOLD feature increases the time of the cycle for a stronger coffee.
• Press the REGULAR or BOLD button to select the intensity of your coffee. Fig. 22.

• The REG or BOLD icon appears on screen.
• The feature is stored in the memory for subsequent cycles.

6D – 1- 4 CUPS

• To activate this feature, press the 1-4 button (n) before starting the cycle. Fig. 23.

• This feature is especially designed for making small amounts of coffee, i.e. between 2 and 4 cups. It makes it easier to extract optimal aroma and flavor.

CLEANING

• To dispose of used ground coffee, remove the filter and the filter holder of the coffee maker. Fig. 24a-b and 25a-b.

• Do not clean the appliance if it is still hot.
• Wash the carafe, the removable filter holder and the permanent filter with warm, soapy water. You may place the carafe in the dishwasher.

Do not place the carafe in the microwave.

Do not put other parts of the coffee maker into the dishwasher.

• Clean the coffee maker with a damp cloth or sponge. Never use abrasive or strong products on any part of the coffee maker.
• To clean the stainless steel parts of your coffee maker, dampen a soft cloth or sponge with warm water. Wipe carefully with a dry cloth.
• For difficult stains, use a cloth with white vinegar.
• Do not immerse the appliance in water or under the tap.

DESCALING

• Why descale
  • Limestone forms naturally in your coffee maker. Descaling preserves the coffee maker and ensures it will lastlonger and provide quality coffee over time. Limestone can permanently affect the machine's performance. Malfunctions associated with scaling will not be covered by the warranty if the product is returned.
• When to descale
  • When descaling is necessary, your machine will tell you and the CLEAN icon will appear on screen.
  • However, the descaling frequency depends on the hardness of the water and the number of REW cycles. It may be necessary to descale your coffee machine if you notice the following signs, even if the CLEAN message does not appear on the screen: longer cycle time, excessive steaming, more noise at the end of the cycle, stopping mid-cycle; this means that your machine needs to be descaled.
  • Descaling should be done about once a month, depending on the hardness of the water.

How to descale your KRUPS coffee maker

• Remove the filter cartridge. Fig. 26.

• Use the KRUPS descaling solution® or 5 fl. oz of white vinegar diluted in 17 fl.oz of cold or water at room temperature or 1.5 oz of citric acid diluted in 17 fl. oz until the crystals have completely dissolved. Fig. 27.

• Pour the solution into the water tank (without coffee). Fig. 28.

• Press the CLEAN button (o) and then the BREW/control knob (k) to start the descaling cycle. Fig. 29.

• The cycle lasts for 30 min.
• Please wait until the end of the cycle.
• If the water tank is not empty, please launch another descaling cycle by pressing CLEAN button. To rinse the machine, run 2 full 12 cups cycles with water but without coffee. Fig. 30.

• Repeat the operation if needed.
• Replace the filter cartridge. Fig. 34 and 35.

• The warranty does not cover coffee makers that do not work, or do so poorly, due to lack of descaling.

DUO FILTER CARTRIDGE

• Your appliance allows you to filter with the DuoFilter filters: double action filter – reduces chlorine and scaling – based on active plant ingredients. This Duo Filter allows you to enjoy the most delicate aromas of your coffee and reduces the need to descale.
• In its upper part, the filter cartridge support is equipped with an indicator for replacement of the cartridge.
• Select the number of the month when you replaced the filter. It will display the month when you should change your filter according to water hardness. Fig. 33.
• To change the filter, remove the DuoFilter from the tank. Fig. 32.
• Open it by unlatching and opening the lower part and replacing it. Fig. 34.
