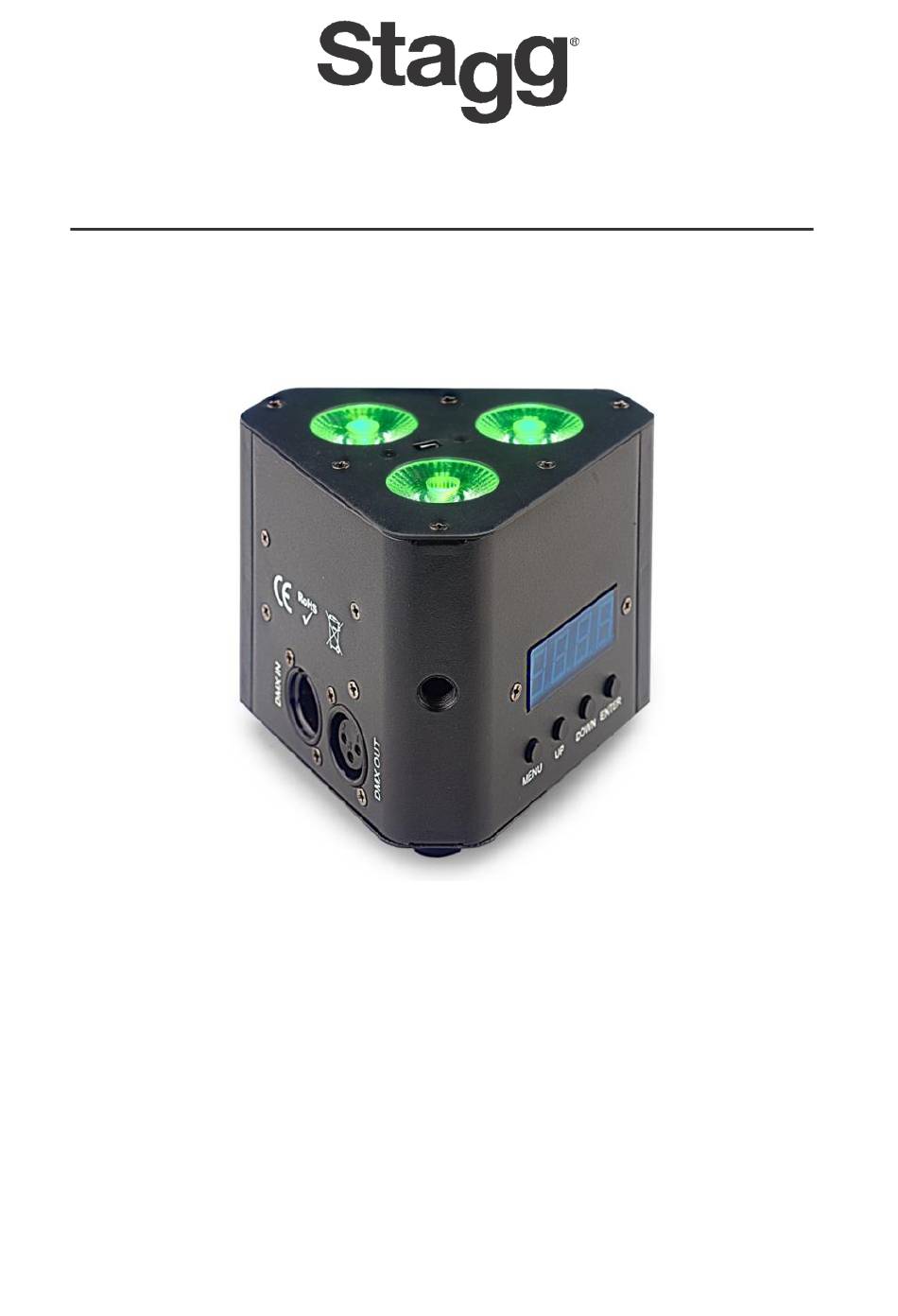

- Page 1 USER MANUAL Truss34 SLI-TRUSS34 Please read the instructions carefully before use...
-
Page 2: Safety Instructions
SAFETY INSTRUCTIONS Please read the instructions carefully as they include important information about the installation, operation and maintenance. • Please keep this user’s guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. •... - Page 3 • Do not operate in a dirty or dusty environment. Clean fixtures regularly. • Do not allow children unsupervised to operate the fixture. • Do not touch any wire during operation as there might be a hazard of electric shock. •...
-
Page 4: Installation
INSTALLATION The unit should be mounted via its screw holes. Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating. Always ensure that the structure to which you are attaching the unit is secure and able to support 10 times the unit’s weight. -
Page 5: Setting Up The Device
SETTING UP THE DEVICE... - Page 6 DMX Mode With the menu button, select the DMX mode (dxxx) and press the enter key to confirm. Then use the up and down buttons to choose the desired DMX channel (1 – 512) and press the enter key to confirm. Then use the up and down buttons to select the desired channel mode (4, 6 or 8 channels) then press enter.
- Page 7 8 Channels Channel Function Value Note Dimmer 0-255 Strobe 0-255 Slow -> Fast Manual CH4 -8 are enabled Program1 001-035 Program2 036-071 Program3 072-107 Program4 108-143 Program5 144-179 Program6 180-215 Program7 216-251 Sound 252-255 Speed (If CH3≠0) 0-255 Colour 1 0~14 Colour 2 15~29...
- Page 8 Sound Mode With the menu button, select the Sound mode (Soud) and press the enter key to confirm. Then use the up and down buttons to select the desired sensibility of the microphone from Sen0 to Sen9. Show Mode With the menu button, select the Show mode (Shou) and press the enter key to confirm.
- Page 9 Automatic mode With the menu button, select the automatic mode (Auto) and press the enter key to confirm. In this mode, the fixture will play a variety of in-built effects at various speeds. Set Menu With the menu button, select the “Set” menu and press the enter key to confirm. Then use the enter key ton enter the “remo”...
-
Page 10: Dmx512 Connections
Warning To avoid signal transmission problems and interferences when using fixtures in chain, use a Stagg N-series professional 3-pin DMX terminator (resistance: 120 ohms; pin2: DMX-; pin3:DMX+). FIXTURE CLEANING An internal cleaning must be carried out periodically to optimize the light output. The... - Page 11 For more info and the latest product updates: staggmusic.com EMD Music S.A. Boulevard Général Wahis 16A 1030 Brussels Belgium 05/2018...
