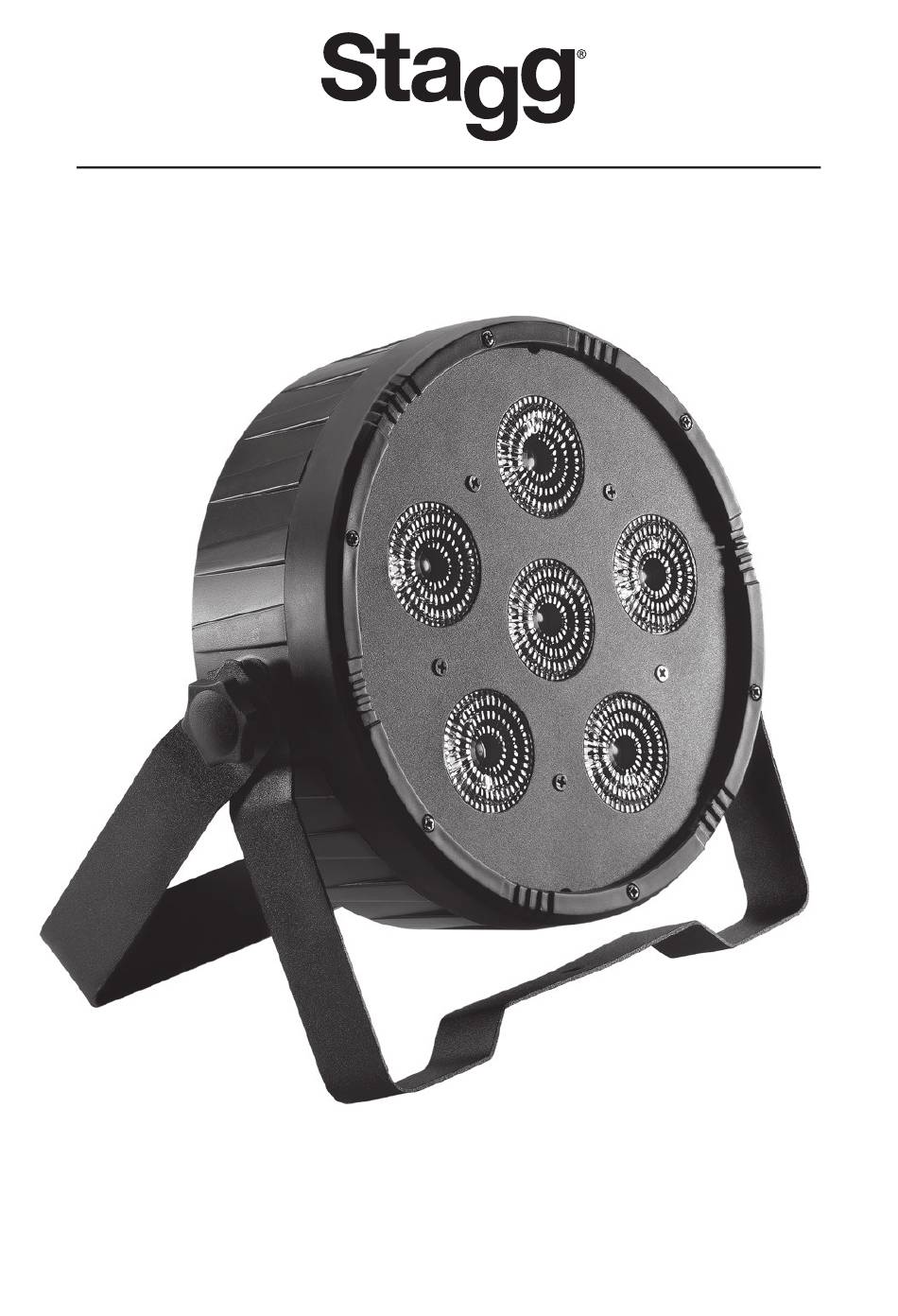

- Page 1 USER MANUAL EcoPar6 SLI-ECOPAR6 Please read the instructions carefully before use...
-
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Please read the instructions carefully as they include important information about the installation, operation and maintenance. • Please keep this user’s guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. •... -
Page 4: Installation
• Do not allow children unsupervised to operate the fixture. • Do not touch any wire during operation as there might be a hazard of electric shock. • Avoid placing power wires next to other cables. • Disconnect the mains power before replacing or servicing the fusewires or the lamp. -
Page 5: Technical Specifications
TECHNICAL SPECIFICATIONS • Three kinds of operating modes: DMX, master and slave, sound control • DMX channel mode: 6/10 CH • The intensity of the dimming and strobe functions can be adjusted between 0 and 100 % • Suitable for night clubs, bars, mobile DJs, etc. •... - Page 6 SETTING THE FIXTURE DMX Mode Channel selection mode Master and slave mode Performance mode Blacklight mode MENU Reverse the display Balance Manual mode Auto-test Overall hours Current temperature...
- Page 7 DMX Mode With the menu button, select the Addr mode and press the enter key to confirm. Then use the up and down buttons to choose the desired DMX channel (A001 – A512) and press the enter key to confirm. Press the menu button to return to the main menu.
- Page 8 Blacklight mode With the menu button, select the LED mode and press the enter key to confirm. Then use the up and down buttons to set the blacklight mode on or off and press the enter key to confirm. Press the menu button to return to the main menu. Reverse the display With the menu button, select the disp mode and press the enter key to confirm.
-
Page 9: Infrared Remote Control
Overall hours With the menu button, select the Fhrs mode and press the enter key to confirm. The overall use of the device is displayed in hours. Press the menu button to return to the main menu. Current temperature With the menu button, select the Temp mode and press the enter key to confirm. The temperature of the device is displayed in degrees Celsius. -
Page 10: Dmx512 Connections
The DMX512 is widely used in intelligent lighting control, with a maximum of 512 channels. Warning To avoid signal transmission problems and interferences when using fixtures in chain, use a Stagg N-series professional 3-pin DMX terminator (resistance: 120 ohms; pin2: DMX-; pin3:DMX+). -
Page 11: Fixture Cleaning
6 CH CHANNEL MODE 10 CH CHANNEL MODE FIXTURE CLEANING An internal cleaning must be carried out periodically to optimize the light output. The cleaning frequency depends on the environment in which the fixture operates: a damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the fixture’s optics. - Page 12 11/2015...
