ICP DAS USA WF-2017 Quick Start Manual

Hide thumbs Also See for WF-2017:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
「 WF-2017」Package Checklist
The package includes the following items:
One WF-2017 module
One Quick Start
One software utility CD
One screw driver
One RS-232 cable (CA-0910)
One Antenna 2.4GHz - 5 dBi (ANT-124-05)
Note:
1.
If any of these items are missed or damaged, contact the local distributors
for more information. Save the shipping materials and cartons in case you
want to ship in the future.
2.
This document supports the RevB version for the WF-2017 module. For
the previous version, please refer the v1.x version quick start on the CD.
Appearance and pin assignments

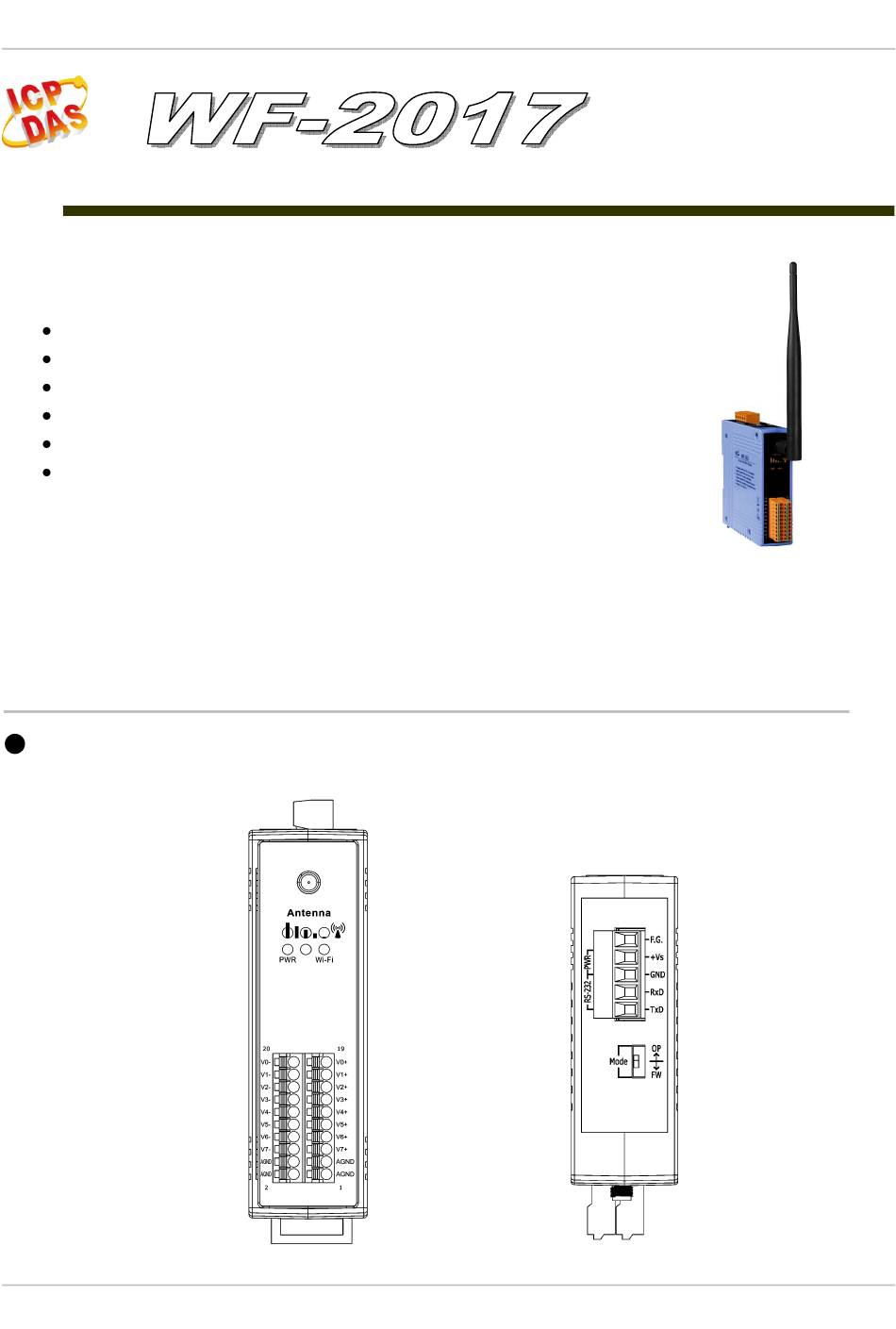

Figure 1: Appearance of the WF-2017
WF-2017 Quick Start RevB1.0 2016/09
Quick Start
1/8

Advertisement

loading
Need help?

Need help?

Do you have a question about the WF-2017 and is the answer not in the manual?

Questions and answers

Related Manuals for ICP DAS USA WF-2017

Summary of Contents for ICP DAS USA WF-2017

  • Page 1 Save the shipping materials and cartons in case you want to ship in the future. This document supports the RevB version for the WF-2017 module. For the previous version, please refer the v1.x version quick start on the CD.
  • Page 2 WF-2017 Quick Start RevB1.0 2016/09 Figure 2: I/O Connector of WF-2017 Table 1: Power/Signal Connector Power/Signal connector Pin Assignment Description Frame Ground +10 ~ +30 VDC Power / RS-232 GND RS-232 RxD RS-232 TxD Table 2: Operating Mode Selector Switch...

  • Page 3: Hardware Connection

    WF-2017 Quick Start RevB1.0 2016/09 Hardware Connection Power and Serial port connection Figure 3: Power and Serial port wire connection I/O connection Figure 4: Wire connections...

  • Page 4: Installation

    WF-2017 Quick Start RevB1.0 2016/09 Installation Before use, associated hardware configuration, the steps described as follows： Step 1: Checking the WF-2000 series firmware operation mode It needs to set the DIP switch to the "OP" position (operation mode), as resetting the power, WF-2000 series will be in the operation mode.
  • Page 5 05、Wi-Fi Mode : Wireless network connection mode settings. Here set to "Limited AP" mode. (If select the "Limited AP" mode, the "DHCP Server" function is enabled) 06、SSID : Service set identifier. Here set to "WF-2017". 07、Encryption : Encryption mode settings. Here set "NONE" (without encryption).
  • Page 6 WF-2017 Quick Start RevB1.0 2016/09 02、Wireless network connection : a. View available wireless networks and you can see the "WF-2017" wireless network in the list. b. Select the "WF-2017" and press the "Connect" button. c. After waiting for a while, there will appear connection success screen.
  • Page 7 WF-2017 Quick Start RevB1.0 2016/09 Figure 8: Analog Input reading screen WF-2017 AI Address Mapping Table 2: (3xxxx) AI address Begin Address Points Descriptions Range Access Type 30001 1~16 Analog Input -32768 ~ +32767 (0x0) 0 ~ 1 30017 AI Wire Select 0 =>...

  • Page 8: Technical Support

    WF-2017 Quick Start RevB1.0 2016/09 Troubleshooting Item Problem Description Solution Power Failure 1. Please return to the ICP DAS for inspection and (PWR LED Off) repair 1. Make sure that the service set identifier device (SSID) settings are the same.
