ASSEMBLY

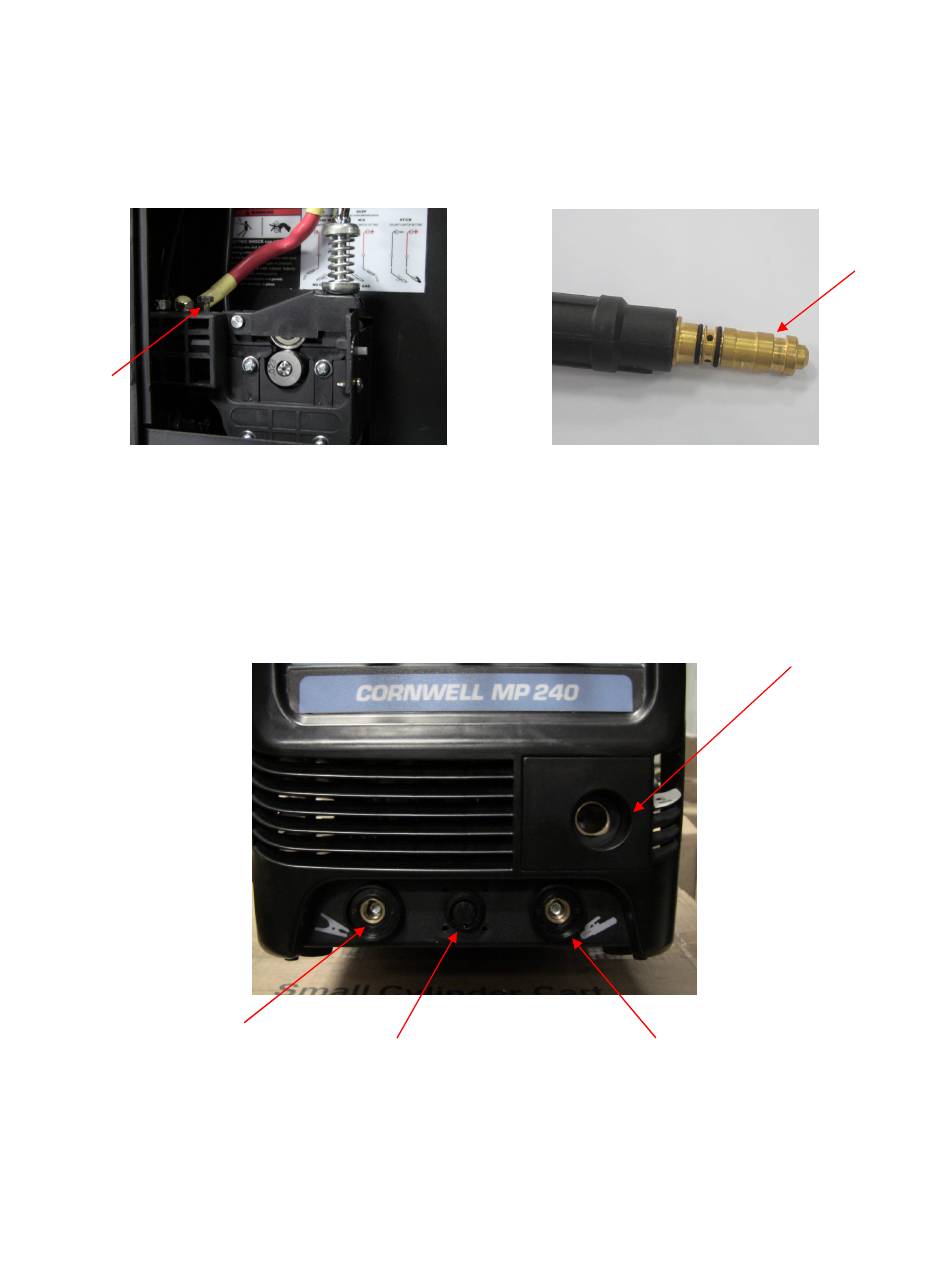

1. MIG TORCH ASSEMBLY

1.1 Locate the retaining bolt inside the front panel on the drive system. Loosen the retaining bolt.
1.2 Make note of the retaining groove on the back end of the MIG torch.
Retaining
Bolt
1.3 Insert the back end of the MIG torch into the MIG socket on the front of your machine. Make
certain to completely slide the torch all the way in. Slightly twist to assist with pushing the torch to
the back of the receptacle. The retaining bolt can then be tightened, making certain the bolt sets
down into the retaining groove on the back of the MIG torch.
Negative (-)
Weld Output
Connection
1.4 Connect the 5-Pin trigger connection on the MIG torch to the 5-Pin trigger receptacle on the
front panel.
5-Pin Trigger
Receptacle
Page 9 of 36
MIG
Socket
Positive (+)
Weld Output
Connection
Retaining
Groove
