Advantech AIMB-788 Startup Manual

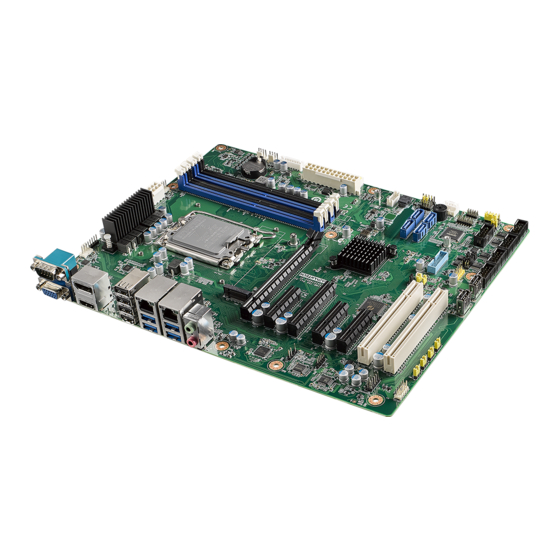

AIMB-788 LGA1700 Intel
Motherboard with DP/HDMI/VGA, DDR4, USB 3.2, M.2
Startup Manual
Packing List
Before you begin installing your card, please make sure that
the following items have been shipped:
• 1 x AIMB-788 motherboard
• 1 x AIMB-788 Startup Manual
• 2 x Serial ATA HDD data cables
• 1 x I/O port bracket
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Specifications
Standard Functions
• CPU: LGA1700 socket supporting 12th/13th Gen Intel
Core™ i9/i7/i5/i3/Pentium®/Celeron® processors.
• BIOS: AMI 256 Mbit SPI BIOS
• Chipset: Intel Q670E PCH
®
Note: Legacy platforms are not supported.
• System memory: Up to 128 GB in four 288-pin DIMM
sockets, supporting dual-channel DDR4 3200 SDRAM.
AIMB-788 supports non-ECC unbuffered DIMMs and
does not support any memory configuration that mixes
non-ECC with ECC unbuffered DIMMs.
• M.2 socket: One M.2 socket supports up to PCIe x4 Gen
4 M-Key 2280 type storage devices.
For more information on this and other Advantech prod-
ucts, please visit our website at:
http://www.advantech.com
For technical support and service, please visit our sup-
port website for AIMB-788 at:
http://advt.ch/aimb788spt
Register your products on our website and get 2 months
extra warranty for free at:
http://www.register.advantech.com
This manual is for the AIMB-788 series Rev. A1, and all
specifications are subject to the datasheet on the official
website. The information in this manual is subject to
change without notice.
Part No. 2041078801
Printed in China
Core™ i9/i7/i5/i3 ATX
®
Specifications (Cont.)
• SATA interface: Four on-board Serial ATA 3.0 connectors
support data transmission rates up to 600 MB/s. All four
SATA 3.0 ports support Advanced Host Controller Inter-
face (AHCI) technology.
• PCIe and PCI slot: 1 PCIe x16 Gen 4 expansion slot, 1
PCIe x8 expansion slot (x4 Gen 3 link), 3 PCIe x4 Gen
3 expansion slots, 2 PCI slots 32-bit/33 MHz PCI 2.2
compliant.
• USB 3.2/2.0: 2 USB 3.2 Gen 2 ports on the rear with up
to 10 Gb/s data rate, 4 USB 3.2 Gen 1 ports (2 rear, 2 via
header), 8 USB 2.0 ports (4 rear, 2 via header, 2 internal
Type-A).
• Serial port: Six serial ports: COM1, COM2 and COM4 ~
6 are RS-232; COM3 is RS-232/422/485 with jumper and
BIOS menu options.
®
• SPI interface: Advantech-designed SPI connector sup-
ports optional dTPM 2.0 module.
• Watchdog timer: 255 timer level intervals.
Graphics Interface
• Chipset: CPU integrated graphics controller.
• Display memory: 1 GB maximum shared memory with 2
GB and above system memory installed.
• DisplayPort: Resolution up to 4096 x 2304 @ 60 Hz
refresh rate.
• HDMI: Resolution up to 3840 x 2160 @ 30 Hz refresh
rate.
• VGA: Resolution up to 1920 x 1200 @ 60 Hz refresh rate.
Ethernet Interface
• Interface: 10/100/1000 Mbps.
• Controller: LAN1: Intel
Mechanical and Environmental
• Dimensions (L x W): 304.8 x 244 mm (12" x 9.6")
• Power consumption: Intel® Core™ i 65W; DDR4 32 GB x 4
Maximum: +3.3 V at 1.41 A, +5 V at 2.42 A, +12 V at 0.24 A,
+5 Vsb at 0.13 A, -12 V at 0.04 A, -5 V at 0.05 A
• Operating temperature: 0 ~ 60 °C (depending on CPU load-
ing and thermal solution)
• Weight of board: 0.7 kg (1.54 lb)
2nd Edition
March 2023
I219-LM; LAN2: Intel I210-AT.
® ®
AIMB-788 Startup Manual 1
