Advantech AIMB-785 Startup Manual

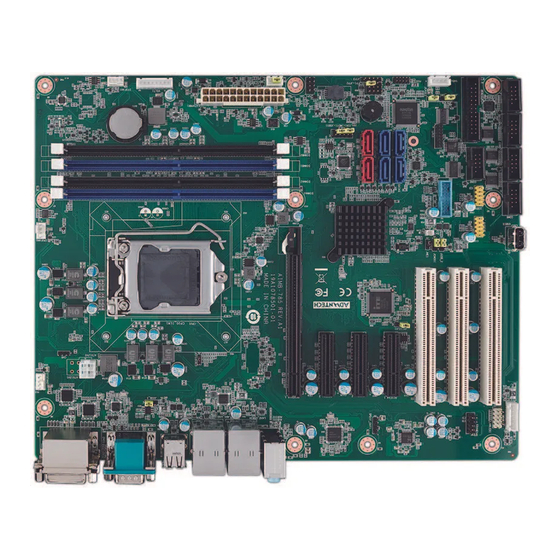

AIMB-785 LGA1151 Intel® Core™ i7/i5/i3 ATX with
Triple Display, DDR4, SATA III
Startup Manual
Packing List
Before you begin installing your card, please make sure that
the following items have been shipped:
• 1 AIMB-785 Startup Manual
• 1 Driver CD (user's manual is included)
• 2 Serial ATA HDD data cables
• 1 Serial ATA HDD power cables
• 1 I/O port bracket
• 1 Warranty card
• 1 Startup manual
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Note:
Acrobat Reader is required to view any PDF
file. Acrobat Reader can be downloaded at:
www.adobe.com/Products/acrobat/readstep2.
html (Acrobat is a trademark of Adobe)
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and service, please visit our
support website at:
http://www.advantech.com/support
This manual is for the AIMB-785 series Rev. A1.
Part No. 2001078510
Printed in China
1st Edition
Spetember 2015
Specifications
Standard Functions
• CPU: LGA1151 6th Generation Intel® Core™ i7/i5/i3/
Celeron/Pentium
• BIOS: AMI 128 Mb SPI BIOS
• Chipset: Intel® Q170 chipset
• System memory: Up to 64 GB with four 288-pin
DIMM sockets. Supports dual channel non-ECC DDR4
1866/2133
Note: Due to the inherent limitations of PC architecture, the
system may not fully detect 64 GB RAM when 64 GB RAM
is installed
• SATA interface: Six on-board Serial ATAIII connectors
support data transmission rate up to 600 MB/s. All six
SATAIII ports support Advanced Host Controller Interface
(AHCI) technology
• LPC interface: Advantech-designed LPC connector sup-
ports TPM module
• Serial ports: Six serial ports: COM1, COM2 and COM4 ~
6 are RS-232; COM3 is RS-232/422/485 with BIOS menu
options
• Parallel port: One parallel port, which supports SPP/
EPP/ECP modes
• Keyboard/mouse connector: Supports standard PS/2
keyboard and mouse
• Watchdog timer: 255 sec timer level intervals
• USB 3.0/2.0: Thirteen USB ports: 1/2/3/4/13/14 are
USB3.0; others are USB2.0
Graphic Interface
• Chipset: CPU integrated graphics controller
• Display Memory: 1 GB maximum shared memory with 2
GB and above system memory installed
• Resolution: Supports DVI up to 1920 x 1200 resolution@
60 Hz refresh rate
Supports VGA up to 1920 x 1200 resolution @ 60 Hz
refresh rate

Ethernet interface

• Interface: 10/100/1000 Mbps
• Controller: LAN1: Intel

Mechanical and Environmental

• Dimensions (L x W): 304.8 x 244 mm (12" x 9.6")
• Power supply voltage: +3.3 V, +5 V, +12 V, +5 Vsb
• Power Consumption:
Intel Core Intel I7-6700 3.4 GHz; DDR4 8 G x 4
Maximum: +3.3 V at 1.02 A, +5 V at 1.96 A, +12 V at 1.14
A, +5 Vsb at 0.08 A, -5 V at 0.03 A, -12 V at 0.06 A
• Operating temperature: 0 ~ 60° C (depending on CPU)
• Weight: 0.5 kg (weight of board)
I219LM; LAN2: Intel I211AT
® ®
AIMB-785 Startup Manual 1
