Advantech AIMB-787 Startup Manual

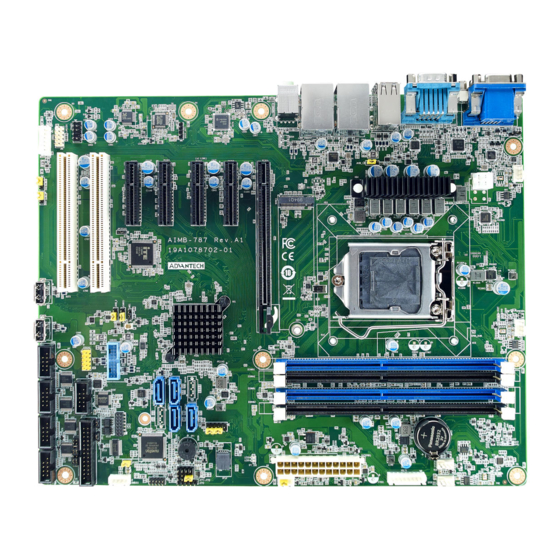

AIMB-787 LGA1200 Intel® Core™ i9/i7/i5/i3 ATX with
Triple Display, Dual GbE LAN, M.2, USB 3.2, DDR4
Startup Manual
Packing List
Before you begin installing your card, please make sure that
the following items have been shipped:
• 1 AIMB-787 Startup Manual
• 2 Serial ATA HDD data cables
• 1 I/O port bracket
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Specifications
Standard Functions
• CPU: LGA1200 socket supporting 10th generation Intel®
Core™ i9/i7/i5/i3/Pentium/Celeron processor.
• BIOS: AMI 256 Mbit SPI BIOS.
• Chipset: Intel® Q470E PCH.
Note:
Legacy platforms are not supported.
• System memory: Up to 128 GB in four 288-pin DIMM
sockets supporting dual-channel DDR4 2400/2666/2933
SDRAM. AIMB-787 supports non-ECC unbuffered DIMMs
and does not support any memory configuration that
mixes non-ECC with ECC unbuffered DIMMs.
• M.2 socket: One M.2 socket supports up to PCIe x4 M-
key 2280 type storage devices.
For more information on this and other Advantech prod-
ucts, please visit our website at:
http://www.advantech.com
For technical support and service, please visit our sup-
port website for AIMB-787 at:
http://advt.ch/aimb787spt
Register your products on our website and get 2 months
extra warranty for Free at:
http://www.register.advantech.com
This manual is for the AIMB-787 series Rev. A1.
Part No. 2041078700
Printed in China
Specifications (Cont.)
• SATA interface: Four on-board Serial ATA 3.0 connectors
support data transmission rates up to 600 MB/s. All four
SATA 3.0 ports support Advanced Host Controller Inter-
face (AHCI) technology.
• PCIe and PCI slot: 1 PCIe x16 expansion slot, 4 PCIe
x4 expansion slots (three x4 link, one x1 link), 2 PCI slots
32-bit/33 MHz PCI 2.2 compliant.
• USB 3.2/2.0: 2 USB 3.2 Gen 2 ports on rear with up to
10 Gb/s data rate, 4 USB 3.2 Gen 1 ports (2 rear, 2 via
header), 8 USB 2.0 ports (4 rear, 2 via header, 2 internal
Type-A).
• LPC interface: Advantech-designed LPC connector sup-
ports TPM module.
• Serial port: Six serial ports: COM1, COM2 and COM4 ~
6 are RS-232; COM3 is RS-232/422/485 with jumper and
BIOS menu options.
• Parallel port: One parallel port, which supports SPP/
EPP/ECP mode.
• Keyboard/mouse connector: The motherboard is not
equipped with rear PS/2 connector for keyboard/mouse.
A 6-pin onboard header is supported for an optional PS/2
keyboard/mouse cable.
• Watchdog timer: 255 sec timer level intervals.
Graphic Interface
• Chipset: CPU integrated graphics controller.
• Display memory: 1 GB maximum shared memory with 2
GB and above system memory installed.
• DisplayPort: Resolution up to 4096 x 2304 @ 60 Hz
refresh rate.
• DVI-D: Resolution up to 1920 x 1200 @ 60 Hz refresh
rate.
• VGA: Resolution up to 1920 x 1200 @ 60 Hz refresh rate.
Ethernet interface
• Interface: 10/100/1000 Mbps.
• Controller: LAN1: Intel
Mechanical and Environmental
• Dimensions (L x W): 304.8 x 244 mm (12" x 9.6")
• Power supply voltage: +3.3 V, +5 V, ±12 V, +5 Vsb
• Power consumption:
Intel Core i5-10500E; DDR4 16 GB x 4
Maximum: +3.3 V at 5.56 A, +5 V at 4.02 A, +12 V at 6.28 A,
+5 Vsb at 0.16 A, -12 V at 0.1 A
• Operating temperature: 0 ~ 60° C (depending on CPU)
• Weight of board: 0.7 kg (1.54 lb)
1st Edition
Aug 2020
I219-LM; LAN2: Intel I210-AT.
® ®
AIMB-787 Startup Manual 1
