Advantech AIMB-788E Startup Manual

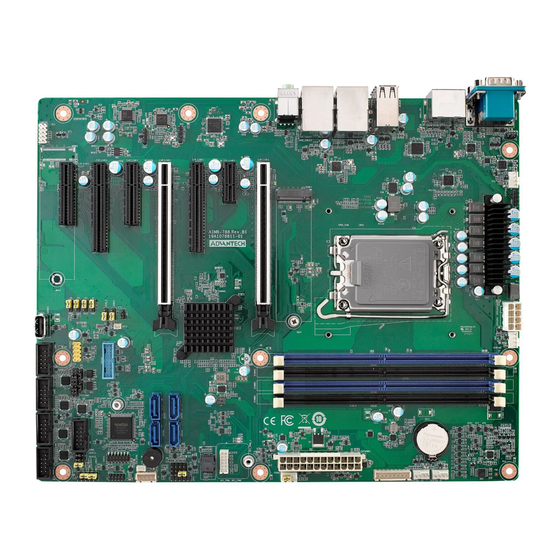

AIMB-788E LGA1700 Intel
Motherboard with DP/HDMI/VGA, DDR5, USB 3.2, M.2
Startup Manual
Packing List
Before you begin installing your card, please make sure that
the following items have been shipped:
• 1 x AIMB-788E motherboard
• 1 x AIMB-788E startup manual
• 2 x Serial ATA HDD data cables
• 1 x I/O port bracket
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Specifications
Standard Functions
• CPU: LGA1700 socket supporting 12th/13th/14th Gen
Intel Core™ i9/i7/i5/i3/Pentium®/Celeron® processors.
®
• BIOS: AMI 256 Mbit SPI BIOS
• Chipset: Intel
Q670E PCH
®
Note: Legacy platforms are not supported.
• System memory: Up to 192 GB in four 288-pin DIMM
sockets, supporting dual-channel DDR5 4400 SDRAM.
AIMB-788E supports non-ECC unbuffered DIMMs and
only AIMB-788E-XR version supports any memory
configuration that mixes non-ECC with ECC unbuffered
DIMMs.
For more information on this and other Advantech prod-
ucts, please visit our website at:
http://www.advantech.com
For technical support and service, please visit our sup-
port website for AIMB-788E at:
https://advt.ch/aimb788espt
Register your products on our website and get 2 months
extra warranty for free at:
http://www.register.advantech.com
This manual is for the AIMB-788 series Rev. B1, and all
specifications are subject to the datasheet on the official
website. The information in this manual is subject to
change without notice.
Part No. 2041788E00
Printed in China
Core™ i9/i7/i5/i3 ATX
®
Specifications (Cont.)
• M.2 socket: M.2 socket supports up to PCIe x4 Gen 4
M-Key 2280 type storage devices.
• SATA interface: Four on-board Serial ATA 3.0 connectors
support data transmission rates up to 600 MB/s. All four
SATA 3.0 ports support Advanced Host Controller Inter-
face (AHCI) technology.
• PCIe slot: 2 PCIe x16 Gen 4 expansion slot (1 x Gen5 x8
link, 1 x Gen4 x8 link), 2 PCIe x8 expansion slot (1 x Gen
4 x4 link, 1 x Gen3 x4 link), 2 PCIe x4 expansion slots
(1 x Gen 4, 1 x Gen3, only 1 Gen4 on the AIMB-788E-1
version), 1 PCIe x1 Gen4 expansion slot.
• USB 3.2/2.0: 6 USB 3.2 Gen 1 ports (4 rear, 2 via
header), 7 USB 2.0 ports (4 rear, 2 via header, 1 internal
Type-A).
• Serial port: Six serial ports: COM1, COM2 and COM4 ~
6 are RS-232; COM3 is RS-232/422/485 with jumper and
BIOS menu options.
• SPI interface: Advantech-designed SPI connector sup-
ports optional dTPM 2.0 module.
• Watchdog timer: 255 timer level intervals.
Graphics Interface
• Chipset: CPU integrated graphics controller.
• Display memory: 1 GB maximum shared memory with 2
GB and above system memory installed.
• DisplayPort: Resolution up to 4096 x 2304 @ 60 Hz
refresh rate.
• HDMI: Resolution up to 3840 x 2160 @ 30 Hz refresh
rate.
• VGA: Resolution up to 1920 x 1200 @ 60 Hz refresh rate.
Ethernet Interface
• Interface: 10/100/1000 Mbps.
• Controller: LAN1: Intel
Mechanical and Environmental
• Dimensions (L x W): 304.8 x 244 mm (12" x 9.6")
• Power consumption: Intel® Core™ i 65W; DDR5 32
GB x 4
Maximum: +3.3 V at 1.54 A, +5 V at 1.96 A, +12 V at 0.07
A, +5 Vsb at 0.08 A, -12 V at 0.04 A, -5 V at 0.01 A
• Operating temperature: 0 ~ 60°C (depending on CPU
loading and thermal solution)
• Weight of board: 0.7 kg (1.54 lb)
1st Edition
April 2024
I219-LM; LAN2: Intel
® ®
AIMB-788E Startup Manual 1
I210-AT.
