OPERATION AND MAINTENANCE INSTRUCTIONS
FOR 45400 SERIES ROOF TOP AIR CONDITIONERS
AND BLUETOOTH CEILING ASSEMBLY
i. GENERAL INFORMATION
This roof mount Air Conditioner is designed to operate
from a 48VDC, 60 HZ, 1 Phase power supply.
Anytime an air conditioner is not operating properly,
the power supply should be examined by qualified
technician to verify that the Air Conditioner is receiving
the proper power supply.
The ability of the Air Conditioner to maintain the desired
inside temperature depends on the heat gain of the
recreational vehicle.
The size of the vehicle, amount of window area, amount
of insulation, direct exposure to the sun, outside
temperature and the number of people in the
recreational vehicle may increase the heat gain to such
an extent that the capacity of the Air Conditioner is
exceeded.
As a general rule, air entering the Air Conditioner will
be cooled about 15 to 20 degrees, depending on the
outside temperature and humidity conditions.
For example, if the air entering the return air grilles in
the Air Conditioner is 80 degrees F., the air leaving the
discharge grilles in the Air Conditioner will be 60 to 65
degrees F.
As long as this temperature difference is being
maintained between the return air and discharge air,
the Air Conditioner is operating at its capacity. If the
desired inside temperature (normally 80 degrees F)
cannot be maintained, then the heat gain of the RV is
too great for the capacity of the Air Conditioner.
Parking the vehicle in a shaded area, keeping windows
and doors shut and avoiding the use of heat producing
i. Pairing New Thermostat

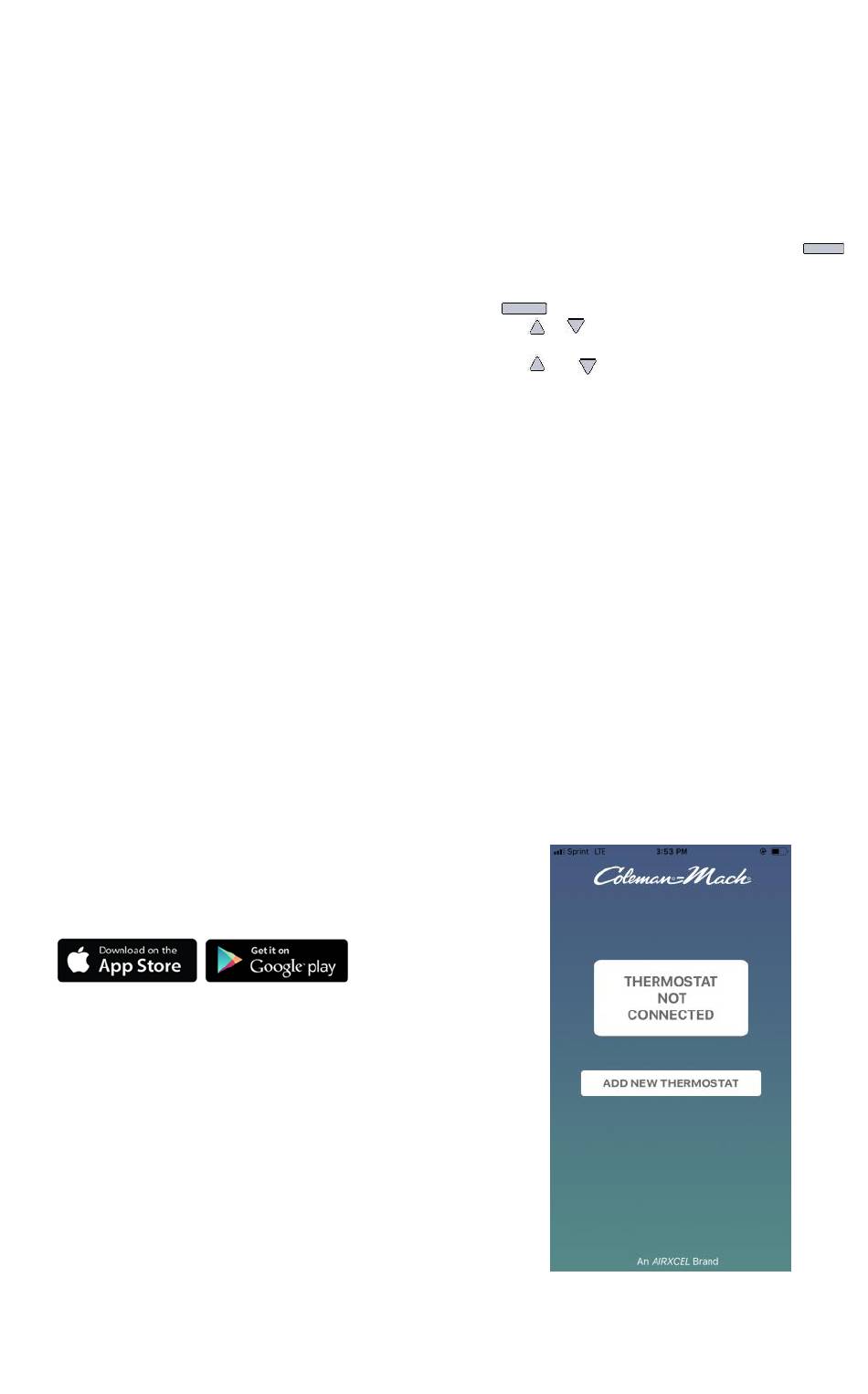

1. Download the RV Climate app to your
smart device. The app is available on the
Google Play Store and the Apple App
Store.
2. Open the RV Climate app on your smart
device and select "ADD NEW
THERMOSTAT".
3. On the ceiling assembly thermostat, hold
the UP and DOWN buttons simultaneously
for five seconds to enter the pairing mode.
On the App, select "PAIR NEW
4.
THERMOSTAT".
appliances in the vehicle will help to reduce the heat
gain. When possible, the addition of insulation and
tinted glass (especially in uninsulated vans) should be
considered.
The ceiling assembly display indicates the mode and
the room temperature. When the mode button
pressed once, the ceiling assembly display will wake
and the backlight will illuminate. When the mode
button
Press the
set temperature will display and the mode will flash.
Press the
temperature. The thermostat will return to sleep mode
after 5 seconds if no button is pressed.
There is a three minute anti-short cycle for cooling.
After the cooling system has been de-energized, the
system will not energize again for three minute, to
protect your compressor. To bypass the anti-short
cycle change the mode to OFF.
Note: Operating your cooling system when the
outdoor temperature is below 50° F can cause
damage to your cooling equipment.
Mode
Cooling (set)
Heating (set)
IX. BLUETOOTH PAIRING
10
ii. OPERATION
is pressed again, the mode will change.
or button to wake the thermostat; the
or button again to change the set
Temperature Range
Range
°F
33° F to 99° F
33° F to 99° F
is
°C
1° C to 37° C
1° C to 37° C
