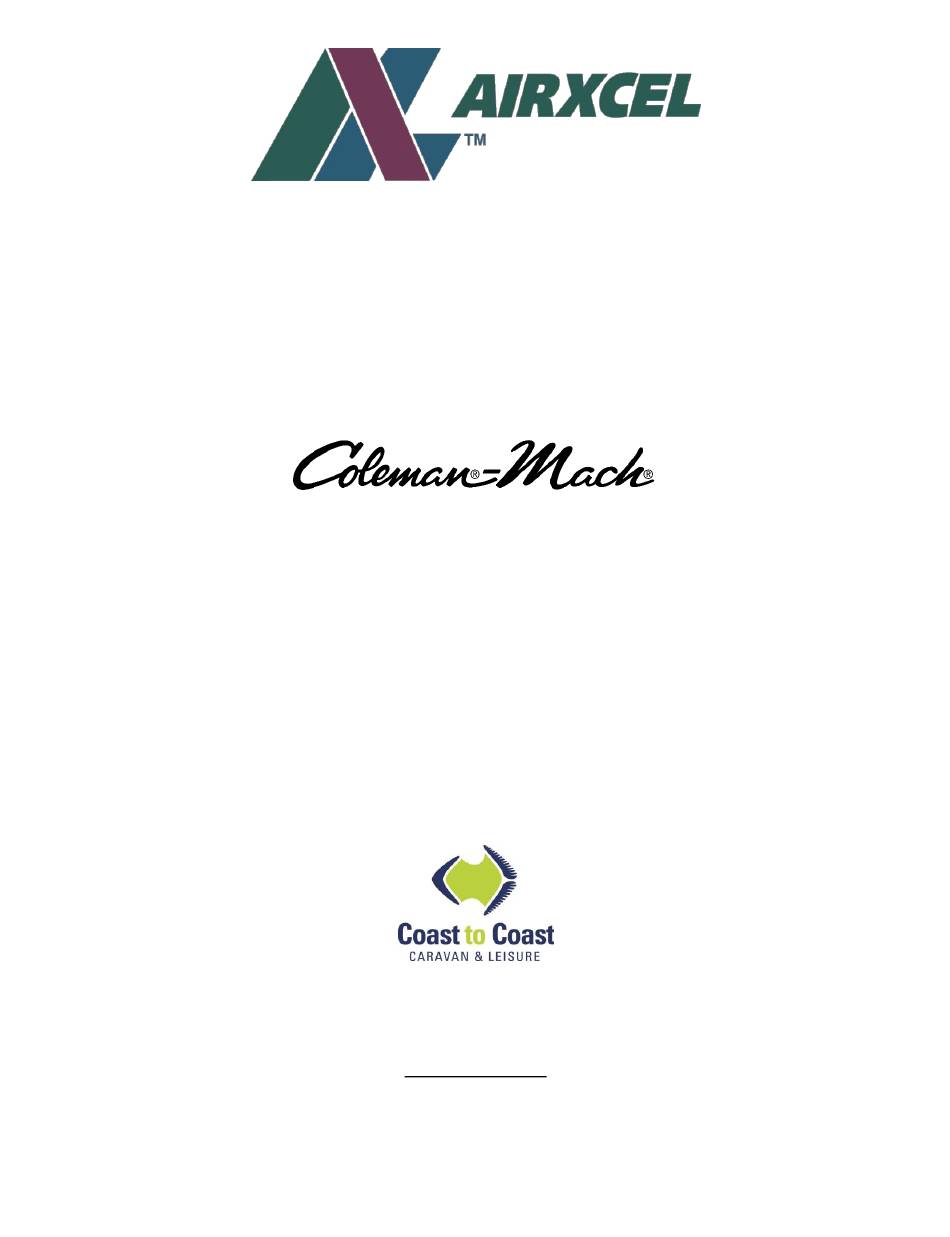

  • Page 1 RV Products Division OPERATION & MAINTENANCE INSTRUCTIONS 230/240 VAC, 1ø, 50Hz 473XX*XXX5 SERIES RV ROOF TOP AIR CONDITIONER Service Contact: Coast to Coast RV Services Pty Ltd. PO BOX 415 REGENTS PARK DC NSW 2143 Australia Tel: +61-2-9645 7600 technical@coastrv.com.au Coleman is a registered trademark of The Coleman Company, Inc.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Model and Serial Numbers ..........2 Operating Guidelines .

  • Page 3: Control Panel

    III. CONTROL PANEL This RV air conditioner is operated from the control panel located in the ceiling assembly; there are three controls on the ceiling assembly that help you control the air conditioner. They are as follows: The Selector Switch – The selector switch determines mode of operation. By rotating the selector switch, the operator can obtain any system function desired.

  • Page 4: Operation

    IV. OPERATION For Cooling (Refer to Figure 1, page 3). Turn the selector switch to the “LOW COOL” or “HIGH COOL” position. Rotate the thermostat (temperature control) to the position that is the most comfortable to you. The thermostat will turn the compressor on when the temperature of the air entering the air conditioner rises a few degrees above the setting you have selected.

  • Page 5: Routine Maintenance

    Position the end louvers to the desired amount of discharge air flow. Discharge air temperature can be controlled to some extent by opening or closing the louvers. When the louvers are closed, the warmest localized discharge air is achieved. Fully opened louvers will throw the warm discharge air to the back and front of the vehicle for more efficient circulation and faster warm-up.
  • Page 6 Cleaning and/or changing the filters: Pull down on the grille tabs until they snap out of place to remove the grilles from the ceiling assembly (See Figure 2). Lower the grille and filters from the ceiling assembly. Take filters out and either clean or exchange them with other filters (See Figure 2). Note: If replacement filters are necessary, the filters can be purchased from your local dealer or distributor.
  • Page 7 The ceiling assembly and the outside shroud can be cleaned with a damp cloth. When required, a mild detergent can be used. There are two washable filters in the ceiling assembly; one behind each return air louver. To access the filters, pull on the tabs on the return air grilles.

  • Page 8: Warranty

    VI. WARRANTY Coast RV Pty Ltd trading as Coast to Coast RV Services ABN 49 097 104 492 – CAN 101 461 330 PO Box 415, Regents Park NSW 2143 AUSTRALIA Ph (02) 9645 7600 – Fax (02) 9645 7699 Email: warranty@coastrv.com.au Web:...
  • Page 9 RESPONSIBILITY FOR COSTS OF CLAIM UNDER THIS WARRANTY The Supplier is responsible for the costs directly associated with repairing or replacing the Goods in accordance with clause 2.1 only. Any works required to be completed in addition to fixing the Defect are the responsibility of the Client. Additional works includes any costs associated with any testing or repair of the Goods or any goods to which they are fitted, undertaken by a third party in relation to any defect without prior authorisation from the Supplier.
  • Page 10 WARRANTY CLAIM FORM Warranty Providers Name: Coast RV Pty Ltd trading as Coast to Coast RV Services ABN 49 097 104 492 – I 101 461 330 Warranty Providers Address: PO Box 415 Regents Park NSW 2143 Australia OR; PO Box 58-054 Botany AUCKLAND 2163 New Zealand Client: Contact No.
  • Page 11 RV Products Division Airxcel, Inc. RV Products Division P.O. Box 4020 Wichita, KS 67204 1976-671 Rev. 1 (3-15) PP “More information https://www.caravansplus.com.au"...
